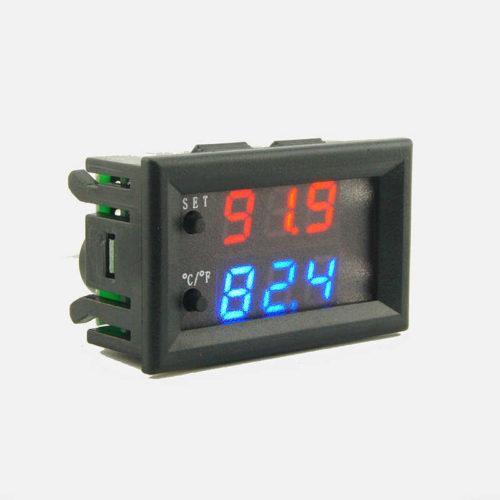

W1209WK LED Digital Thermostat Temperature Control

Features:


• Color: Black

• Temperature measurement range: -50 ~110°C

• Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other temperature range)

• Measurement accuracy: ±0.1°C

• Control accuracy: 0.1°C

• Return difference accuracy: 0.1°C

• Refresh rate: 0.5S

• High-temperature protection: 0-110°C

• Input voltage: DC 12V

• Measuring inputs: NTC(10K0.5%)Waterproof type sensor

• Output: 1 way 20A relay

• Environmental requirements: -10-60°C , humidity 20% -85%RH

• Size: 48mm(L)*29mm(W)*32mm(Depth)

• Hole size: 46*26.5mm

• Power consumption: Static current: ?35MA,attract current: ?65MA

• Power supply: 12V 200MA


Packages Include:
