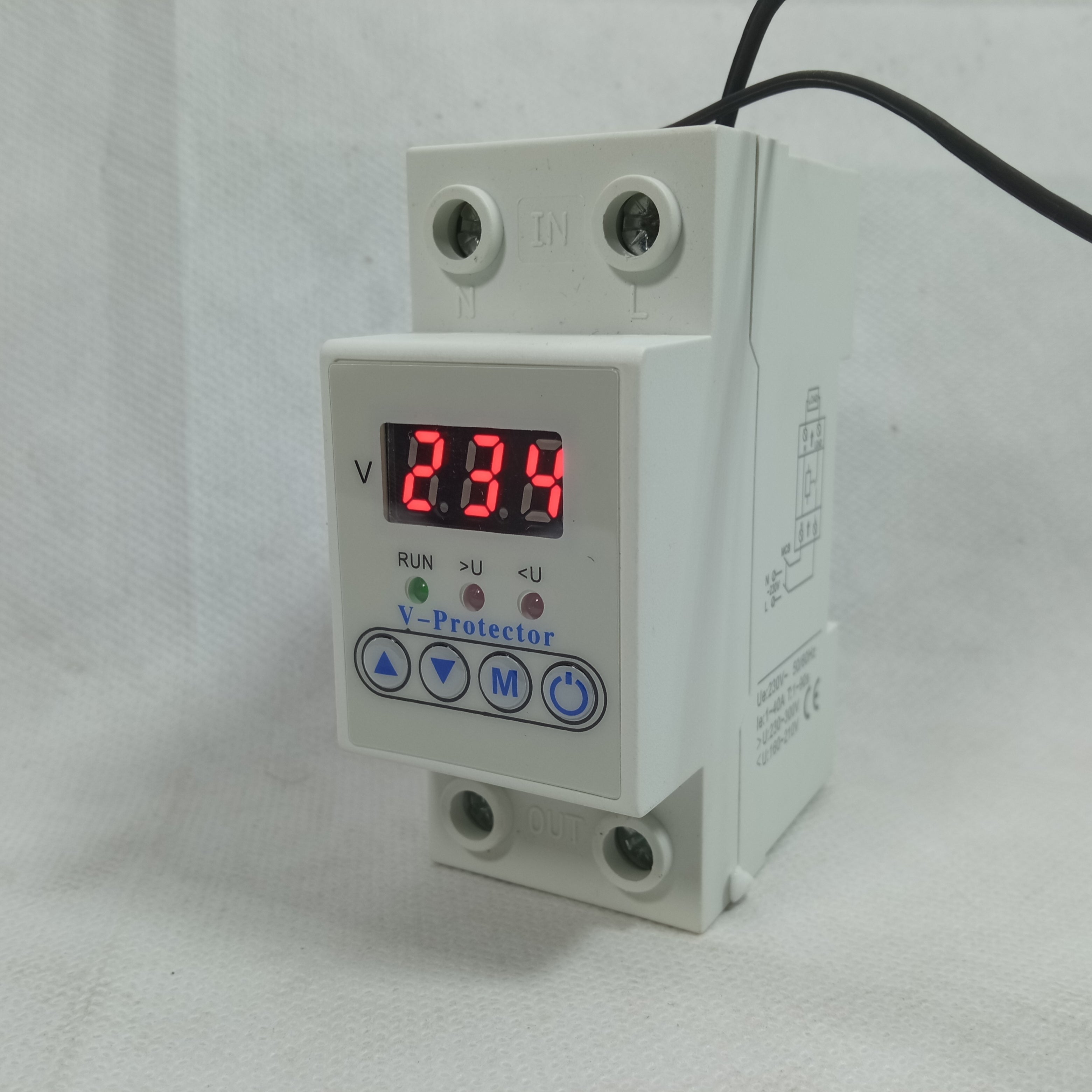

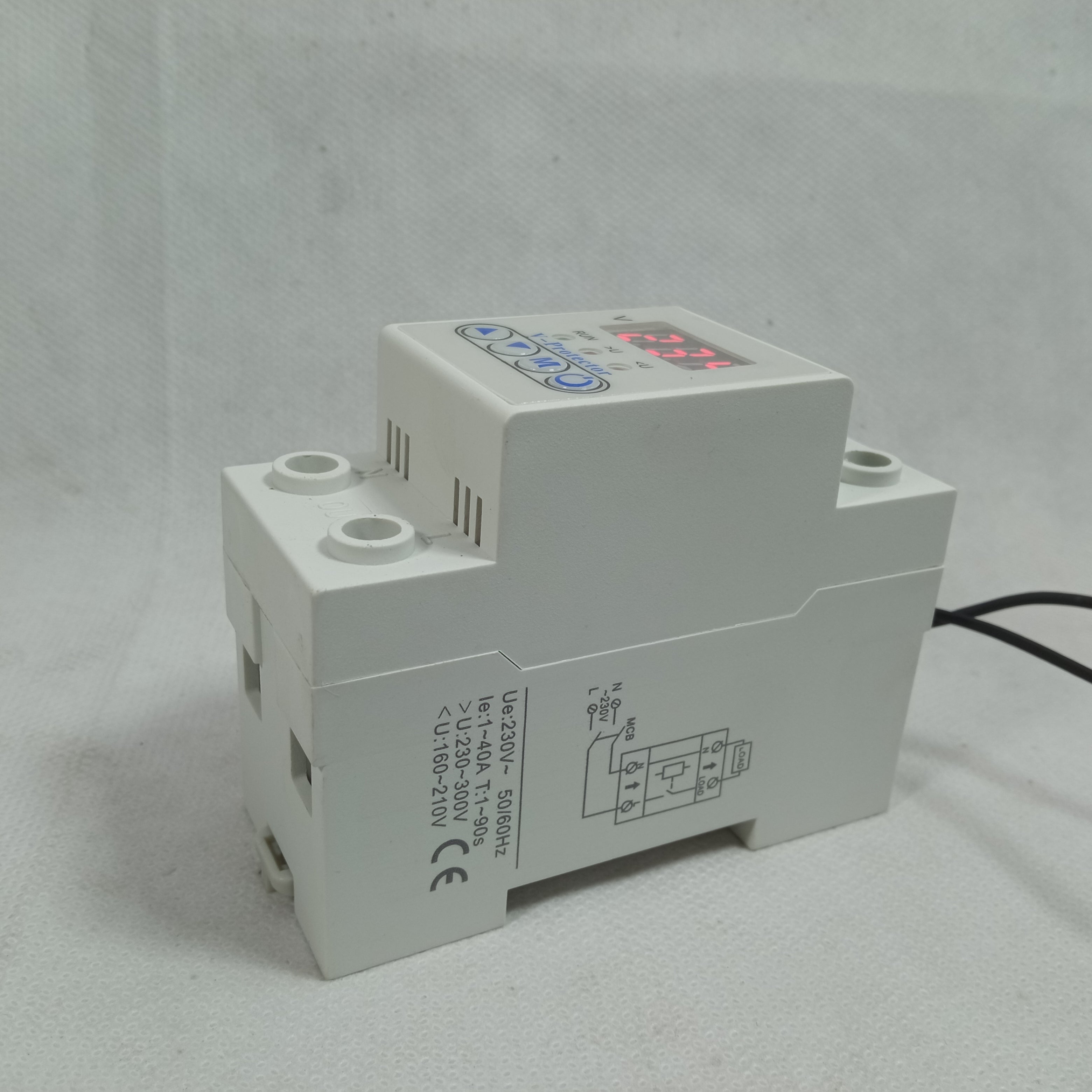

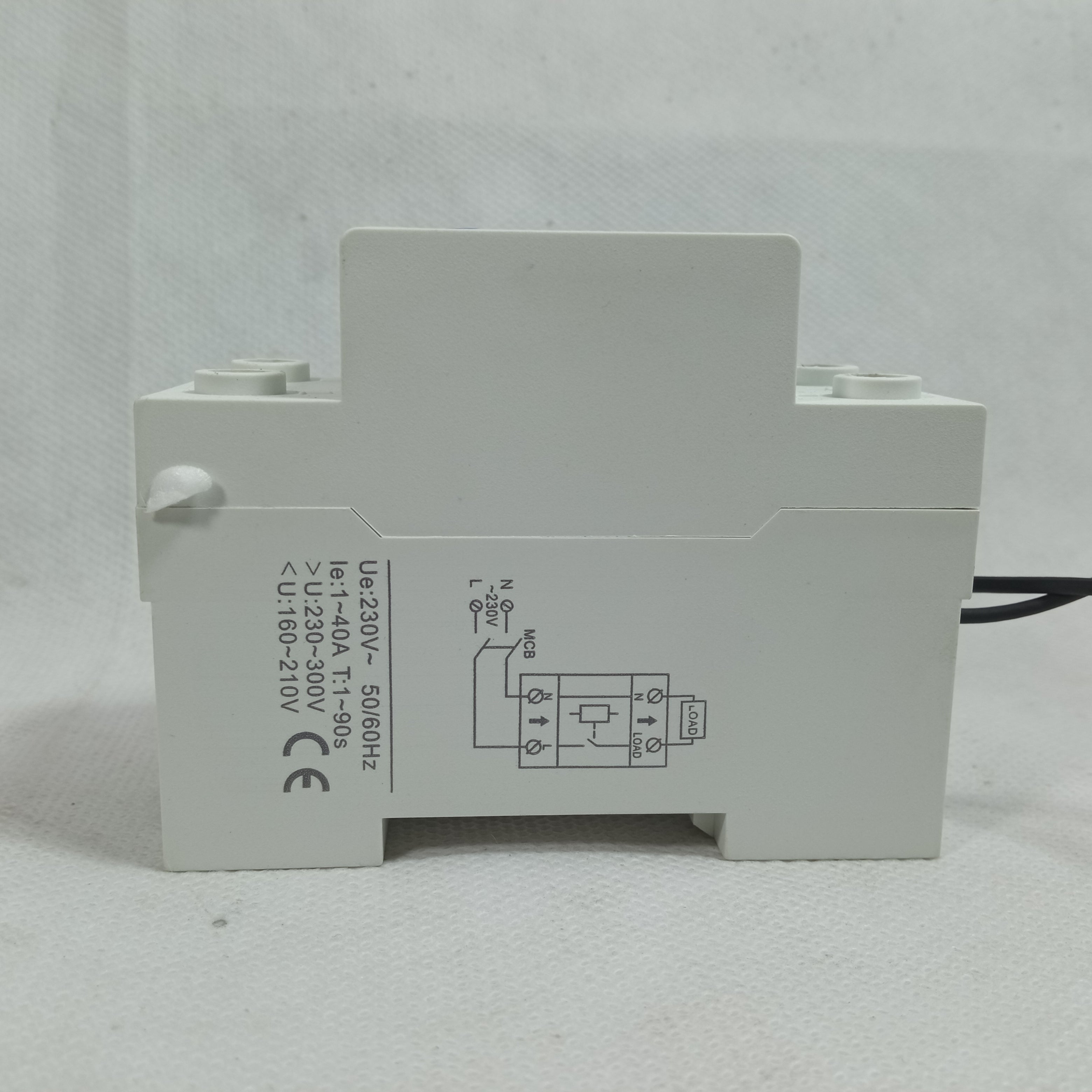

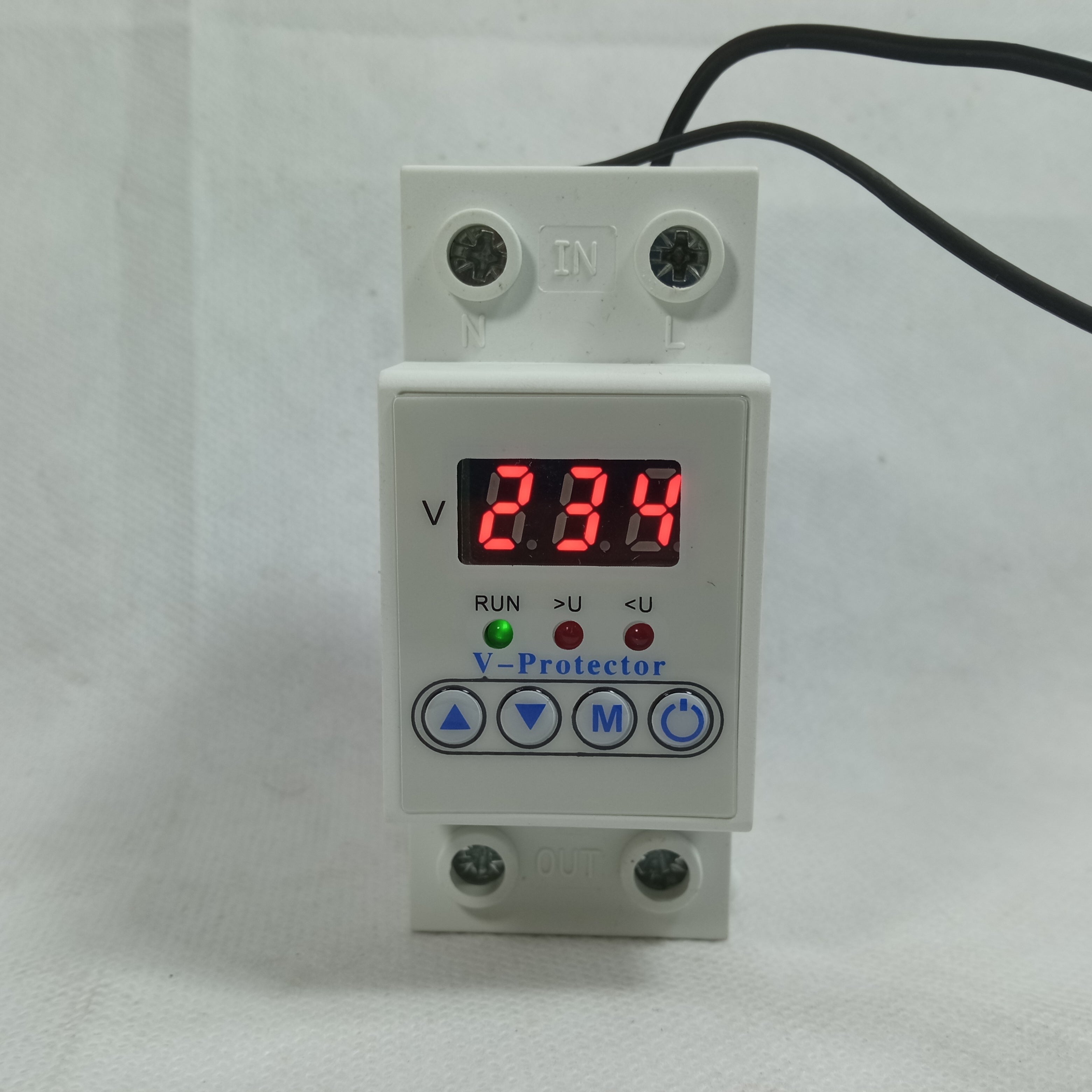

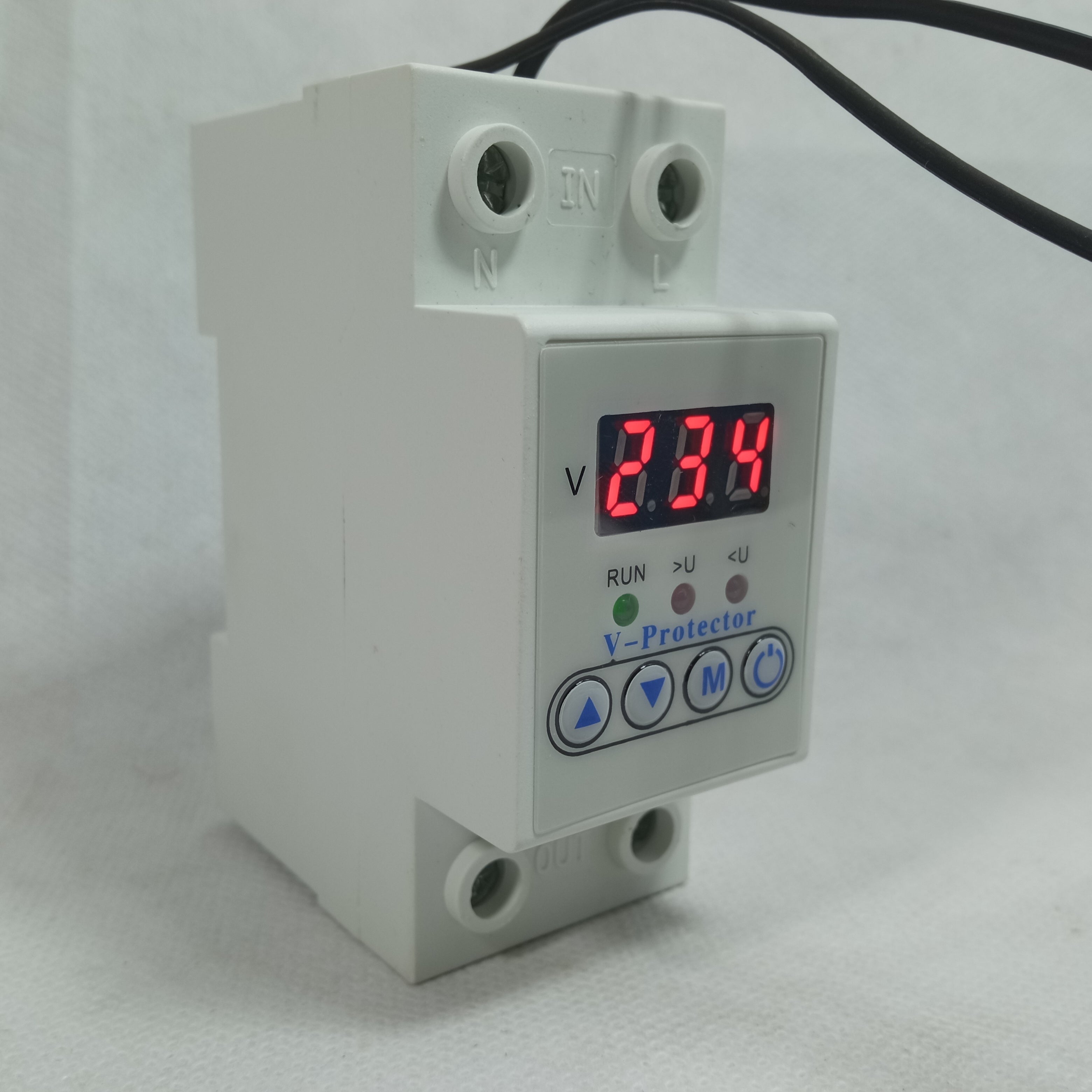

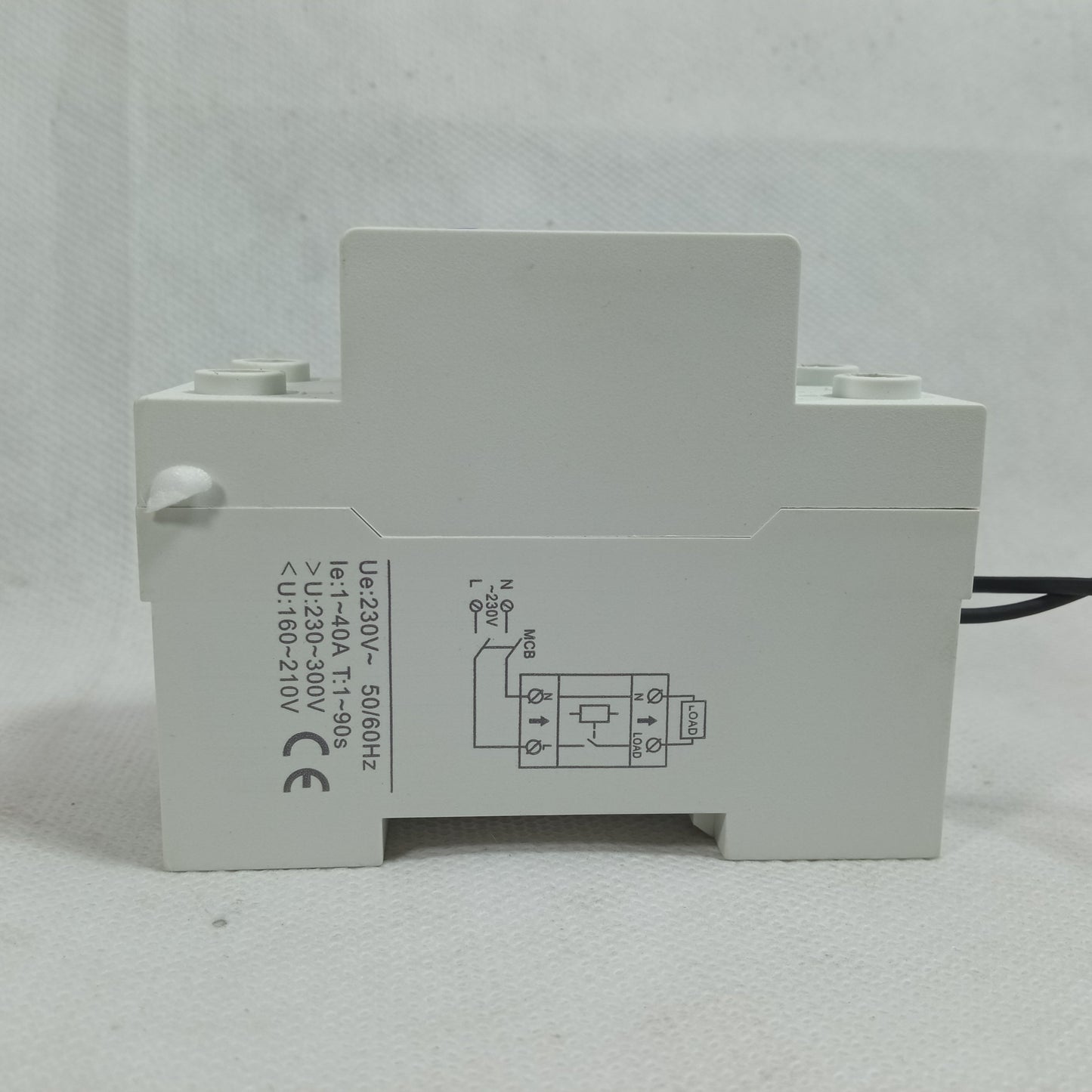

V-Protector, protector Vp-40A, overvoltage protector,under-voltage protector  BR2012

Description

• Electrical Parameter:
• Rated working voltage : AC 230V/50Hz
• Rated working current : 40A
• Maximum short circuit withstand current 3000A below 40A, 4500A above 50A (action time 10ms)
• Over voltage protection value : AC 230V-AC275V , factory default 275V
• Under voltage protecton value : AC 160V-AC210V , factory default 175V
• Automatic closing delay : 0-30s , factory default 30s
• Action time : 0-30s , factory default 30s
• Own power consumption : ≤ 1.5w
• Motor mechanical life : ≥ 100,000 times
• Dimensions : 80*37*66mm (L*W*H)
• Working environment temperature range : -25 C – 55 C
• Relative humidity : 45-90% RH, 40C
• Altitude : ≤ 2000m
• Pollution level : 2 Class
•
   Digital display self-recovery overvoltage protector is mainly used for photovoltaic grid-connected, household and similar low-voltage distribution lines. V-Protector is the device that can automatically disconnect when there is over voltage, under voltage or voltage loss in the line, and automatic detection of wire voltage. It is a protector that can automatically close when the line of electricity back to normal.


Features:

 The over-voltage and under-voltage protection threshold is adjustable, which is convenient for the user to set the voltage protection range in real-time according to the power consumption environment.  It can cut off the line in time when the overvoltage occurs, and automatically connect the line after a delay when the line is restored to normal without manual operation.

Technical Parameters

1. Display range of effective voltage 70-400V

2. Withstand lightning surge voltage:5KV

Electrical parameters

• Rated working voltage: AC230V/50Hz

• Rated working current:40A and 63A

• Maximum short-circuit withstand current:3000A below 40A,4500A above 50A

• Overvoltage protection value:AC230V-AC275V,factory default 275V

• Ambient temperature

• Action time:0-30S

• Power off time:2S(set 0-180S)

• Recovery time:2S(set 0-30s)


 phase protector, phase relay, under overvoltage relay, protection, protection relay, protection device, protection relay, under over relay, under over relay, voltmeter protection, v protector, voltmeter protection, VP-40A,

Online Shopping website for V-Protector, protector Vp-40A. Here you get V-Protector, protector Vp-40A at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan and all over Pakistan.

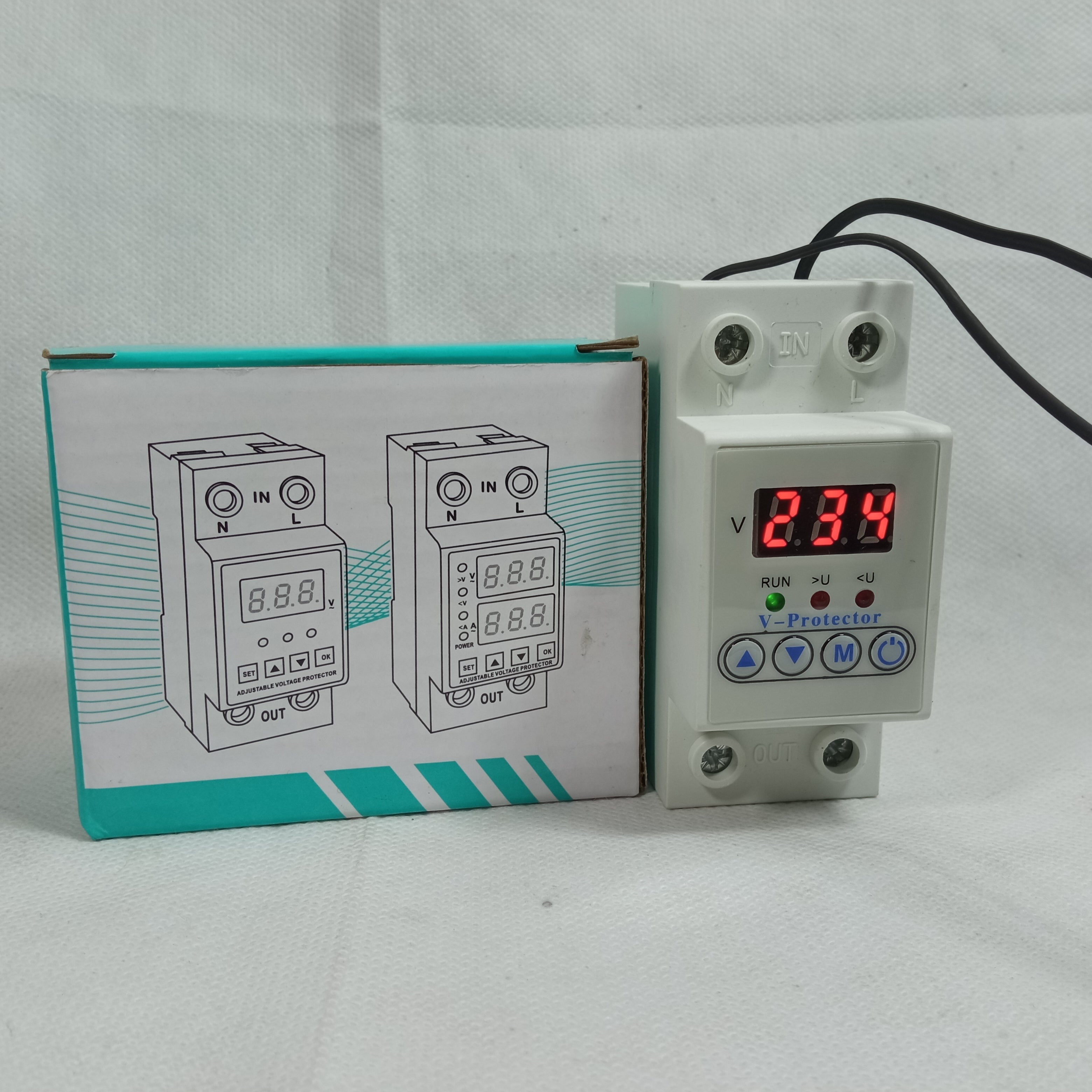

Packages Include:

 1 x V-Protector, protector Vp-40A
