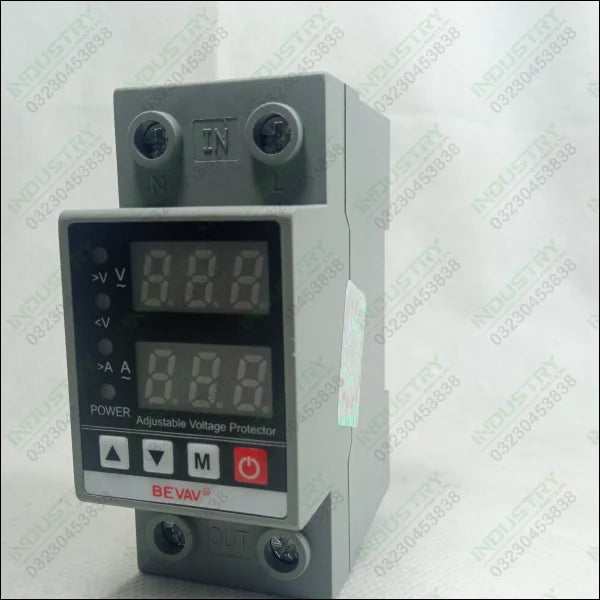

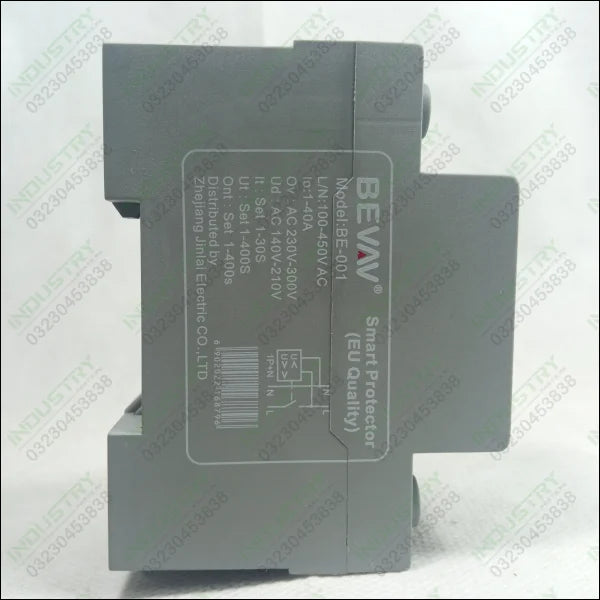

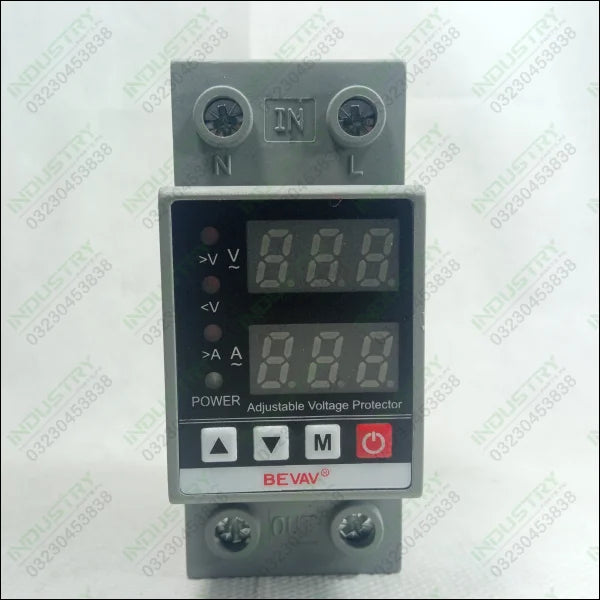

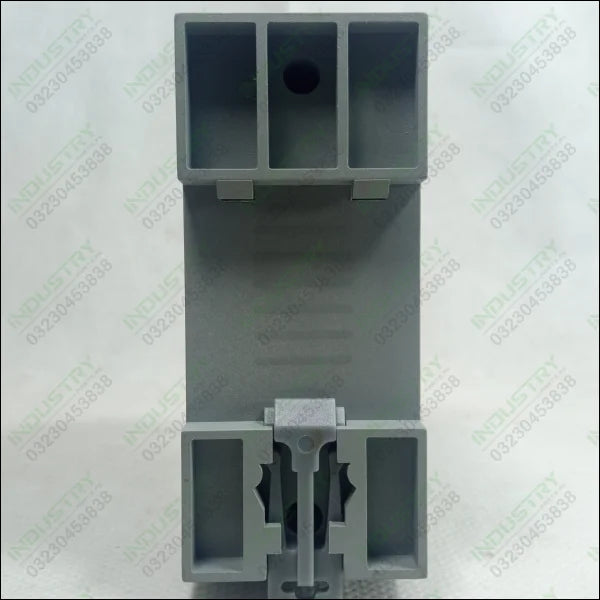

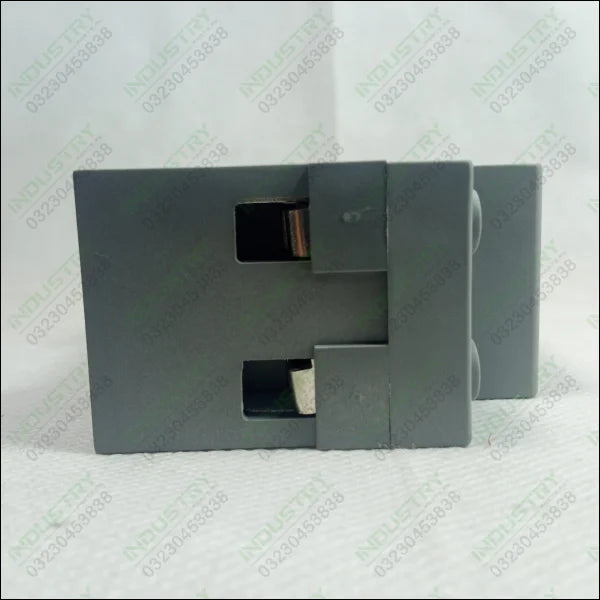

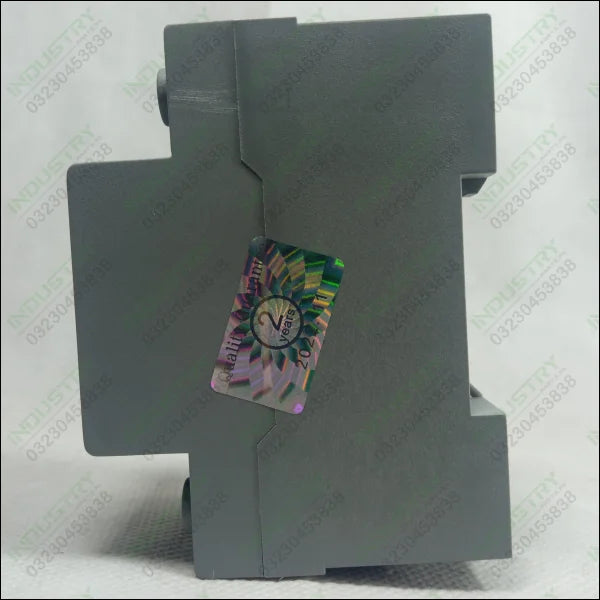

V/A Adjustable Under and Over Voltage Protector 40A in Pakistan

2 total reviews

Regular price Rs 1,350
Regular price Rs 1,950 Sale price Rs 1,350
Sale Sold out
BR3319-B101

Under and Over Voltage Protection Circuit Using Comparators. This voltage protection circuit is designed to develop a low-voltage and high-voltage tripping mechanism to protect a load from damage. In many homes and industries, fluctuations in AC mains supply occur frequently.

Specifications:

  • Electrical Parameter:
  • Rated working voltage: AC 230V/50Hz
  • Rated working current: 40A
  • Maximum short circuit withstand current 3000A below 40A, 4500A above 50A (action time 10ms)
  • Over-voltage protection value: 240V-300V
  • Under voltage protection value: 140V-200V
  • Automatic closing delay: 0-30s, factory default 30s
  • Action time : 0-30s , factory default 30s
  • Own power consumption: ≤ 1.5w
  • Motor mechanical life : ≥ 100,000 times
  • Dimensions: 80*37*66mm (L*W*H)
  • Working environment temperature range: -25 C – 55 C
  • Relative humidity : 45-90% RH, 40C
  • Altitude: ≤ 2000m
  • Pollution level: 2 Class

Industryparts.pk is the Best Online Shopping website for V/A Adjustable Under and Over Voltage Protector 40A. Here you get V/A Adjustable Under and Over Voltage Protector 40A at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

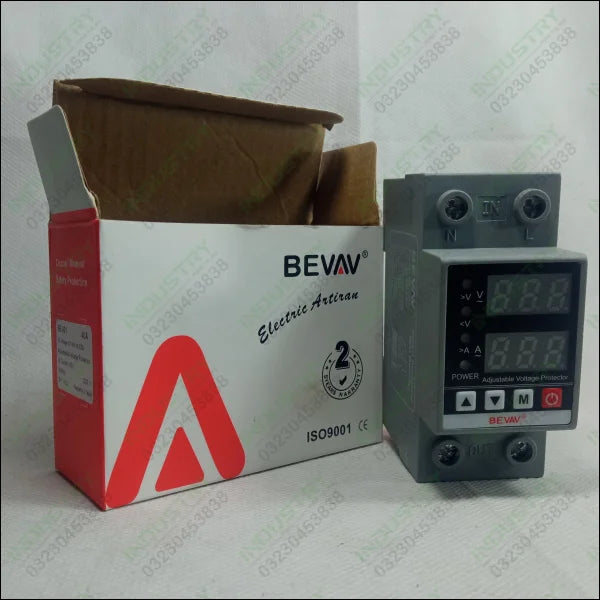

Package includes:

    1 x  V/A Adjustable Under and Over Voltage Protector 40A


Description

Under and Over Voltage Protection Circuit Using Comparators. This voltage protection circuit is designed to develop a low-voltage and high-voltage tripping mechanism to protect a load from damage. In many homes and industries, fluctuations in AC mains supply occur frequently.

Specifications:

  • Electrical Parameter:
  • Rated working voltage: AC 230V/50Hz
  • Rated working current: 40A
  • Maximum short circuit withstand current 3000A below 40A, 4500A above 50A (action time 10ms)
  • Over-voltage protection value: 240V-300V
  • Under voltage protection value: 140V-200V
  • Automatic closing delay: 0-30s, factory default 30s
  • Action time : 0-30s , factory default 30s
  • Own power consumption: ≤ 1.5w
  • Motor mechanical life : ≥ 100,000 times
  • Dimensions: 80*37*66mm (L*W*H)
  • Working environment temperature range: -25 C – 55 C
  • Relative humidity : 45-90% RH, 40C
  • Altitude: ≤ 2000m
  • Pollution level: 2 Class

Industryparts.pk is the Best Online Shopping website for V/A Adjustable Under and Over Voltage Protector 40A. Here you get V/A Adjustable Under and Over Voltage Protector 40A at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

    1 x  V/A Adjustable Under and Over Voltage Protector 40A
