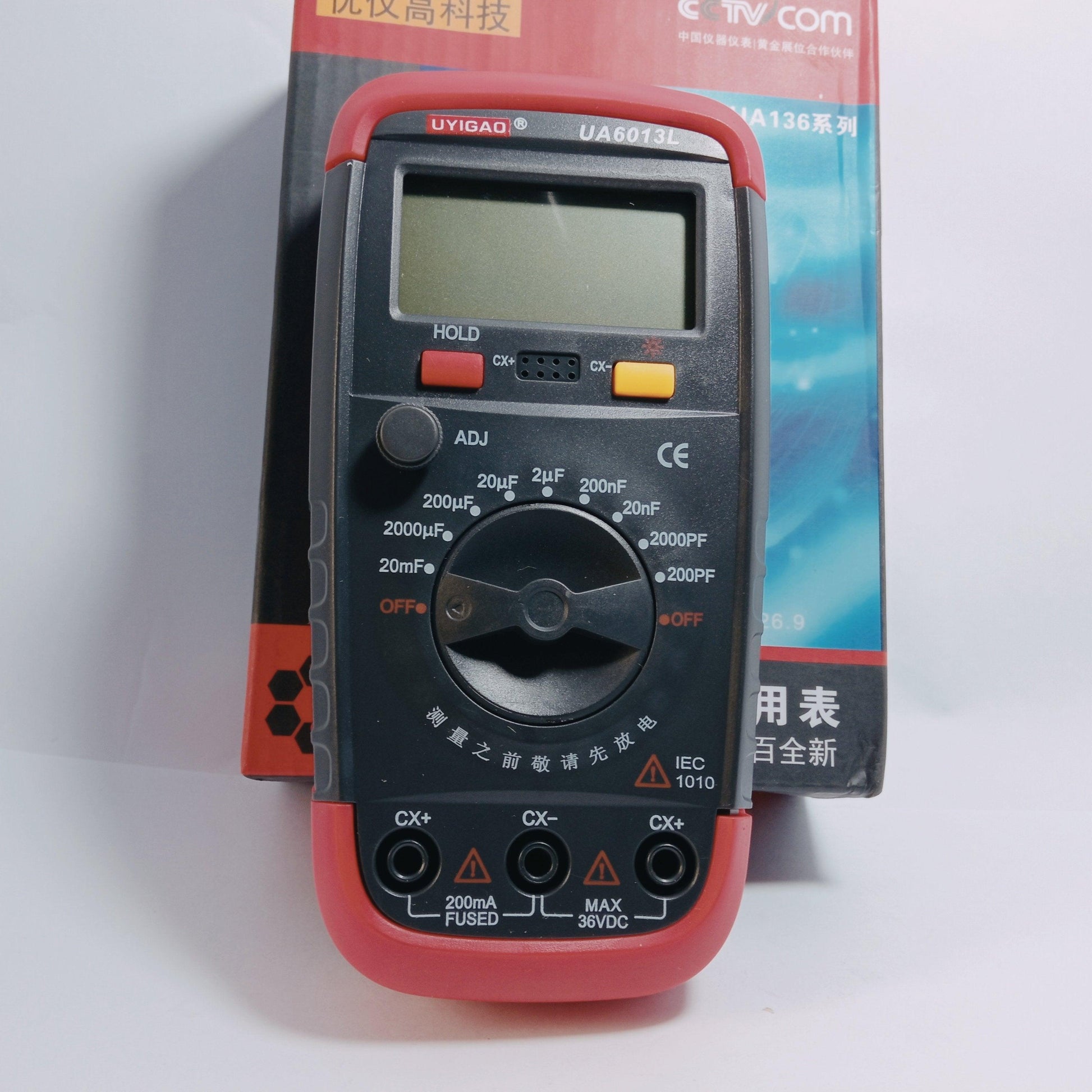

Digital Capacitance Meter is a precision instrument capable of measuring a wide range of capacitance values. It covers the range of low-value ceramic and styroflex capacitors to the high-value range of electrolytes. The instrument uses solid state, low drift circuitry to ensure a stable reading and high accuracy.

Features:

1. This meter can be used to measure the capacitance of the cable and switch.
2. Applied with CMOS double-bevel A/D converter that is automatic in zeroing and polar selection.
3. Wide measuring range, data hold function, it is more practical.
4. Large LCD display with white backlight, easy to read.
5. Maximum display value: 1999(3 1/2).
6. Low battery indication

Specifications:

• Measuring Range: 200pF / 2nF / 20nF / 200nF / 2μF / 20μF / 200μF / 2000μF / 20mF
• Accuracy: ±0.5%±20digit(200pF/2nF/20nF/200nF/2μF/20μF/200μF) / ±2.0%±20digit(2000μF) / ±4.0%±20digit(20mF)
• Resolution: 0.1pF / 1pF / 10pF / 0.1nF / 1nF / 10nF / 0.1μF / 1 μF / 10μF
• Testing Frequency: 800Hz(200pF/2nF/20nF/200nF/2μF) / 80Hz(20μF) / 8Hz(200μF/2000μF/20mF)
• Power Supply: 1 * 9V Battery (not included)
• Item Size: 14.5 * 7 * 3cm / 5.7 * 2.7 * 1.2in
• Item Weight: 144g / 5.1oz
• Package Size: 19.5 * 11 * 5cm / 7.7 * 4.3 * 2in
• Package Weight: 215g / 7.6oz

Package Includes:

      1 x UYIGAO UA6013L High Precision Digital LCD Capacitance Meter Tester
