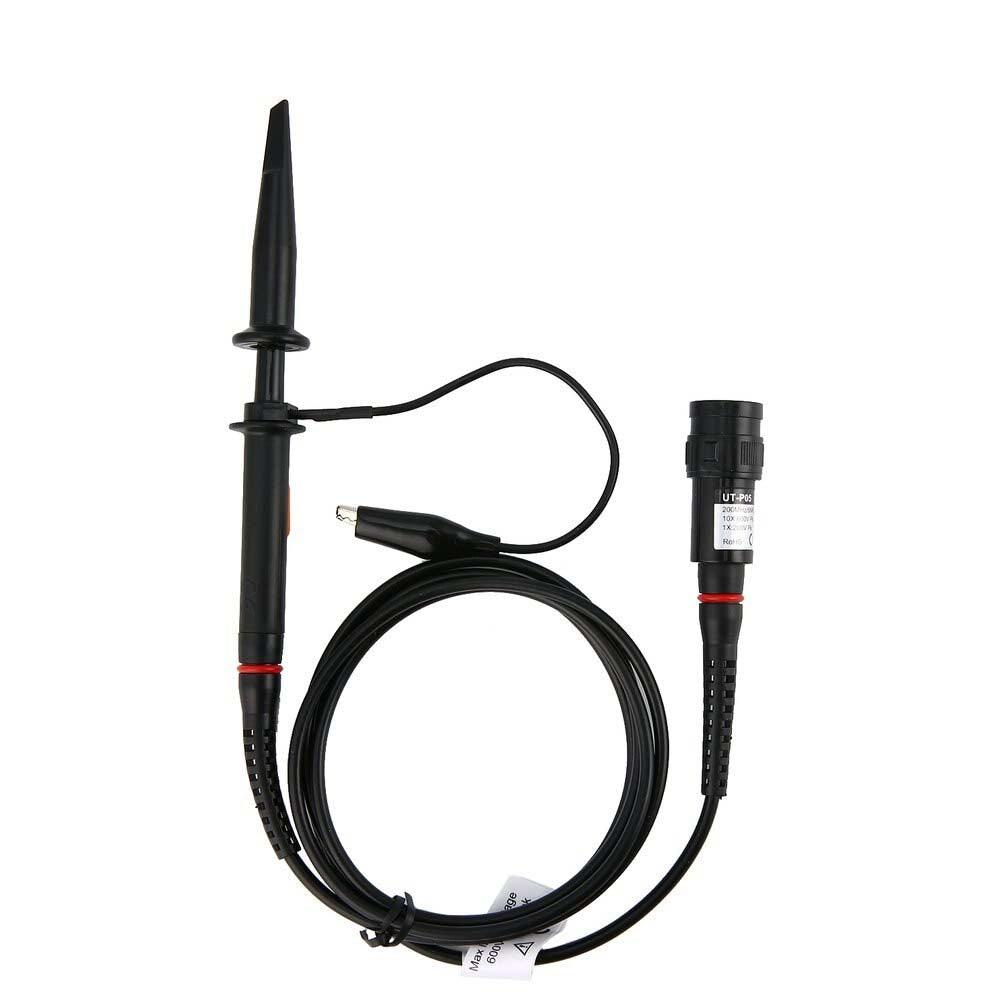

UTP-05 200 MHZ OSCILOSCOPE PROBE in Pakistan

Regular price Rs 2,700
Regular price Rs 3,000 Sale price Rs 2,700
Sale Sold out
BR3303

An oscilloscope probe is a device that makes a physical and electrical connection between a test point or signal source and an oscilloscope. Depending on your measurement needs, this connection can be made with something as simple as a length of wire or with something as sophisticated as an active differential probe.

Specifications:

  • Brand: UNI-T
  • Model: UTP05
  • Color: Black
  • Material: ABS
  • Bandwidth: 200MHz
  • Input impedance: 1x:1Mohm, 10x:10Mohm
  • Input capacitance: 1x:85pF~115pF, 10x:18.5pF~22.5pF
  • Compensation range: 15pF30pF
  • System bandwidth: DC-6MHz, DC~200MHz
  • Input voltage: 600V DC+ AC pk
  • Operating temperature: -10’C~50’C
  • Storage temperature: -20’C~75’C
  • Relative humidity: <=85%

Package Includes:

1 x UTP-05 200 MHZ OSCILLOSCOPE PROBE

Industryparts.pk is the Best Online Shopping website for UTP-05 200 MHZ OSCILLOSCOPE PROBE. Here you get UTP-05 200 MHZ OSCILLOSCOPE PROBE at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
