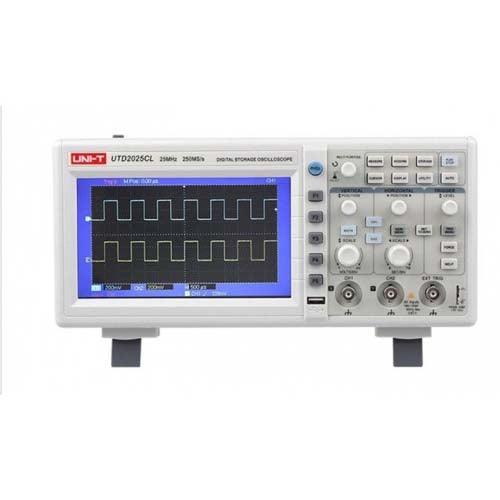

UNI-T UTD2025CL oscilloscope in Pakistan

Regular price Rs 0
Regular price Sale price Rs 0
Sale Sold out
BR1024-W

The UNI-T UTD2025CL Oscilloscope is ideal for beginners or students at school because of the basic specifications. It has 2 analog channels with high sensitivity and it can process signals with a frequency up to 25MHz. The oscilloscope has digital storage and it supports plug-and-play USB storage devices. Although the memory size is a bit low it will be fast enough for your basic measurements.

The oscilloscope has an unknown price-quality ratio for 2 channels and a bandwidth of 25MHz.

Features:

  • Dual analog channels width range 1mV/div~20V/div;
  • 7 inches widescreen LCD displays;
  • Special Print Screen Feature;
  • Supports plug-and-play USB storage device. Communication with and remote control of the computer through the USB device;
  • USB drive system software upgrade;
  • Storage of waveforms setups and interfaces waveforms and setups reproduction;
  • Automatic measurement of 28 waveform parameters;
  • Unique waveform recording and replay function;
  • Multilingual menu displays.

Specification:

  • Specification UTD2025CL
  • Channels 2
  • Bandwidth 25MHz
  • Sample Rate 250MS/s
  • Rise Time ?14ns
  • Memory Depth 25kpts
  • Waveform Acquisition Rate ?2000wfms/s
  • Vertical Sensitivity 1mV/div~20V/div
  • Timebase Range 10ns/div~50s/div
  • Storage Setup, Wave, Bitmap
  • Trigger Modes Edge, Pulse, Video, Alternate
  • Interface USB OTG,Pass/Fail
  • General Characteristic
  • Power 100-240VAC, 40-440Hz
  • Display 7 Inches 64K Color TFT LCD, 400×240
  • Product Color White and Gray
  • Product Net Weight 2.2 kg
  • Product Size (W×H×D) 306mm ×147mm × 122mm
  • Standard Accessories Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD
  • Standard Individual Packing Gift Box, English Manual
  • Standard Quantity Per Carton 2 PCs
  • Standard Carton Measurement (L×W×H) 450mm × 420mm × 280mm
  • Standard Carton Cross Weight 8.5 kg

Package includes:

 Probe×2 (1×,10× switchable),  Power Cord,  USB Cable,  PC Software CD
