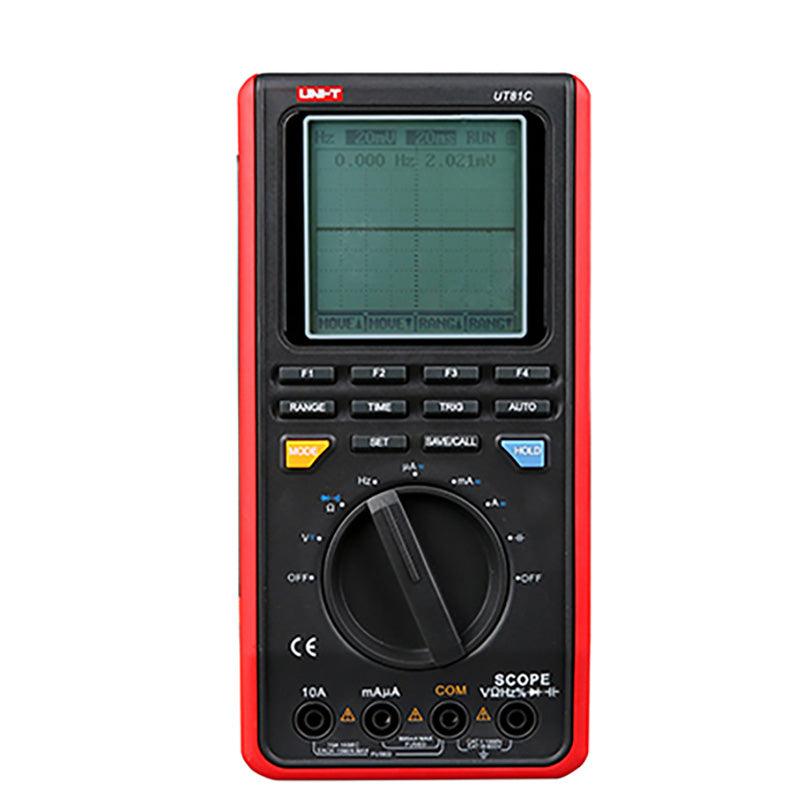

UT81C Scope Digital Multimeter in Pakistan

Regular price Rs 33,000
Regular price Rs 35,500 Sale price Rs 33,000
Sale Sold out
BR2386

UT81C Scope Digital Multimeter BR2386

 UT81 series handheld digital oscilloscope multimeters combine oscilloscope and digital multimeter in one. Oscilloscope measurement mode includes signal input, data processing, auto measure, waveform storage, and transfer.    Multimeter mode features AC/DC voltage and current, resistance, diode, continuity, frequency, duty ratio, and capacitance.    Technical Information    Specifications Range UT81C  DMM Specifications  DC voltage (V) 1000V ±(0.8%+8)  AC voltage (V) 750V ±(1%+15)  DC current (A) 10A ±(1%+8)  AC current (A) 10A ±(1.5%+8)  Resistance (?) 40M? ±(1%+5)  Capacitance (F) 100?F ±(3%+8)  Frequency (Hz) 10Hz~10MHz ±(0.1%+3)  Scope Specifications  Bandwidth ? 16MHz  Sampling rate ? 80MS/s  Vertical accuracy ? ±(5%+1)  Vertical sensitivity 20mV/div~500V/div (1-2-5) ?  Time-base accuracy ? ±(0.01%+1)  Time-base range 50ns/div - 5s/div(1-2-5)  Features  Display count ? 4000  Auto range ? ?  Duty cycle 0.1~99.9% ?  Diode ? ?  Auto power off ? ?  Continuity buzzer ? ?  Display 160 x 160 monochrome ?  Trigger types Auto run/Normal/Single shot ?  Memory 10 screens and setups ?  Contrast and brightness setup ? ?  Low battery indication ? ?  USB interface ? ?  LCD backlight ? ?  Input impedance for DCV Around 10M? ?  General Characteristics  Power 1.5V battery (R6) x 4  Display 60mm x 60mm  Product color Red and grey  Product net weight 498g  Product size 200mm x 100mm x 48mm  Standard accessories Batteries, test lead, alligator clip, USB interface cable, PC software CD  Standard individual packing Gift box, English manual  Standard quantity per carton 12pcs  Standard carton measurement 485mm x 450mm x 260mm (0.057CBM per standard carton)

Description

UT81C Scope Digital Multimeter BR2386

 UT81 series handheld digital oscilloscope multimeters combine oscilloscope and digital multimeter in one. Oscilloscope measurement mode includes signal input, data processing, auto measure, waveform storage, and transfer.    Multimeter mode features AC/DC voltage and current, resistance, diode, continuity, frequency, duty ratio, and capacitance.    Technical Information    Specifications Range UT81C  DMM Specifications  DC voltage (V) 1000V ±(0.8%+8)  AC voltage (V) 750V ±(1%+15)  DC current (A) 10A ±(1%+8)  AC current (A) 10A ±(1.5%+8)  Resistance (?) 40M? ±(1%+5)  Capacitance (F) 100?F ±(3%+8)  Frequency (Hz) 10Hz~10MHz ±(0.1%+3)  Scope Specifications  Bandwidth ? 16MHz  Sampling rate ? 80MS/s  Vertical accuracy ? ±(5%+1)  Vertical sensitivity 20mV/div~500V/div (1-2-5) ?  Time-base accuracy ? ±(0.01%+1)  Time-base range 50ns/div - 5s/div(1-2-5)  Features  Display count ? 4000  Auto range ? ?  Duty cycle 0.1~99.9% ?  Diode ? ?  Auto power off ? ?  Continuity buzzer ? ?  Display 160 x 160 monochrome ?  Trigger types Auto run/Normal/Single shot ?  Memory 10 screens and setups ?  Contrast and brightness setup ? ?  Low battery indication ? ?  USB interface ? ?  LCD backlight ? ?  Input impedance for DCV Around 10M? ?  General Characteristics  Power 1.5V battery (R6) x 4  Display 60mm x 60mm  Product color Red and grey  Product net weight 498g  Product size 200mm x 100mm x 48mm  Standard accessories Batteries, test lead, alligator clip, USB interface cable, PC software CD  Standard individual packing Gift box, English manual  Standard quantity per carton 12pcs  Standard carton measurement 485mm x 450mm x 260mm (0.057CBM per standard carton)
