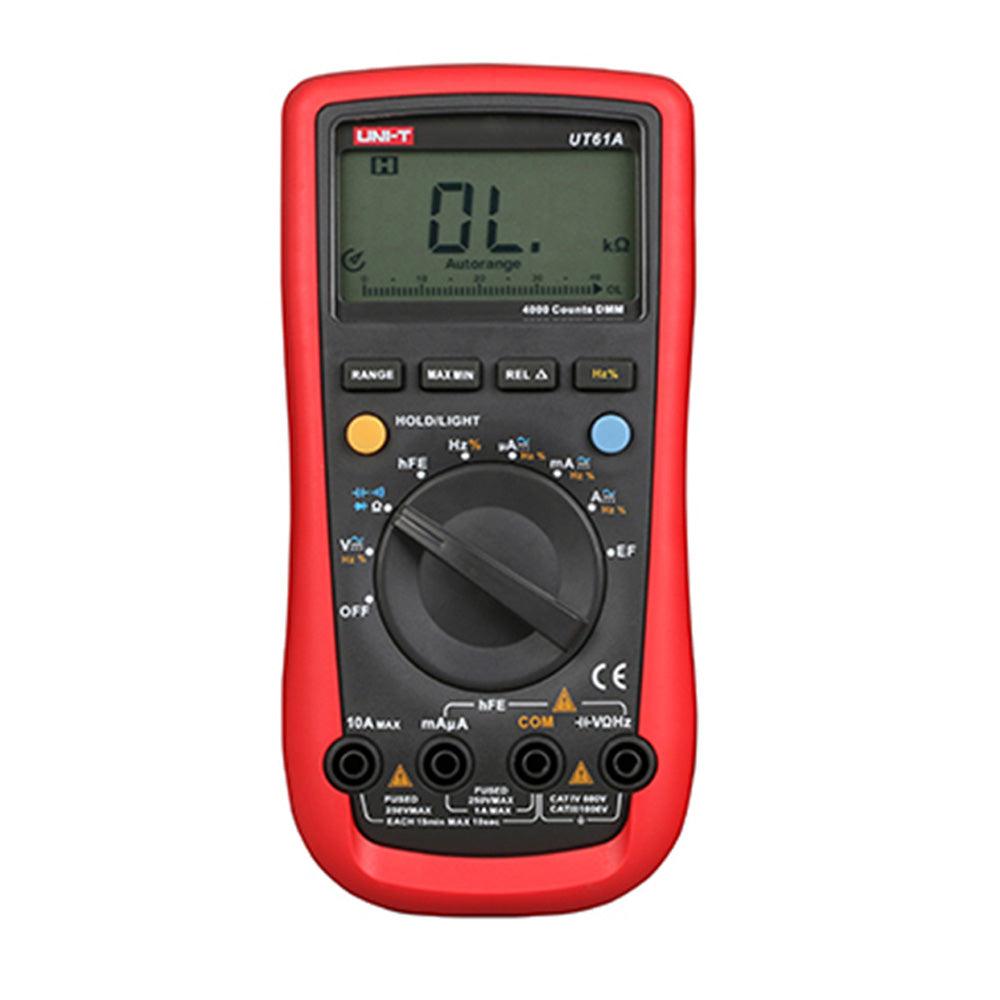

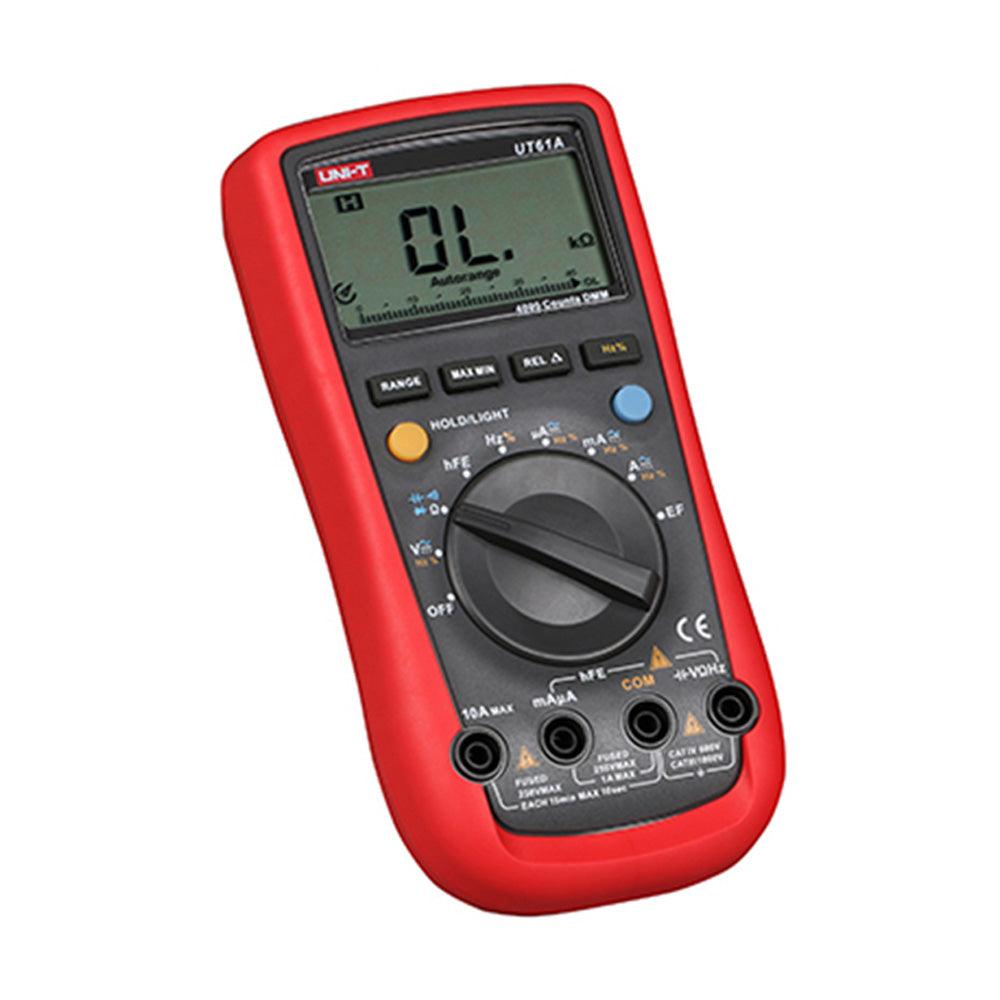

UT61A Modern LCD Digital Multimeter in Pakistan

2 total reviews

Regular price Rs 0
Regular price Rs 6,500 Sale price Rs 0
Sale Sold out
BR1459

UT61A Modern LCD Digital Multimeter series digital multimeter has high reliability, high security, automatic range, a handheld multimeter, etc. It has a large digital screen and high-resolution analog display synchronous pointer, a full range of overhead protection, and a unique design appearance making it become another excellent performance of a new generation of practical electric instruments.

Specifications:

  • Basic Functions gamma better accuracy
  • DC Voltage Measurement 400mV
  • 4 V / 40 V / 400 V
  • 1000 V +/- (0.8% + 3)
  • +/- (0.5% + 1)
  • +/- (1% + 3)
  • AC Voltage Measurement 400mV
  • 4 V / 40 V / 400 V
  • 750 V +/- (1.2% + 5)
  • +/- (1% + 3)
  • +/- (1.2% + 5)
  • AC Current Measurement 400.0 m A / 4000 m a
  • 40.00mA / 400.0mA
  • 4.000A / 10.00A +/- (1.2% + 5)
  • +/- (1.5% + 5)
  • +/- (2% + 5)
  • DC Current Measurement 400.0 m A / 4000 m a
  • 40.00mA / 400.0mA
  • 4.000A / 10.00A +/- (1% + 2)
  • +/- (1.2% + 3)
  • +/- (1.5% + 3)
  • Resistance measurement 400 . 0 W
  • 4.000 k W / 40.00 k W / 400 k W
  • 4.000 M W
  • 40.00 M W +/- (1.2% + 2)
  • +/- (1% + 2)
  • +/- (1.2% + 2)
  • +/- (1.5% + 2)
  • measuring capacitance 40.00nF
  • 400.0nF / 4 . 000 m F / 4 0.00 m F
  • 400 . 0 m F
  • 400 0 m +/- (3% + 5)
  • +/- (3% + 5)
  • +/- (4% + 5)
  • only reference
  • Frequency 10Hz-10 MHz +/- (0.1% + 4)
  • frequency 0 45 ~ 400Hz
  • Duty Cycle 0.1% ~ 99.9% Yes
  • Special functions
  • Varying Manual Yes
  • Diodes Yes
  • EF function Yes
  • Audion 1000 & szlig; Yes
  • Buzzer continuity Yes
  • Holds data Yes
  • Max / Min Mode Yes
  • Display Backlight Yes
  • REL Yes
  • Sleep mode for about 15 minutes
  • Analog Bar Chart 41 Yes
  • RS232 (USB))
  • fuse Yes
  • Input Impedance for DC Voltage Measurement around 10 M Yes
  • Low battery display <7.5 V Yes

Package Includes:

1 x UT61A Modern LCD Digital Multimeter

Industryparts.pk is the Best Online Shopping website for UT61A Modern LCD Digital Multimeter. Here you get UT61A Modern LCD Digital Multimeter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Description

UT61A Modern LCD Digital Multimeter series digital multimeter has high reliability, high security, automatic range, a handheld multimeter, etc. It has a large digital screen and high-resolution analog display synchronous pointer, a full range of overhead protection, and a unique design appearance making it become another excellent performance of a new generation of practical electric instruments.

Specifications:

  • Basic Functions gamma better accuracy
  • DC Voltage Measurement 400mV
  • 4 V / 40 V / 400 V
  • 1000 V +/- (0.8% + 3)
  • +/- (0.5% + 1)
  • +/- (1% + 3)
  • AC Voltage Measurement 400mV
  • 4 V / 40 V / 400 V
  • 750 V +/- (1.2% + 5)
  • +/- (1% + 3)
  • +/- (1.2% + 5)
  • AC Current Measurement 400.0 m A / 4000 m a
  • 40.00mA / 400.0mA
  • 4.000A / 10.00A +/- (1.2% + 5)
  • +/- (1.5% + 5)
  • +/- (2% + 5)
  • DC Current Measurement 400.0 m A / 4000 m a
  • 40.00mA / 400.0mA
  • 4.000A / 10.00A +/- (1% + 2)
  • +/- (1.2% + 3)
  • +/- (1.5% + 3)
  • Resistance measurement 400 . 0 W
  • 4.000 k W / 40.00 k W / 400 k W
  • 4.000 M W
  • 40.00 M W +/- (1.2% + 2)
  • +/- (1% + 2)
  • +/- (1.2% + 2)
  • +/- (1.5% + 2)
  • measuring capacitance 40.00nF
  • 400.0nF / 4 . 000 m F / 4 0.00 m F
  • 400 . 0 m F
  • 400 0 m +/- (3% + 5)
  • +/- (3% + 5)
  • +/- (4% + 5)
  • only reference
  • Frequency 10Hz-10 MHz +/- (0.1% + 4)
  • frequency 0 45 ~ 400Hz
  • Duty Cycle 0.1% ~ 99.9% Yes
  • Special functions
  • Varying Manual Yes
  • Diodes Yes
  • EF function Yes
  • Audion 1000 & szlig; Yes
  • Buzzer continuity Yes
  • Holds data Yes
  • Max / Min Mode Yes
  • Display Backlight Yes
  • REL Yes
  • Sleep mode for about 15 minutes
  • Analog Bar Chart 41 Yes
  • RS232 (USB))
  • fuse Yes
  • Input Impedance for DC Voltage Measurement around 10 M Yes
  • Low battery display <7.5 V Yes

Package Includes:

1 x UT61A Modern LCD Digital Multimeter

Industryparts.pk is the Best Online Shopping website for UT61A Modern LCD Digital Multimeter. Here you get UT61A Modern LCD Digital Multimeter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
