An LCR meter is a type of electronic test equipment used to measure the inductance (L), capacitance (C), and resistance (R) of an electronic component. In the simpler versions of this instrument, the impedance was measured internally and converted for a display to the corresponding capacitance or inductance value.

Specifications:

• Specifications Range UT603
• Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+1)
• Capacitance (F) 2nF/20nF/200nF/2uF/20uF/200uF/600uF ±(1%+5)
• Inductance (H) 2mH/20mH/200mH/2H/20H ±(2%+8)
• Features
• Display count
• 2000
• Manual range
• √
• Diode
• √
• Transistor
• √
• Continuity buzzer
• √
• Low battery indication
• √
• General Characteristics
• Power 9V battery (6F22)
• Display 61mm x 32 mm
• Product color Red and grey
• Product net weight UT601/UT602: 310g, UT603: 312g
• Product size 172mm x 83mm x 38mm
• Standard accessories Battery, test leads with alligator clips, holster
• Standard individual packing Gift box, English manual
• Standard quantity per carton 20pcs
• Standard carton measurement 450mm x 330mm x 340mm (0.099CBM per standard carton)
• Standard carton gross weight 9.6kg

Package Includes:

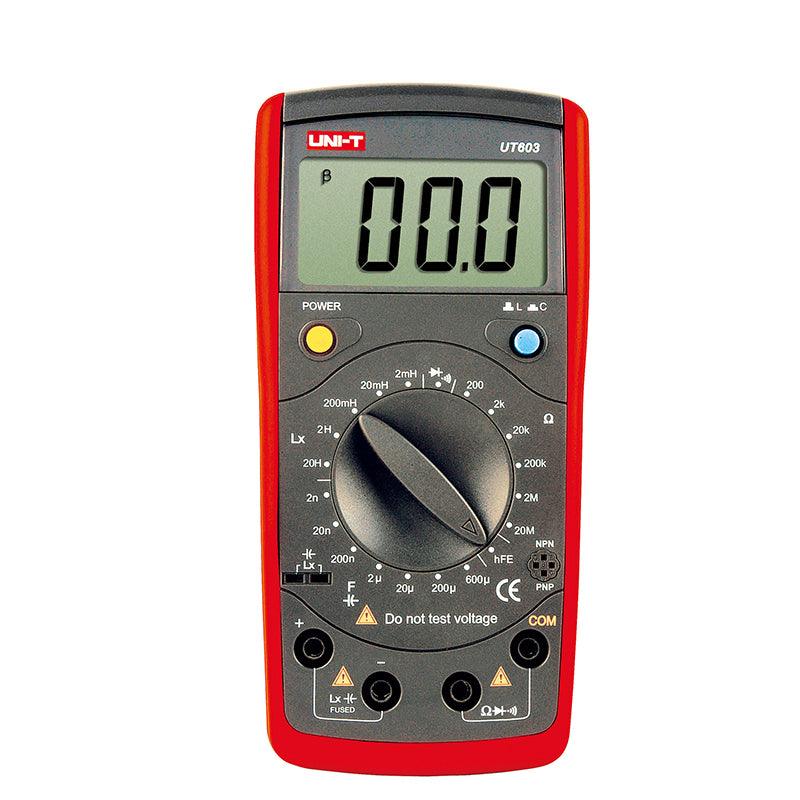

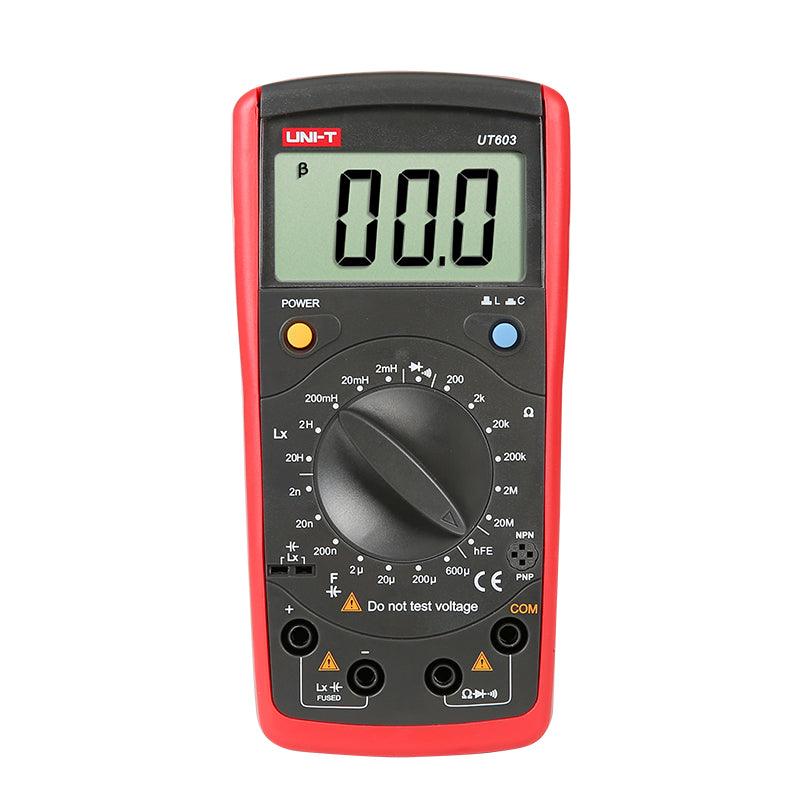

1 x UT603 LCR Meter Inductance Capacitor Meter
