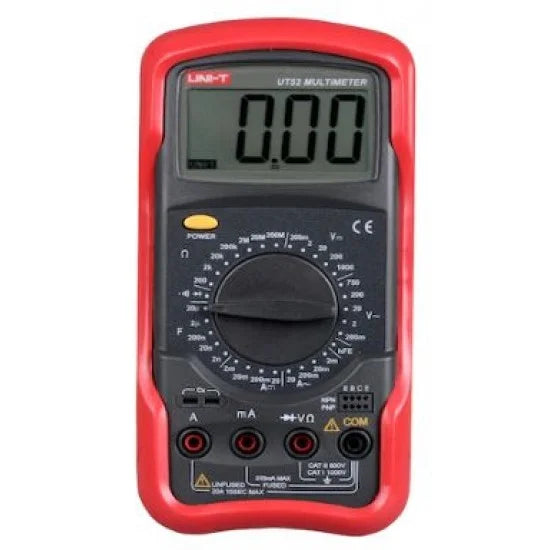

UT52 Standard Digital Multimeters in Pakistan BR2287

Description:

 UT50 series is a manual range digital multimeter. Lrage display,multi purpose use.Ac dc volts,ac dc amperes resistance and buzzer functions.

Specification:

• Model UT52

• DC Voltage (V) 200mV/2V/20V/200V/1000V ±(0.5%+1)

• AC Voltage (V) 200mV/2V/20V/200V/750V ±(0.8%+3)

• DC Current (A) 2mA/20mA/200mA/20A ±(0.8%+1)

• AC Current (A) 2mA/20mA/200mA/20A ±(1%+3)

• Resistance (?) 200?/2k?/20k?/200k?/2M?/20M?/200M? ±(0.8%+1)

• Capacitance (F) 2nF/20nF/200nF/2?F/20?F ±(4%+3)




Features:




1. Fused 10A Range

2. Transistor ?

3. Diode ?

4. Continuity Buzzer ?

5. Low Battery Display ?

6. Input Impedance for DC Voltage Measurement 10M? ?

7. Max. Display 1999 ?




General Characteristic:




• Power 9V Battery (6F22)

• LCD Size 65mm×33mm

• Optional Accessories* Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead

• Light Plus (UT-L2)




Packages Include:

 1 x UT52 Standard Digital Multimeters
