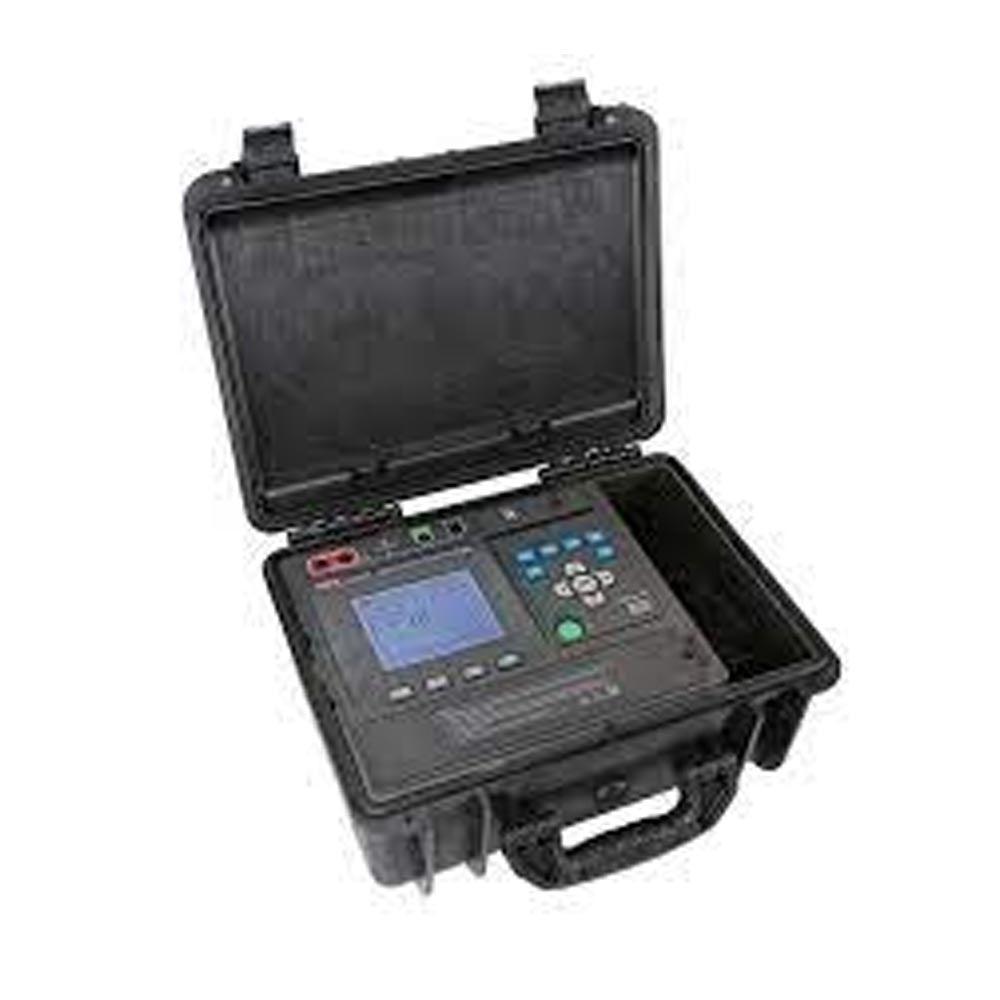

The UT516B is a digital high voltage insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V, and 12000V. Fine adjustment of voltage with 10% step at each range (except 12000V) is available. Test data can be saved in the tester memory and transferred to a PC via the dedicated USB cable, or be transferred to a PC in real-time. The tester, with high performance and easy operation, is widely used in the measurement and maintenance of power equipment and power supply circuits.

Features:

1. AC/DC voltage
2. USB data transfer
3. Low battery indication
4. Data storage
5. LCD backlight
6. Polarization Index
7. Over-range alarm
8. 9999 Max display
9. Comparative measurement
10. Measurement time selection

Specification:

• Power:1.5V alkaline batteries (LR14) X 10, power adapter
• Product color: Red and grey
• Product net weight:6.6kg
• Product size:410*342*204mm
• Standard accessories: User manual, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries
• Standard individual packing: Gift box, toolbox
• Standard quantity per carton:1pc
• Standard carton measurement:510*320*420mm
• Standard carton gross weight:10.2kg

Package Includes:

1 x UT516B Insulation Resistance Tester
