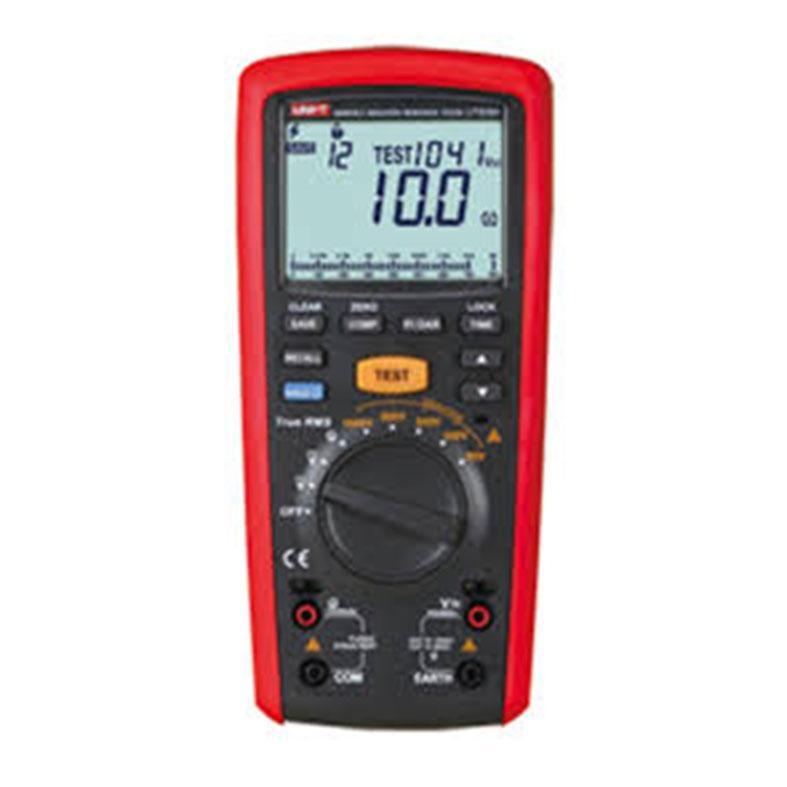

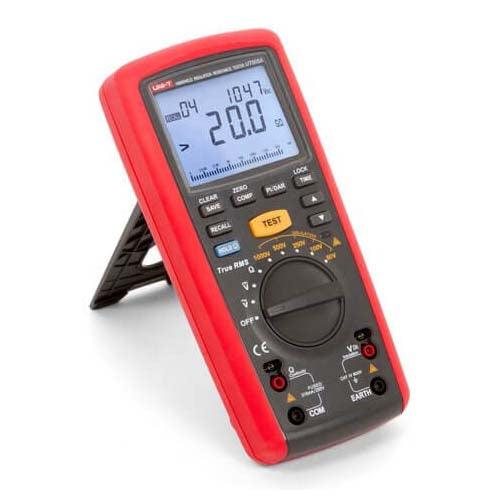

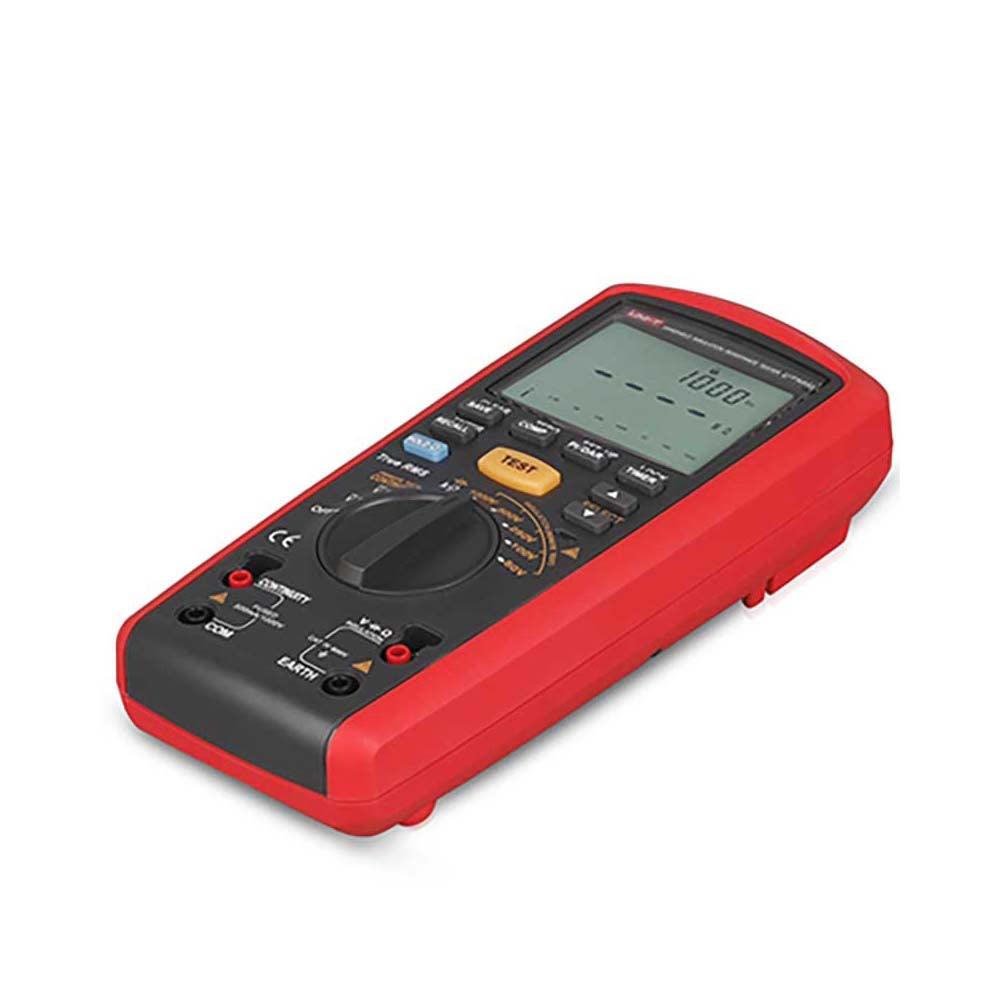

UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, and DAR, and automatically calculate the resistance ratio to determine the insulation status.    UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulating materials.

Features:

• Handheld, portable design with a large-size screen
• Easy to use
• True RMS
• Backlight
• Measure insulation resistance up to 20.0GΩ
• Selectable test voltages: 50V, 100V, 250V, 500V and 1000V
• PASS/FAIL compare function
• DAR and polarisation index function

Specifications:

• Specifications Range UT505A
• Insulation resistance (Ω) 50V 50V/100V/250V/500V/1000V 0%~10%
• 0.01MΩ~50MΩ ±(3%+5)
• 100V 0.01MΩ~100MΩ ±(3%+5)
• 250V 0.01MΩ~200MΩ ±(1.5%+5)
• 500V 0.01MΩ~500MΩ ±(1.5%+5)
• 1000V 0.1MΩ~2000MΩ ±(1.5%+5)
• 2GΩ~9.9GΩ ±(10%+3)
• 10GΩ~20GΩ ±(20%+10)
• Load current 50V (R=50kΩ) 1mA 0%~10%
• 100V (R=100kΩ) 1mA 0%~10%
• 250V (R=250kΩ) 1mA 0%~10%
• 500V (R=500kΩ) 1mA 0%~10%
• 1000V (R=1MΩ) 1mA 0%~10%
• Short circuit current <2mA
• Low resistance (Ω) 0.01Ω~20kΩ (about 5V/>200mA) ±(1.5%+3)
• DC voltage (V) 0V~600V ±(2%+3)
• AC voltage (V) 0V~600V ±(2%+3)
• Features
• Display count 6000
• Auto range/True RMS √
• Step voltage 10% steps at 50%~120% of range √
• DAR 60s/15s and 60s/30s √
• PI/Timing measurement √
• Auto discharge √
• Analog bar graph √
• Continuity buzzer √
• Comparison measurement √
• Low battery indication √
• General Characteristics
• Power 1.5V battery (LR6) x 6
• Display 78mm x 59mm
• Product color Red and grey
• Product net weight 630g
• Product size 103mm x 225mm x 59mm
• Standard accessories Batteries, test leads, test probes, alligator clips
• Standard individual packing Carrying bag, gift box, English manual
• Standard quantity per carton 20pcs
• Standard carton measurement 515mm x 380mm x 385mm (0.075 CBM per standard carton)

Industryparts.pk is the Best Online Shopping website for UT505A Handheld Insulation Resistance Tester. Here you get UT505A Handheld Insulation Resistance Tester at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x UT505A Handheld Insulation Resistance Tester
