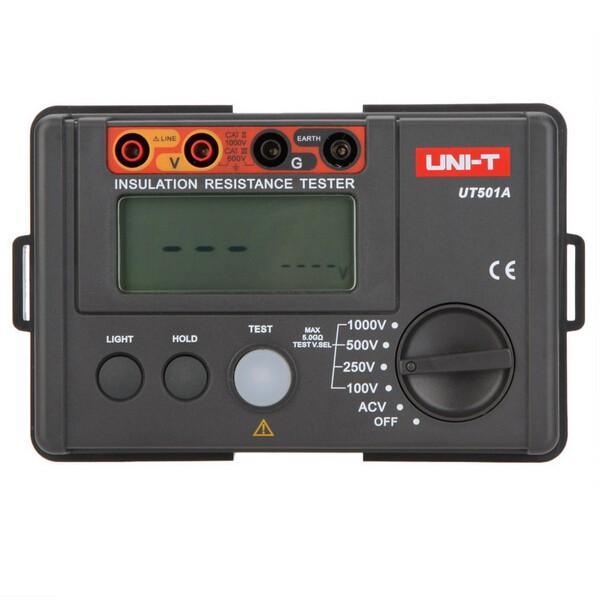

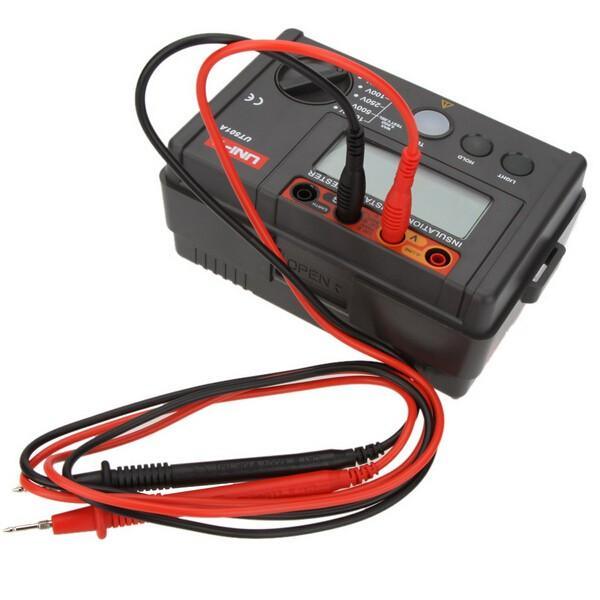

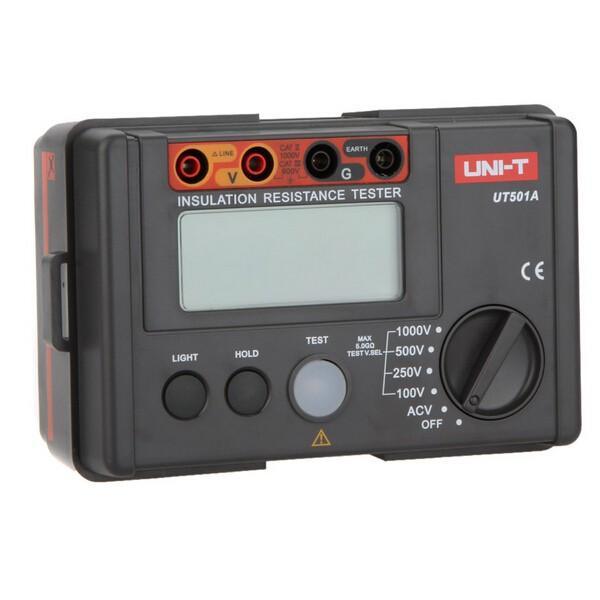

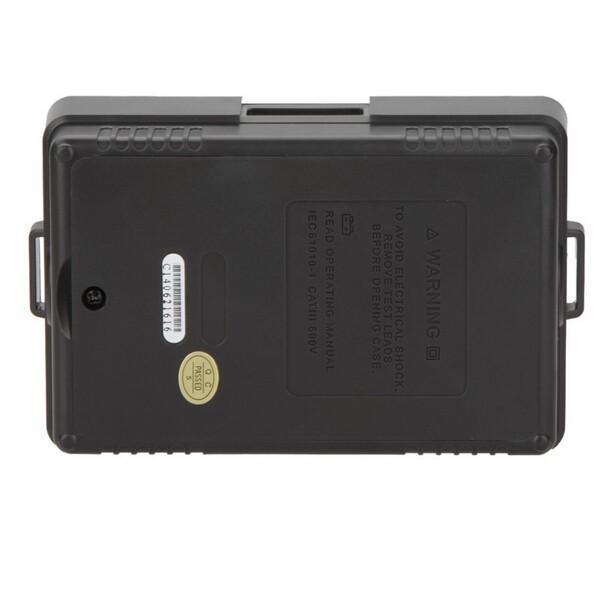

UT501A Insulation Resistance Tester in Pakistan

SKU:BR2358

Regular price Rs 17,400
Regular price Rs 17,950 Sale price Rs 17,400
Sale Sold out

UNI T Insulation Resistance Tester UT501A is used to measure the insulation resistance of electrical equipment and household appliances. This UT-501A earth insulation resistance meter is done by measuring the insulation resistance between electrical circuits or between circuits and the ground. This megohmmeter voltmeter can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index), and DAR (Dielectric Absorption). This insulation megger ideal tools for ensuring transformers, generators, high voltage motors, power capacitors, power cables, arresters, and other electrical equipment that can operate in a safe and accurate manner.

Features:

  • Measure insulation resistance across a wide range
  • Test voltages of 100V, 250V, 500V, and 1000V
  • Large size LCD screen with backlight (can be switched on/off)
  • 2000 count display
  • Simple-to-use
  • Large test initiate button
  • Ports for test leads
  • Data hold function
  • Various indicators available on the device

Specifications:

  1. Insulation Resistance(Ω): Test Voltage: 100V/250V/500V/1000V 0%~10%
  2. 100V: 0.00MΩ~100MΩ ±(3%+5)
  3. 250V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
  4. 500V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
  5. 1000V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
  6. Load Current: 50V(R=50KΩ) 1mA  0%~10% ; 100V(R=100KΩ) 1mA 0%~10% ; 250V(R=250KΩ) 1mA 0%~10%500V(R=500KΩ) 1mA 0%~10% ; 1000V(R=1MΩ) 1mA 0%~10%
  7. Short Circuit Current: <2mA
  8. AC Voltage (V): 30V~750V ±(2%+3)
  9. Display Count: 2000
  10. Automatic measurement: Yes
  11. Low Battery Indication: Yes
  12. LCD Backlight: Yes
  13. Alarm Light Display: Yes
  14. Alarm Buzzer: Yes
  15. High Voltage Indication: Yes
  16. Over Load Indication: Yes
  17. Auto Discharge: Yes
  18. Test Voltage Vice Display: Yes
  19. 10M? Internal Resistance Test: Yes
  20. Power: 6 x 1.5V Alkaline batteries (Not included)
  21. LCD Size: 65mm x 27mm
  22. Product Net Weight: 500 g
  23. Product Size: 150mm x 100mm x 71mm
  24. Product Color: Red and Grey
  25. Package Size: 18.5 x 15 x 9cm / 7.3 x 5.9 x 3.7in
  26. Package Weight: 700g / 1.5lb

Package Includes:

  • 1 x Megohmmeter UNI-T UT501A
  • 2 x Test leads
  • 2 x Test probes
  • 1 x Alligator clip
  • 1 x Carrying bag
  • 1 x Strap
  • 1 x User manual

Industryparts.pk is the Best Online Shopping website for UNI T Insulation Resistance Tester UT501A Megger Tester Digital Electrical Megger Meter Cable Insulation Tester Voltmeter Megohmmeter at cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad, and all Pakistan.

UT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in Pakistan

UT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in Pakistan

View full details

Description

UNI T Insulation Resistance Tester UT501A is used to measure the insulation resistance of electrical equipment and household appliances. This UT-501A earth insulation resistance meter is done by measuring the insulation resistance between electrical circuits or between circuits and the ground. This megohmmeter voltmeter can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index), and DAR (Dielectric Absorption). This insulation megger ideal tools for ensuring transformers, generators, high voltage motors, power capacitors, power cables, arresters, and other electrical equipment that can operate in a safe and accurate manner.

Features:

  • Measure insulation resistance across a wide range
  • Test voltages of 100V, 250V, 500V, and 1000V
  • Large size LCD screen with backlight (can be switched on/off)
  • 2000 count display
  • Simple-to-use
  • Large test initiate button
  • Ports for test leads
  • Data hold function
  • Various indicators available on the device

Specifications:

  1. Insulation Resistance(Ω): Test Voltage: 100V/250V/500V/1000V 0%~10%
  2. 100V: 0.00MΩ~100MΩ ±(3%+5)
  3. 250V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
  4. 500V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
  5. 1000V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
  6. Load Current: 50V(R=50KΩ) 1mA  0%~10% ; 100V(R=100KΩ) 1mA 0%~10% ; 250V(R=250KΩ) 1mA 0%~10%500V(R=500KΩ) 1mA 0%~10% ; 1000V(R=1MΩ) 1mA 0%~10%
  7. Short Circuit Current: <2mA
  8. AC Voltage (V): 30V~750V ±(2%+3)
  9. Display Count: 2000
  10. Automatic measurement: Yes
  11. Low Battery Indication: Yes
  12. LCD Backlight: Yes
  13. Alarm Light Display: Yes
  14. Alarm Buzzer: Yes
  15. High Voltage Indication: Yes
  16. Over Load Indication: Yes
  17. Auto Discharge: Yes
  18. Test Voltage Vice Display: Yes
  19. 10M? Internal Resistance Test: Yes
  20. Power: 6 x 1.5V Alkaline batteries (Not included)
  21. LCD Size: 65mm x 27mm
  22. Product Net Weight: 500 g
  23. Product Size: 150mm x 100mm x 71mm
  24. Product Color: Red and Grey
  25. Package Size: 18.5 x 15 x 9cm / 7.3 x 5.9 x 3.7in
  26. Package Weight: 700g / 1.5lb

Package Includes:

  • 1 x Megohmmeter UNI-T UT501A
  • 2 x Test leads
  • 2 x Test probes
  • 1 x Alligator clip
  • 1 x Carrying bag
  • 1 x Strap
  • 1 x User manual

Industryparts.pk is the Best Online Shopping website for UNI T Insulation Resistance Tester UT501A Megger Tester Digital Electrical Megger Meter Cable Insulation Tester Voltmeter Megohmmeter at cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad, and all Pakistan.

UT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in Pakistan

UT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in PakistanUT501A Insulation Resistance Tester in Pakistan
