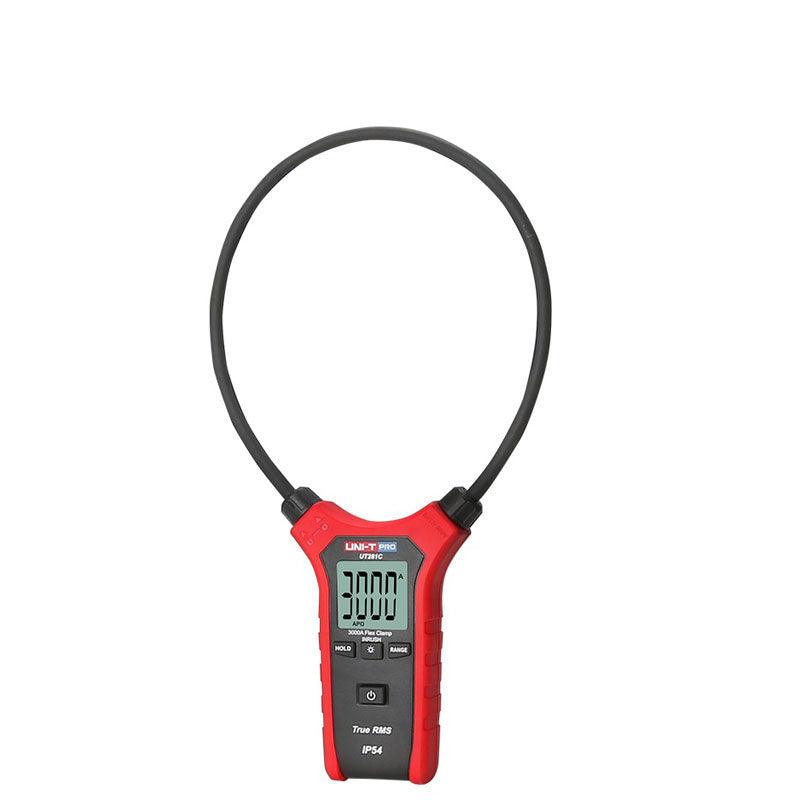

UT281C True RMS AC 3000A Flexible Clamp Meter in Pakistan

Regular price Rs 15,800
Regular price Rs 17,500 Sale price Rs 15,800
Sale Sold out
BR2153

UT281C True RMS AC 3000A Flexible Clamp Meters BR2153

Description:



1. 2m drop proof, IP54, ETL/Intertek certified 3rdedition CE



2. Coil diameter: 0.75cm, bending length: 24.5cm for UT281A and 45.7cm for UT281C



3. Large LCD display for clear reading



4. True RMS



5. Long press INRUSH key for 2s to measure inrush current



6. Datahold, backlight, auto power off



Specification:


Basic Functions Range Basic Accuracy
Model UT281C
Max current  measurement (AC) 0.00A ~ 3000A ±(3%+5)
Current measurement  (AC) 0.00A ~ 30.00A ±(3%+5)
Current measurement  (AC) 0.0A ~ 300.0A ±(3%+5)
Current measurement  (AC) 0A ~ 3000A ±(3%+5)
Inrush current  measurement 0.00A ~ 3000A For reference
Frequency response 45Hz~500Hz (sine wave) ?
Jaw size Rogowski flex coil (diameter:  8mm) Bending length: 18 inches  (45.7cm); radius: around 3.1 inches (8cm)
True RMS measurement ?
Measuring digit  conversion rate times/s 3
LCD display (TN) interface Single display
Manual range ?
Auto power off ?
Buzzer ?
Low battery  indication ?
Data hold ?
Manual backlight ?
Working temperature 0°C ~ 50°C
2m drop proof ?
Protection grade IP54
Safety certification  grade CAT IV 600V


General features


Device color Red and grey
Device weight 236g
Device size 350mm × 190mm × 55mm
Standard individual  packing Gift box, blister, English  manual





Packages Include:

 1 x UT281C True RMS AC 3000A Flexible Clamp Meters
