UT256B UNI-T 200A True RMS Fork Type Digital Multimeter in pakistan BR1463

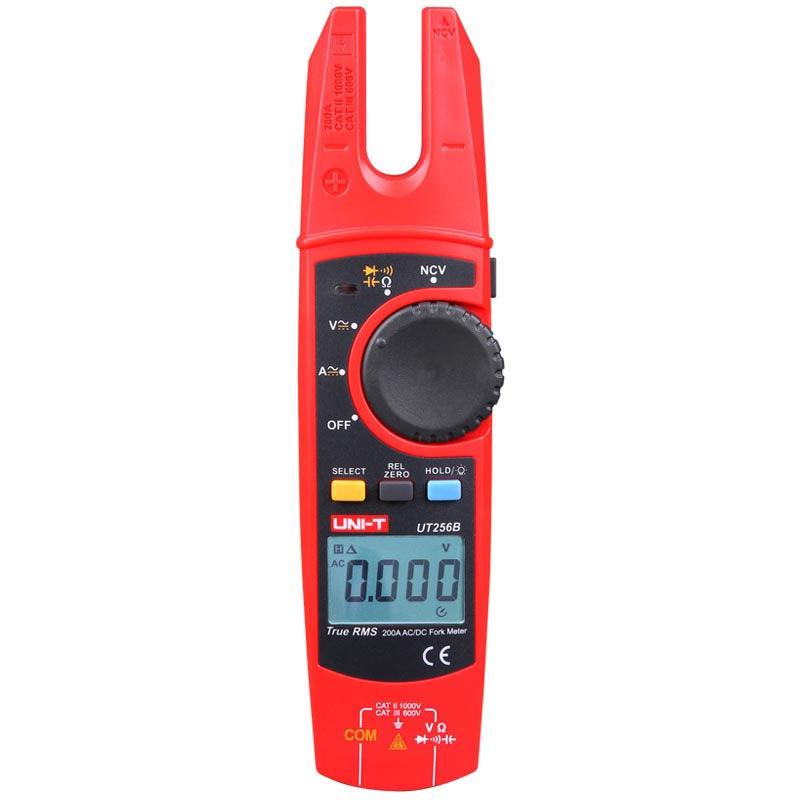

UT256B UNI-T 200A True RMS Fork Type Digital Multimeter
Its unique design allows users to measure AC/DC current by simply moving the wire of interest inside the opening of the ‘fork’ past the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.
TRUE RMS FORK TYPE METER UNI-T UT256B
Specification:
AC Current 200A ±(2.5%+5)
DC Current 200A ±(2.5%+5)
AC Voltage 6V/60V/600V/750V ±(1.2%+3)
DC Voltage 600mV/6V/60V/600V/1000V ±(0.8%+3)
Resistance 600?/6k?/60k?/600k?/6M?/60M? ±(1.0%+2)
Capacitance 60nF/600nF/6uF/60uF/600uF/6mF/60mF ±(4%+20)
Functions:
Display count 6000
Autorange
TRMS
Diode test
NCV
Data hold
Zero mode
Relative mode
LCD backlight
Auto power off
Continuity buzzer
Low battery indication
Input protection
Input impedance for DCV >=10M?
General Characteristics:
Power AAA: 1.5V x2
LCD Size: 36.5x24mm
Weight: 163.7g
Size: 210x53x35mm
Accessory: batteries, manual, test leads, carrying bag
UT256B UNI-T 200A True RMS Fork Type
