UT216C 600A True RMS Digital Clamp Meters in Pakistan
SKU:BR1640-D3
Regular price
Rs 24,500
Regular price
Rs 27,000
Sale price
Rs 24,500
Unit price
per
Couldn't load pickup availability

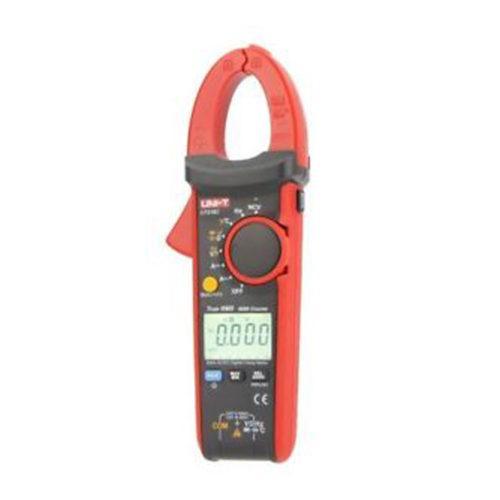

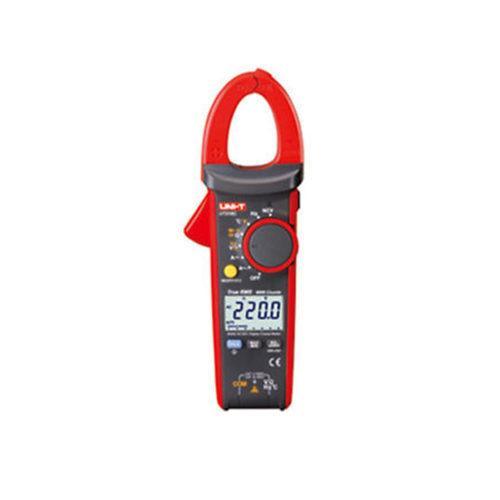

UT216C 600A True RMS Digital Clamp Meters in Pakistan BR1640
Description
UT216 series true RMS digital clamp meter is a new-generation practical electro technical measurement meter which has the features of high reliability, high safety, automatic range and handheld type, has full-range overload protection and unique appearance design, is more excellent in performance, and is an ideal tool for detection, maintenance and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power and circuit equipment. Manufactured by UNI-T.
Features:
- True RMS
- Auto range, 3/s sampling rate
- MAX/MIN/Relative modes
- K-type temperature probe
- Flashlight
- Data hold, LCD backlight, auto power off
- 400Hz measurement
- NCV, non-contact AC voltage testing
- VFC, low pass filter
- Zeroing function
- Inrush current
- Analog bar graph
Specifications |
Range |
Best Accuracy |
| Model | UT216C | |
| AC Current (A) | 60A/600A | ±(2.5%+5) |
| DC Current (A) | 60A/600A | ±(2.5%+5) |
| AC Voltage (V) | 6V/60V/600V/750V | ±(1.2%+5) |
| DC Voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.8%+1) |
| Resistance (?) | 600?/6K?/60K?/600K?/6M?/60M? | ±(1%+2) |
| Capacitance (F) | 60nF/600nF/6?F/60?F/600?F/6mF/60mF | ±(4.0%+5) |
| Frequency (Hz) | 10Hz-1MHz | ±(0.1%+4) |
| Temperature (°C) | -40 °C ? 1000°C | ±(2.5%+3) |
| Temperature (°F) | -40 °F ? 1832°F | ±(2.5%+4) |
Features |
||
| Display Count | 6000 | |
| Auto Range | ? | |
| Jaw Capacity | 30mm | |
| True RMS | ? | |
| Diode | Around 3.0V | ? |
| V.F.C. | ? | |
| NCV | ? | |
| Data Hold | ? | |
| Zero Mode | ? | |
| Relative Mode | ? | |
| MAX/MIN | ? | |
| Inrush Current | ? | |
| LCD Backlight | ? | |
| Analogue Bar Graph | 61 | |
| Flashlight | ? | |
| Auto Power Off | Around 15 Minutes | ? |
| Continuity Buzzer | ? | |
| Low Battery Indication | ?3.6V | ? |
| Input Protection | ? | |
| Input Impedance for DCV | ?10M? | ? |
Device Characteristics |
||
| Power | AAA 1.5V x 3 | |
| LCD Size | 38mm x 24 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 231.7g | |
| Product Size | 220mm x 75mm x 40mm | |
| Standard Accessories | Batteries, Test Lead, Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box, Carrying Bag, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 485mm × 320mm × 385mm (0.060 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 20Kg | |
Brandrethroad.pk is the Best Online Shopping website for UT216C 600A True RMS Digital Clamp Meters. Here you get UT216C 600A True RMS Digital Clamp Meters at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
- YouTube Link
- Pinterest Link
- Instagram Link
- Facebook Link
Package Includes:
1 x UT216C 600A True RMS Digital Clamp Meters
