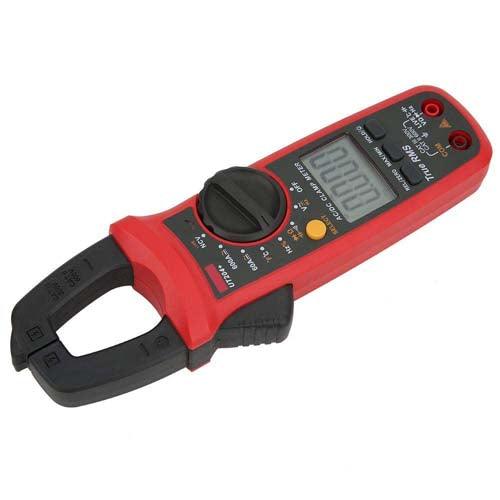

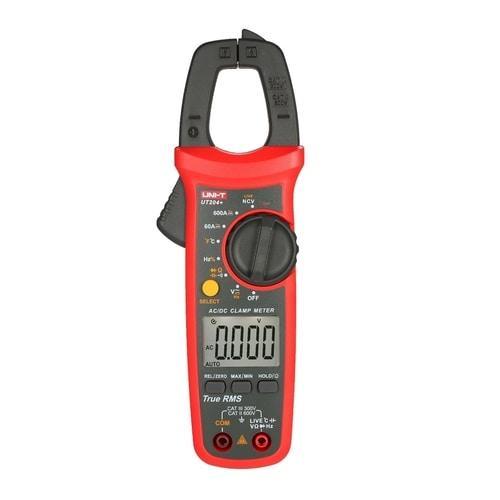

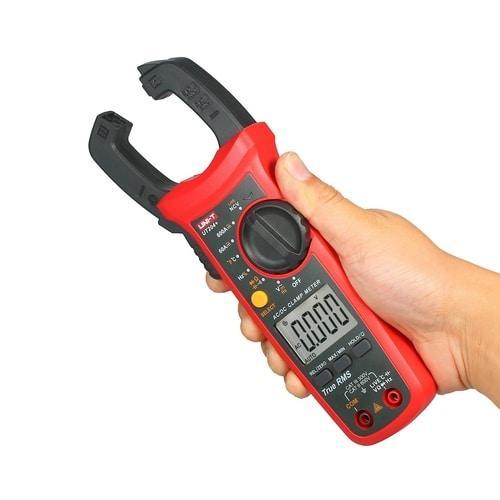

UNI-T Digital Clamp Meter UT204+ measures current and probes measures voltage. AC DC Current Multimeter, having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable, or other conductors at any point in an electrical system, then measure current in that circuit without disconnecting/de-energizing it.

Features:

• The large-screen LCD display, fast ADC / analog to digital converter.
• Full-featured false detection protection, overvoltage, overcurrent alarm prompt.
• True RMS; voltage measurement 600V.
• NCV electric field detection with sound and light alarm prompt; LIVE live-line measurement.
• With high voltage frequency measurement.
• Full range overload protection.
• Automatic range, digital hold.
• Lightweight and small design, easy to carry.
• Open clamp head for easy clamping.
• Range gear, knob dial.
• Test pen input, jack measurement.
• Intelligent anti-burn protection.

Specifications:

• Brand Name: UNI T
• Certification: CE
• Certification : RoHS
• DIY supplies: ELECTRICAL
• Origin: Cn (Origin)
• Electrical capacitance range measurement: 60mF
• Model Number:  UT204+
• Dimensions : 215mm x 63mm x 36mm
• Voltage range measurement: 600v
• Working temperature: -40~100
• Resistance range measurement: 60Mohm
• Measurement inductance range: AFTER
• weight: 170g
• Voltage range measurement: 400A
• Display Type: Digital Only
• dc current clamp meter: clamp multimeter
• ac dc clamp meter: unit clamp meter
• multimeter clamp: current clamp
• ammeter clamp: clamp meter dc
• Material: ABS
• Safety Rating: CAT II 600V, CAT III 300V
• Display Count: Max. 6000
• Jaw Opening: 28mm
• Auto off: 15 minutes: Auto
• AC Current : 60.00A/600.0A
• AC Current Resolution: 0.01A/0.1A
• DC Current : 60.00A/600.0A
• DC Current Resolution: 0.01A/0.1A
• AC Voltage : 6.000V/60.00V/600.0V
• AC Voltage Resolution: 0.001V/0.01V/0.1V
• AC Voltage Frequency: 10Hz~60kHz
• AC Voltage Frequency Resolution: 0.01Hz~0.01kHz
• DC Voltage : 600.0mV/6.000V/60.00V/600.0V
• DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V
• Resistance : 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
• Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
• Capacitance : 60.00nF/600.0nF/6.000uF/60.00uF/600.0uF/6.000mF/60.00mF
• Capacitance Resolution: 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
• Temperature : -40~40℃/40~500℃/500~1000 (-40~104℉/104~932℉/932~1832℉)
• Temperature Resolution: 1℃(1℉)
• Frequency : 10Hz~10MHz
• Frequency Resolution: 0.01Hz~0.01MHz
• Duty Cycle : 0.1%~99%
• Duty Cycle Resolution: 0.1%
• Continuity : 600.0Ω
• Continuity Resolution: 0.1Ω
• Diode : 6.000V
• Diode Resolution: 0.001V
• Operating Temperature: 0~30℃(humidity ≤ 80%RH), 30~40℃(humidity ≤ 75%RH), 40~50℃(humidity ≤ 45%RH)
• Storage Temperature & Humidity: -20~60℃, ≤ 80%RH
• Altitude: 2,000 meters
• Power Supply: 2 * 1.5V AAA battery (NOT included)
• Item Size: 215 * 63.5 * 36mm / 8.46 * 2.5 * 1.41in
• Item Weight: 278g / 9.82oz
• Package Weight: 371g / 13.11oz
• Package Size: 23.5 * 9.2 * 5.3cm / 9.25 * 3.62 * 2.09in

Package Includes:

• 1 x UNI-T UT204+ Digital AC DC Current Clamp Meter Multimeter
• 2 x Test Leads
• 2 x Temp Prob
