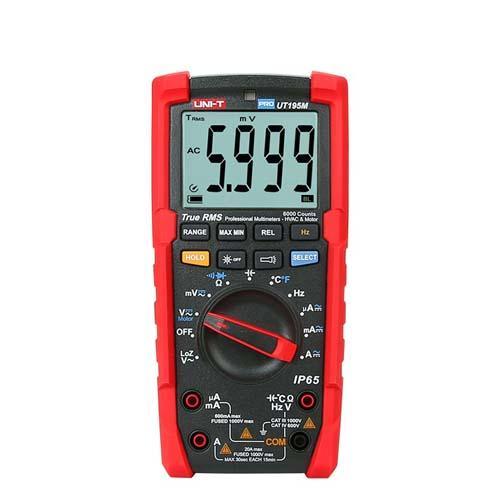

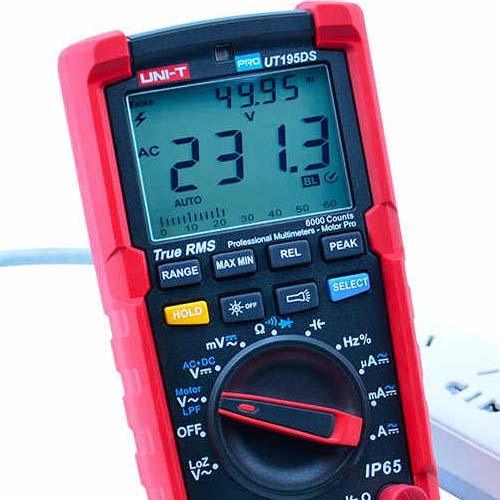

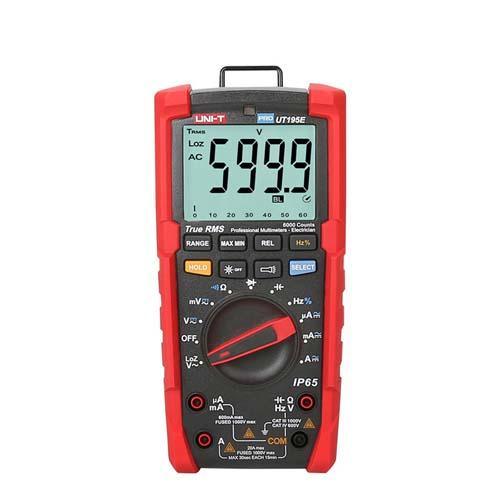

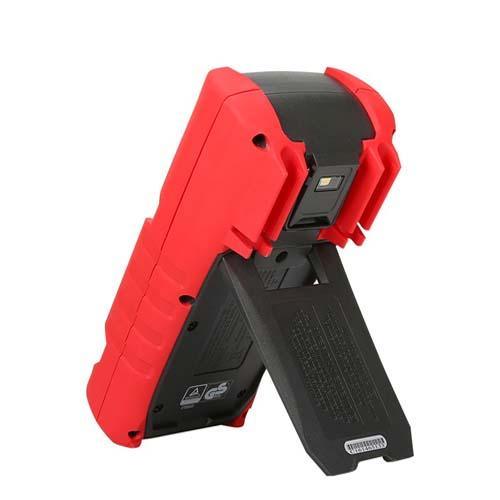

UNI T UT195 Series Professional Multimeters in Pakistan

SKU:BR6954A

Regular price Rs 0
Regular price Rs 0 Sale price Rs 0
Sale Sold out
Material

UNI T UT195 Series Professional Multimeters in Pakistan BR6954

Description

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop-proof. Compare with traditional multimeters, UT195's troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair, etc. It is exquisitely designed and easy to operate.

Features:

  1.  IP65 rating, 2m drop-proof, CAT III 1000V, CAT IV 600V
  2.   Large 6000-count LCD screen
  3.  True RMS
  4.  ACV 750V 5kHz bandwidth
  5.  Flashlight
  6.  Auto LCD backlight controlled by the light sensor (can be turned off)
  7.  LoZ voltage test, for ghost voltage measurement
  8.  20A current measurement (max 30 seconds)
  9.  31 analog bar

 Specifications:

Specifications Range UT195E UT195M UT195DS
DC voltage (V) 1000V ±(0.5%+3) ±(0.5%+3) ±(0.5%+3)
AC voltage (V) 1000V ±(1.0%+3) ±(1.0%+3) ±(1.0%+3)
AC+DC  600V     ±(1.5%+4)
LoZ ACV 600V ±(2%+3) ±(2%+3) ±(2%+3)
DC current (A) 20A ±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
AC current (A) 20A ±(1%+3) ±(1%+3) ±(1%+3)
Resistance (Ω) 60MΩ ±(0.8%+2) ±(0.8%+2) ±(0.8%+2)
Capacitance 60mF ±(3%+5) ±(3%+5) ±(3%+5)
Frequency 60Hz~10MHz ±(0.1%+4)
60Hz~40MHz   ±(0.1%+4) ±(0.1%+4)
Duty cycle 0.1%~99.9% ±(2%+5) N/A ±(2%+5)
Temperature (°C) -40°C~1000°C   ±(1.5%+4)
Temperature (°F) -40°F~1832°F   ±(2%+5)
Features
Display count   6000 6000 6000
Display interface (LCD)   Single Single Dual
Measurement sampling rate times/s 3 3 5
Analog bar sampling rate times/s 10   20
Analog bar 31 sections
True RMS
AC voltage frequency response   45~400Hz 45~1kHz 45~5kHz
AC current frequency response   45~400Hz 45~1kHz 45~5kHz
3-phase motor sequence test 600V
Low pass filter 1kHz 3dB attenuation
Diode/Continuity test   3.5V 3V 3V
Peak hold 250μs
Auto/Manual range
Continuity buzzer
Low battery indication
Data hold/Auto power off
MAX/MIN
Function selection
Flashlight/Auto backlight
General Characteristics
Power 9V battery
LCD size 66mm x 51mm
Product color Red and grey
Product net weight 437g
Product size 195mm x 95 mm x 58mm
Standard accessories Test probes, battery, carrying bag, point contact temperature probe (UT195M)
Standard individual packing Gift box, English manual (German, French, Spanish optional) l
Standard quantity per carton 6pcs
Standard carton measurement 580mm x 375mm x 215mm
Standard carton gross weight 7.2kg


Brandrethroad.pk is the Best Online Shopping website for UT195 Series Professional Multimeters (UNI-T). Here you get UT195 Series Professional Multimeters (UNI-T) at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

UNI T UT195 Series Professional Multimeters in Pakistan

  1. YouTube Link
  2. Pinterest Link
  3. Instagram Link
  4. Facebook Link

Package Includes:

1 x UT195 Series Professional Multimeters (UNI-T)

View full details
