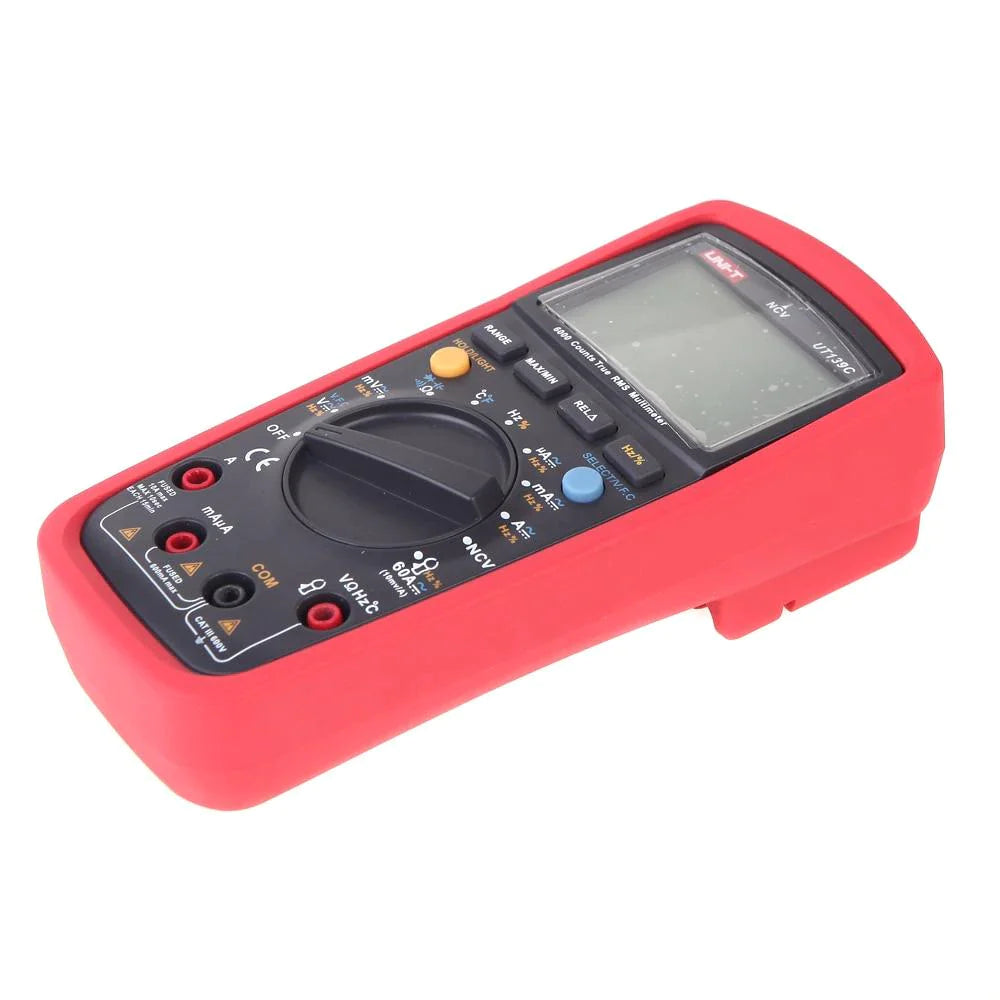

UT139C True RMS Auto Range Digital Multimeter in Pakistan BR144
Specifications
|
Range
|
Best Accuracy
|
| Model |
|
UT139C |
| DC Voltage (V) |
60mV/600mV/6V/60V/600V |
±(0.5%+2) |
| AC Voltage (V) |
60mV/600mV/6V/60V/600V |
±(0.8%+3) |
| DC Current (A) |
600?A/6000?A/60mA/600mA/6A/10A |
± (0.7%+2) |
| AC Current (A) |
600?A/6000?A/60mA/600mA/6A/10A |
±(1%+3) |
| Resistance (?) |
600?/6k?/60k?/600k?/6M?/60M? |
±(0.8%+2) |
| Capacitance (F) |
9.999nF/99.99nF/999.9nF/9.999?F/99.99?F/ |
±(4.0%+5) |
| 999.9?F/9.999mF/99.99mF |
| Frequency (Hz) |
10Hz-10MHz |
±(0.1%+4) |
| Temperature (°C) |
-40 °C~1000°C |
±(1.0%+3) |
| Temperature (°F) |
-40°F~1832°F |
±(1.5%+5) |
Features
|
| Display Count |
|
6000 |
| Auto Range |
|
? |
| Manual Range |
|
? |
| True RMS |
|
? |
| Bandwidth (Hz? |
|
45Hz ?1kHz |
| V.F.C |
|
? |
| Duty Cycle |
0.1% ? 99.9% |
? |
| Diode |
|
Around 3V |
| NCV |
|
? |
| Auto Power Off |
Around 15 Minutes |
? |
| Continuity Buzzer |
|
? |
| Low Battery Indication |
?2.5V |
? |
| Data Hold |
|
? |
| Relative Mode |
|
? |
| MAX/MIN |
|
? |
| LCD Backlight |
|
? |
| Input Protection |
600Vrms |
? |
| Input Impedance for DCV |
1G? Max |
? |
General Characteristics
|
| Power |
AA1.5*2 |
| LCD Size |
58mm × 36 mm |
| Product Colour |
Red and Grey |
| Product Net Weight |
370g |
| Product Size |
175mm x 81mm x 48.5 mm |
| Standard Accessories |
Battery, Test Leads, Temperature Probe |
| Standard Individual Packing |
Gift Box, English Manual |
| Standard Quantity Per Carton |
40 PCs |
| Standard Carton Measurement |
645mm×450mm×340mm (0.098CBM Per Standard Carton) |
| Standard Carton Cross Weight |
25.5 Kg |
| Optional Accessories* |
| Current Sensor AC/DC40A |
Package includes:
1x UT139C True RMS Digital Multimeter
