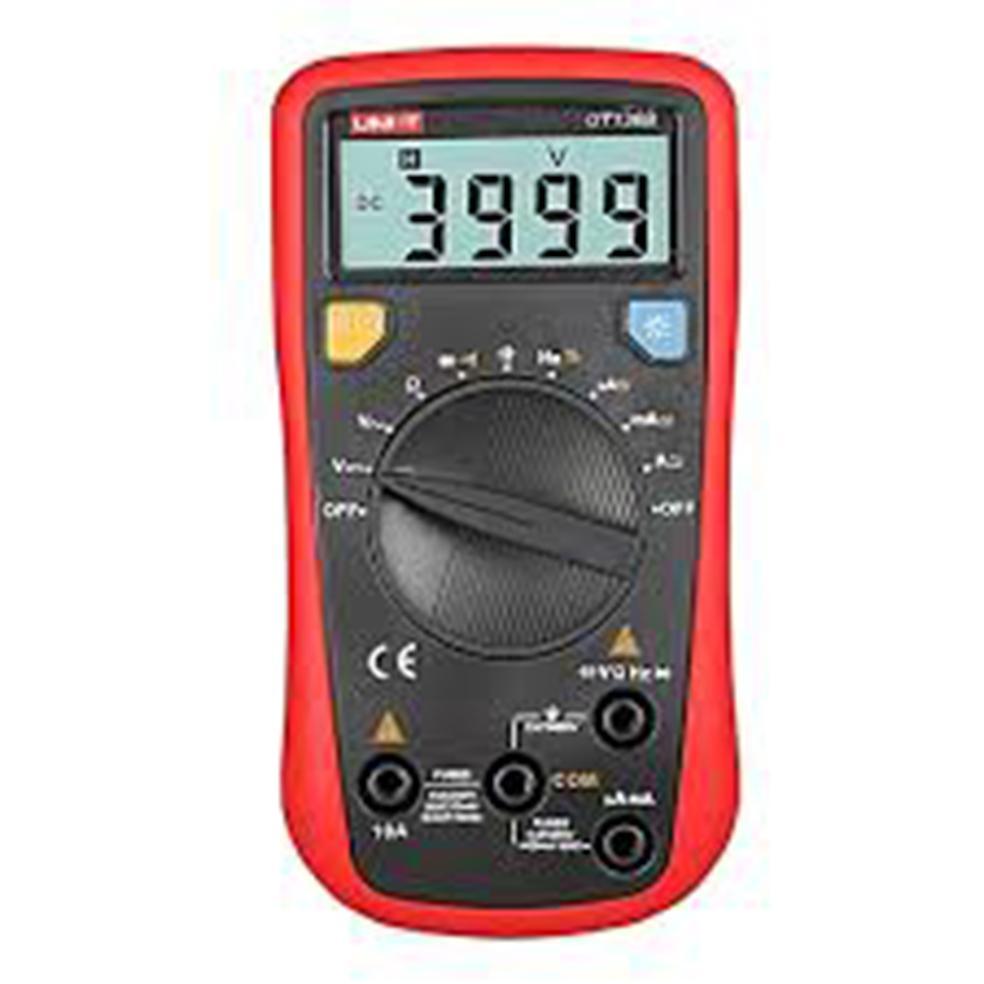

UT136B Handheld Auto-ranging Digital Multimeters BR2424

 Description    UT136 series are mini handheld auto-ranging digital multimeters that offer users complete functions, stable performance, low power consumption, novel structural design, high degree of safety and reliability, and therefore become an ideal portable tool for maintenance and repairing.  Applicable fields are homes, schools, metallurgy, communications, manufacturing, national defense, electric power, chemical industry, ect, and the series is a best choice for electric circuit/equipment maintenance and repairing.    Specification    Specifications Range Best Accuracy  Model UT136B  DC Voltage 400mV/4V/40V/400V/500V ±(0.8%+1)  AC Voltage 400mV/4V/40V/400V/500V ±(1.2%+3)  DC Current 400uA/4mA/40mA/400mA/4A/10A ±(1.0%+2)  AC Current 400uA/4mA/40mA/400mA/4A/10A ±(1.2%+5)  Resistance 400?/4000?/40k?/400k?/4M?/40M? ±(1.0%+2)  Capacitance 4nF/40nF/400nF/4uF/40uF/100uF ±(4.0%+3)  Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3)  Duty Cycle 0.1%?99.9% ?  Features  Diode ?  Continuity Buzzer ?  Auto Power Off ?  Low Battery Display ?  Input Impedance for Voltage Measurement ?10M? ?  Data Hold ?  Max. Display 3999  General Characteristic  Power 9VBattery?6F22?  LCD Size 49mm×18mm  Product Color Red +Grey  Product Net Weight About 200g (Battery included?  Product Size 72mm×137mm×35mm  Standard Accessories Test leads, Battery  Standard Packing Giftbox, English Manual  Standard Quantity Per Carton 66 Pcs  Standard Carton Measurement 595mm×310mm×350mm  Standard Carton Gross Weight About 22 Kg    SpecificationsRangeBest AccuracyModel?UT203AC Current (A)40A/400A±(2.5%+5)DC Current (A)40A/400A±(2%+3)AC Voltage (V)4V/40V/400V/600V±(1%+5)DC Voltage (V)400mV/4V/40V/400V/600V±(0.8%+1)Resistance (?)400?/4k?/40k?/400k?/4M?/40M?±(1%+2)Frequency (Hz)10Hz~1MHz±(0.1%+3)FeaturesDisplay Count  3999Auto Range  ?Jaw Capacity  28mmDuty Cycle0.1%~99.9%?Diode  ?Auto Power Off  ?Continuity Buzzer  ?Low Battery Indication  ?Data Hold  ?Relative Mode  ?Setup  ?Input Impedance for DCVAround 10M??General Characteristic Power9V Battery?6F22)LCD Size35.6X 18mmProduct ColorRed and GreyProduct Net Weight260gProduct Size208mm X 76mm X30 mmStandard AccessoriesBattery, Test Lead,Carrying BagStandard Individual PackingGift Box, English ManualStandard Quantity Per Carton40 PCsStandard Carton Measurement540mm X 495mm X 335mm  (0.09 CBM Per Standard Carton)Standard Carton Gross Weight25Kg
