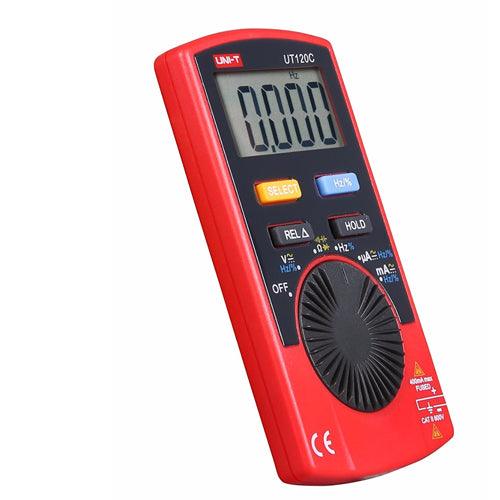

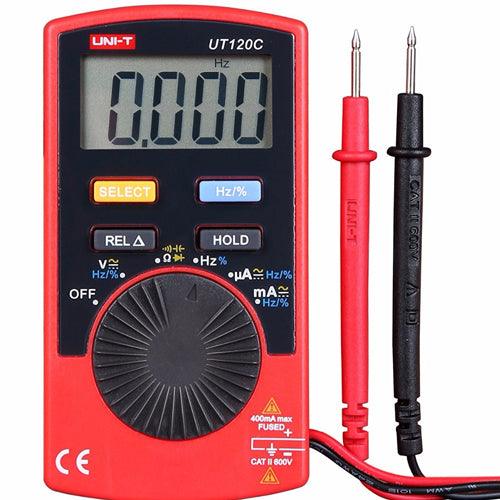

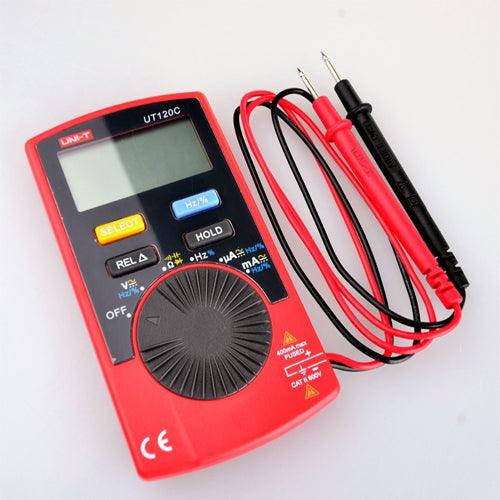

UNI T UT120C Pocket Size Digital Multi Meter in Pakistan
SKU:BR1009-W-HL-D1
Couldn't load pickup availability
UNI T UT120C Pocket Size Digital Multi Meter in Pakistan BR1009
Description:
UNI T Pocket Size Digital Multimeter UT120C is a 3999 count notebook type auto-ranging digital multimeter. This AC/DC current-voltage tester meter can hold data, relative measurement, and an easy-to-read large LCD. This palm-size multimeter can test AC/DC voltage & current, resistance, capacitance; check frequency, duty cycle. UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. This slimmest multimeter is a simple and portable multi-meter for every electronics engineer.
Features:
- Auto range
- Auto polarity indication
- Relative mode
- Data hold
- Auto power off
- Capacitance measurement
- AC/DC current measurement model and comparison
Multiple measurements & tests:
- AC Voltage.
- DC Voltage.
- AC Current.
- DC Current.
- Resistance.
- Capacitance.
- Frequency.
- Diode testing.
- Continuity test.
| Specifications | Range | Best Accuracy |
| Model | UT120C | |
| DC Voltage (V) | 400mV/4V/40V/600V | ±(0.8%+1) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1.2%+3) |
| DC Current (A) | 400?A/4mA/40mA/400mA | ±(1.0%+3) |
| AC Current (A) | 400?A/4mA/40mA/400mA | ±(1.5%+5) |
| Resistance (?) | 400?/4k?/40k?/400k?/4M?/40M? | ±(1%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4?F/40?F/100?F | ±(4%+3) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.5%+3) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | ? | |
| Duty Cycle | 0.1%~99.9% | ? |
| Diode | ? | |
| Auto Power Off | Around 30 minutes | ? |
| Continuity Buzzer | ? | |
| Low Battery Indication | ?2.4V | ? |
| Data Hold | ? | |
| Relative Mode | ? | |
| Input Impedance for DCV | Around 10M? | ? |
| General Characteristics | ||

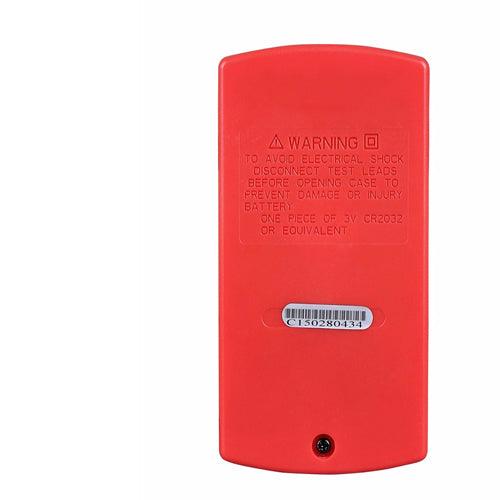

| Power | 3V Battery (CR2032) | |
| LCD Size | 43mm X 22mm | |
| Product Color | Red and grey | |
| Product Net Weight | 76g | |
| Product Size | 110mm X 58.2mm X 10.8mm | |

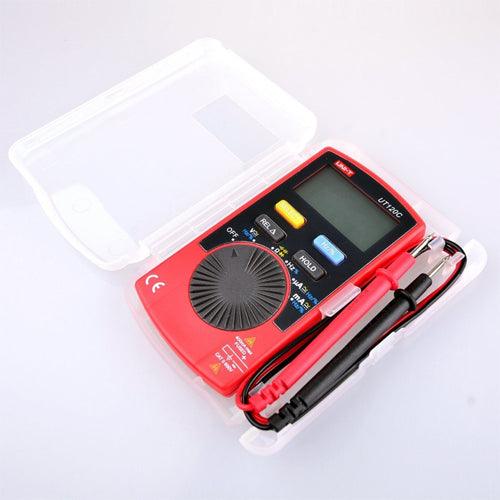

| Standard Accessories | Battery, carrying case | |
Industryparts.pk Best Online Shopping website for UNI T UT120C Pocket Size Digital Multi Meter. Here you get UNI T UT120C Pocket Size Digital Multi Meter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
- YouTube Link
- Pinterest Link
- Instagram Link
- Facebook Link
Packages Include:
1 x UNI T UT120C Pocket Size Digital Multi Meter
