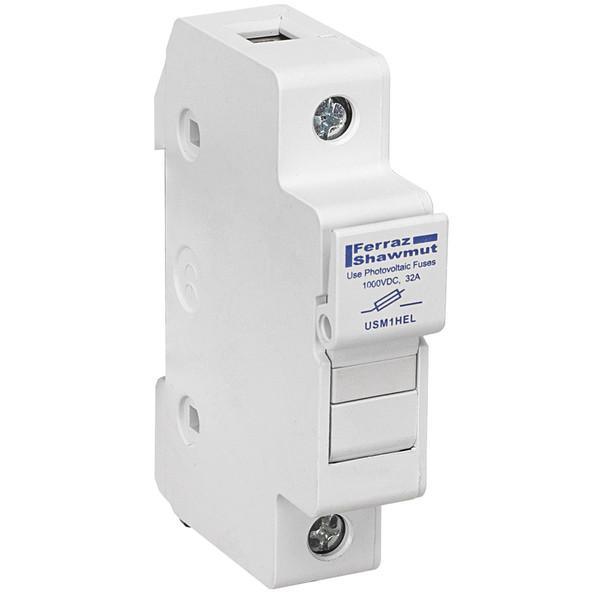

USM1HEL-12PK, Ferraz Shawmut Ultrasafe Fuse Holder
SKU:BR2980-1a
Regular price
Rs 0
Regular price
Sale price
Rs 0
Unit price
per
Couldn't load pickup availability
USM1HEL-12PK, Ferraz Shawmut Ultrasafe Fuse Holder in Pakistan BR2980
Specification:
| Ratings | |
| Volt Maximum | 1000VDC |
| Current Maximum | 30A |
| SCCR | 100kA DC |
| Clamping | Screw Terminal Philips/Slotted head |
| Terminal Torque | 14.75 in-lbs. |
| Wire Type | 60/75/90°C Solid/Stranded Copper |
| Wire Range | 1 x #14 - #6 AWG 2 x #14 - #10 AWG |
| Connector Type | Pressure Plate |
| Watts Loss | 3W or less |
| Flammability Rating | UL 94-VO |
| Operating Temperature | -40° to 185°F (-40° to 85°C) |
| Approvals | UL 4248-18 File E347822 CSA Certified C22.2 IEC 60269-2-1 and 60947-3 compliant |
Packages Include:
1 x USM1HEL-12PK, Ferraz Shawmut Ultrasafe Fuse Holder
Description
USM1HEL-12PK, Ferraz Shawmut Ultrasafe Fuse Holder in Pakistan BR2980
Specification:
| Ratings | |
| Volt Maximum | 1000VDC |
| Current Maximum | 30A |
| SCCR | 100kA DC |
| Clamping | Screw Terminal Philips/Slotted head |
| Terminal Torque | 14.75 in-lbs. |
| Wire Type | 60/75/90°C Solid/Stranded Copper |
| Wire Range | 1 x #14 - #6 AWG 2 x #14 - #10 AWG |
| Connector Type | Pressure Plate |
| Watts Loss | 3W or less |
| Flammability Rating | UL 94-VO |
| Operating Temperature | -40° to 185°F (-40° to 85°C) |
| Approvals | UL 4248-18 File E347822 CSA Certified C22.2 IEC 60269-2-1 and 60947-3 compliant |
Packages Include:
1 x USM1HEL-12PK, Ferraz Shawmut Ultrasafe Fuse Holder
