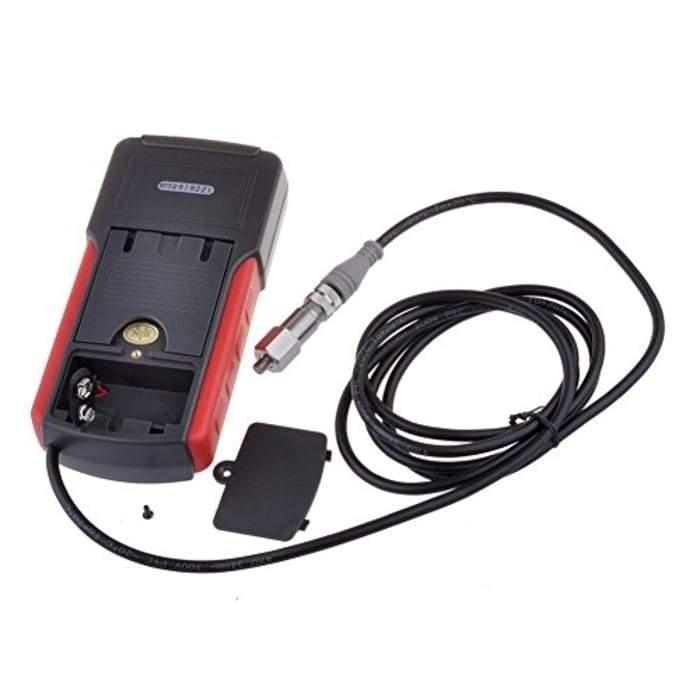

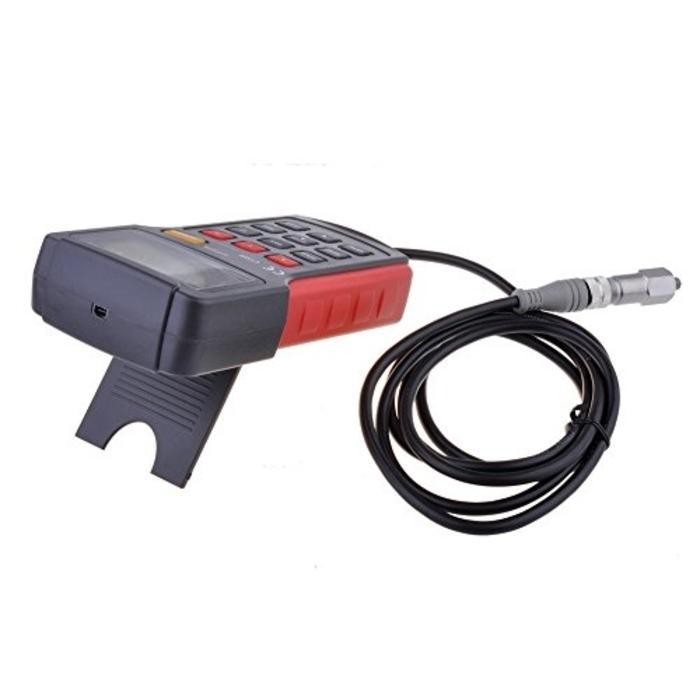

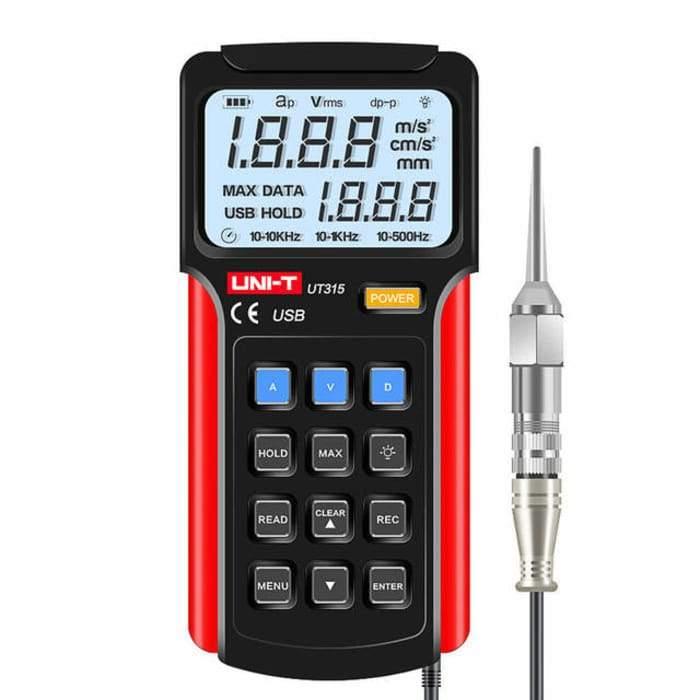

UNI T Vibration Tester Meter UT315 is designed with an acceleration sensor and digital measurement circuit. UT-315 portable vibration meter, it’s mainly used in measuring the vibration of mechanical equipment, velocity, and acceleration. The measured data from this vibrometer are compared with the national, international, corporate, machinery working standards to decide the condition (good, note or dangerous, etc.) of the machine(fan, pump, compressor, motor, etc.). This handheld vibration analyzer can be widely used in mechanical manufacturing, electric power, petroleum chemical industry, metallurgy, aerospace, and other fields. This vibration checking meter is the ideal measurement tool for purchasing inspection, operation monitoring, and maintenance for the rotating machinery equipment

Features Of UNI-T UT315 Digital Vibration Tester Vibrograph Vibrometer:

• Can measure acceleration, velocity, and displacement.
• Can select different vibration frequencies.
• High sensitivity sensor probe makes measurement accurate.
• Auto power off.
• Data hold.
• LCD backlight.
• Max mode.
• Data storage: 1,999 groups of data.
• USB interface.
• Equipped with long and short probes for different field measurements.
• Equipped with magnet pedestal for ergonomic purpose.
• Complies with CE (European Union) directives.

Specifications Of Best Vibration Meter UT-315 Vibration Analyzer:

1. Acceleration: 0.1~199.9m/s2 (10Hz~10kHz) ±(5%+2)
2. Velocity: 0.01~19.99cm/s (10Hz~1kHz) ±(5%+2)
3. Displacement: 0.001~1.999mm (10Hz~500Hz) ±(5%+2)
4. Display Count: 2000
5. Auto Power Off: Yes
6. Low Battery Indication: Yes
7. Data hold: Yes
8. Max Mode: Yes
9. Datalogging: 1999
10. Data Recall: Yes
11. USB Interface: Yes
12. Display Backlight: Yes
13. Power: 9V battery
14. Size: 166x80x30mm
15. LCD Size: 57x37mm
16. Weight: 365g

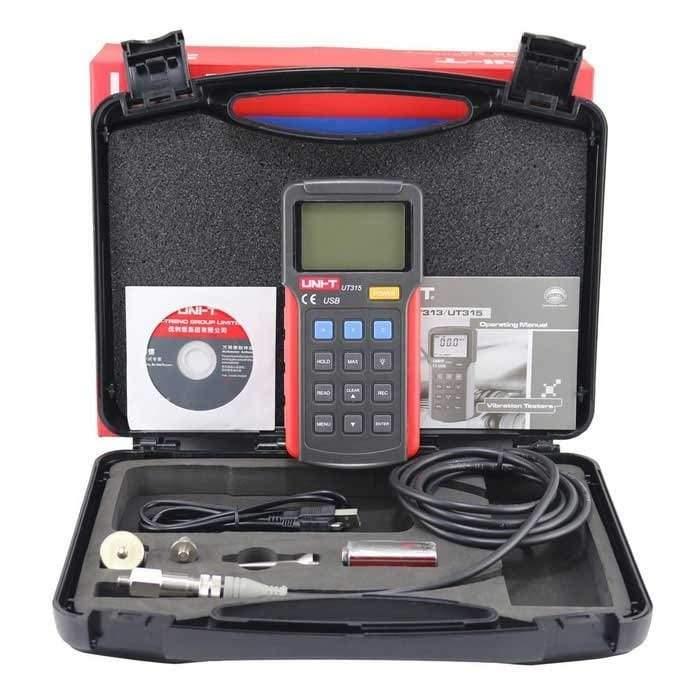

Package Includes:

• 1 x UNI-T UT315 vibration tester
• 1 x Battery
• 1 x Long probe
• 1 x Short probe
• 1 x Sensor
• 1 x Magnet stand
• 1 x Carrying bag
