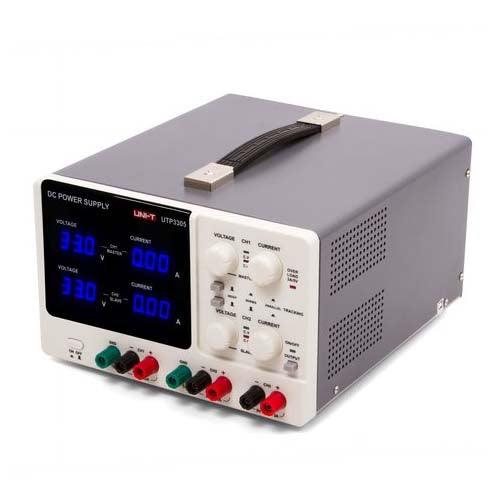

UNI-T UTP3305TFL DC SUPPLY in Pakistan

SKU:BR3298

Regular price Rs 0
Regular price Sale price Rs 0
Sale Sold out

A power supply is an electrical device that supplies electric power to an electrical load. The main purpose of a power supply is to convert electric current from a source to the correct voltage, current, and frequency to power the load.

Specifications:

  • Model UTP3305
  • Output voltage CH1, CH2 0~32V
  • CH3 5V
  • Output current CH1, CH2 0~5A
  • CH3 3A
  • O output power 335W
  • Load regulation CV≤1×10-4 +3mV, CC≤2×10-4 +3mA
  • Ripple and noise CV≤1mVrms; CC≤3mArms
  • Output regulation resolution CV: 100mV (typical), CC: 10mA (typical)
  • Tracking bias 5×10-3 +10mV
  • Reliability MTBF(e): ≥2000hrs
  • Display mode 3-bit voltage and current dual display
  • Features Auto conversion of constant voltage and current with current limit protection;
  • CH1 and CH2 master-slave tracking in series
  • General Characteristics
  • Power Input voltage: 115V AC/230V AC; Frequency: 47Hz~63Hz
  • Product color White and grey
  • Product net weight 10kg
  • Product size 260mm x 170mm x 315mm
  • Standard accessories Power cord, output cables
  • Standard individual packing Carton box, English manual

Package Includes:

1 x UNI-T UTP3305TFL DC SUPPLY

Industryparts.pk is the Best Online Shopping website for UNI-T UTP3305TFL DC SUPPLY. Here you get UNI-T UTP3305TFL DC SUPPLY at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
