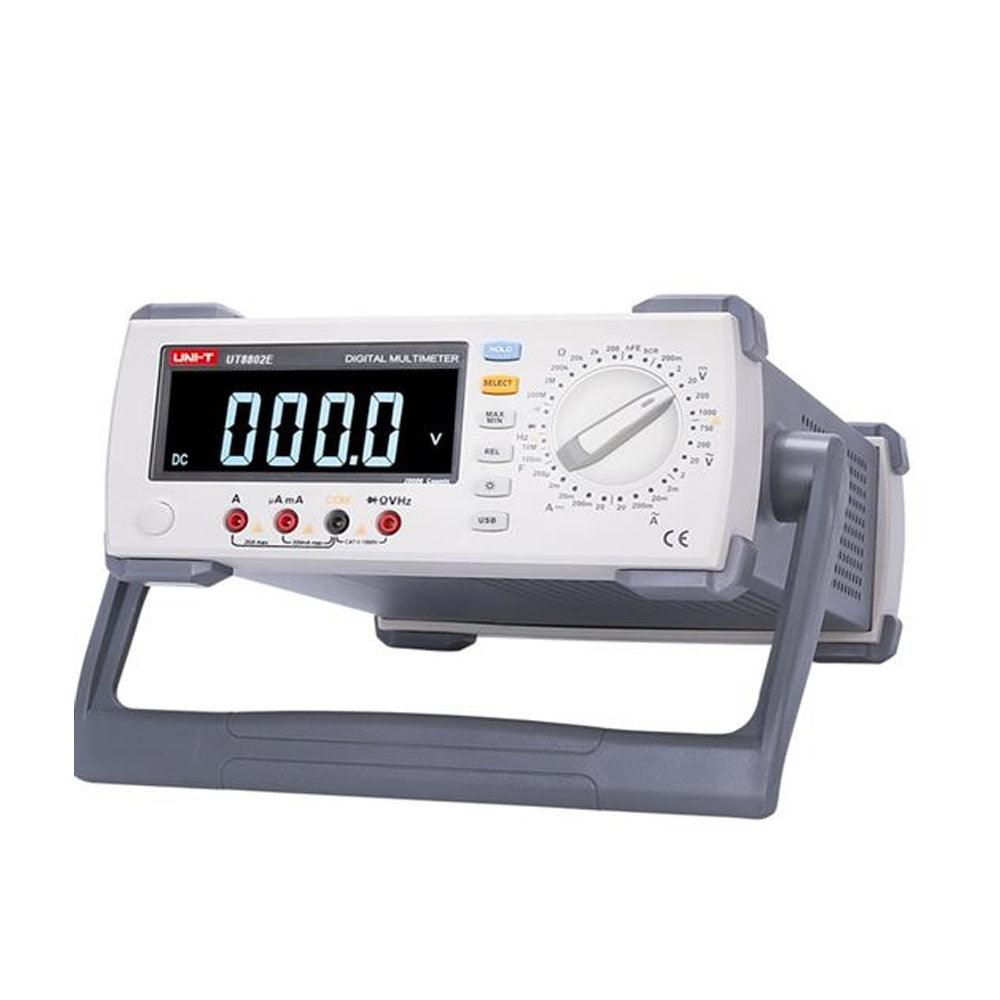

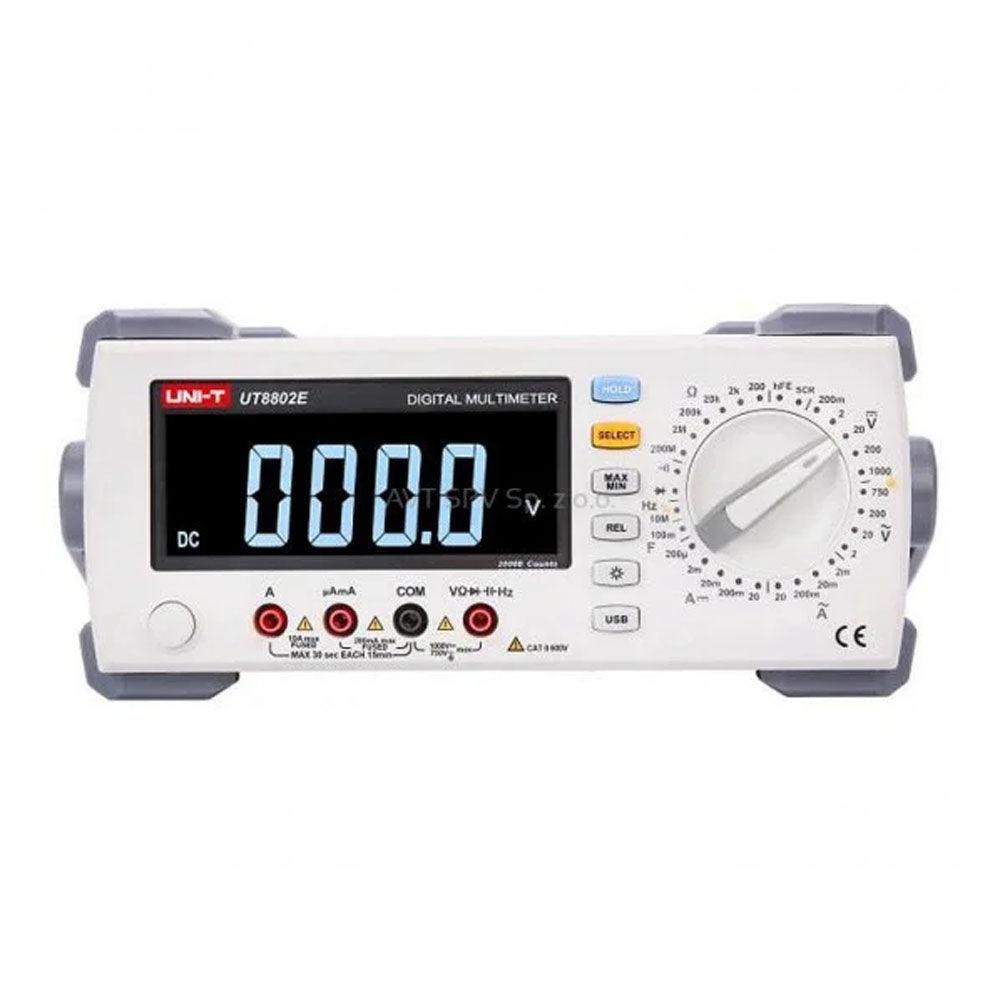

Uni-T UT8802E Benchtop Digital Multimeter In Pakistan

1 total reviews

Regular price Rs 0
Regular price Rs 0 Sale price Rs 0
Sale Sold out
BR2380

Uni-T UT8802E Benchtop Digital Multimeter is a high-performance programmable linear DC power supply, Display count 20000  Interface USB Device  Range Manual  True RMS/diode?  Frequency response (Hz) 1kHz  SCR test 9V, can measure unidirectional and bidirectional SCR (UT8803E)  Continuity buzzer/data hold?  MAX/MIN?  USB interface/LCD backlight?  Input impedance for DCV Around 10M?  AC+DC measurement?  General Characteristics  Power 100V/120V/220V/240V ±10%, 47Hz~63Hz  Display EBTN LCD  Product net weight 3.07kg  Product size 265mm x 110mm x 320mm  Standard accessories USB interface cable, power cord, simple test lead with alligator clips, standard test leads, PC software CD,  Standard individual packing Carton box  Standard quantity per carton 2pcs  Standard carton measurement 380mm x 330mm x 320mm

Features:

  • True RMS (UT8803E)
  • Diode/transistor
  • SCR thyristor test (UT8803E)
  • Inductance measurement (UT8803E)
  • USB interface
  • EBTN LCD screen
  • Data hold
  • MAX/MIN
  • Continuity buzzer

Specifications:

  • DC Voltage: 200mV/2V/20V/200V/1000V
  • 20,000 Count EBTN LCD Display
  • DC Current: 200μA/2mA/20mA/200mA/20A
  • AC Current: 2mA/20mA/200mA/20A
  • Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ
  • Capacitance: 20nF/200nF/2μF/20μF/200μF/2mF/20mF/100mF
  • Frequency: 200Hz~10MHz
  • Frequency: 200Hz~10MHz
  • Duty cycle: 5%~99%
  • Frequency response: 1 kHz
  • USB Interface
  • Data hold
  • MAX/MIN
  • Continuity buzzer
  • Diode/transistor
  • CAT II 600V
  • test

Industryparts.pk is the Best Online Shopping website for Uni-T UT8802E Benchtop Digital Multimeter in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include:

 1 x Uni-T UT8802E Benchtop Digital Multimeter

Uni-T UT8802E Benchtop Digital Multimeter In Pakistan
Uni-T UT8802E Benchtop Digital Multimeter In Pakistan

Description

Uni-T UT8802E Benchtop Digital Multimeter is a high-performance programmable linear DC power supply, Display count 20000  Interface USB Device  Range Manual  True RMS/diode?  Frequency response (Hz) 1kHz  SCR test 9V, can measure unidirectional and bidirectional SCR (UT8803E)  Continuity buzzer/data hold?  MAX/MIN?  USB interface/LCD backlight?  Input impedance for DCV Around 10M?  AC+DC measurement?  General Characteristics  Power 100V/120V/220V/240V ±10%, 47Hz~63Hz  Display EBTN LCD  Product net weight 3.07kg  Product size 265mm x 110mm x 320mm  Standard accessories USB interface cable, power cord, simple test lead with alligator clips, standard test leads, PC software CD,  Standard individual packing Carton box  Standard quantity per carton 2pcs  Standard carton measurement 380mm x 330mm x 320mm

Features:

  • True RMS (UT8803E)
  • Diode/transistor
  • SCR thyristor test (UT8803E)
  • Inductance measurement (UT8803E)
  • USB interface
  • EBTN LCD screen
  • Data hold
  • MAX/MIN
  • Continuity buzzer

Specifications:

  • DC Voltage: 200mV/2V/20V/200V/1000V
  • 20,000 Count EBTN LCD Display
  • DC Current: 200μA/2mA/20mA/200mA/20A
  • AC Current: 2mA/20mA/200mA/20A
  • Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ
  • Capacitance: 20nF/200nF/2μF/20μF/200μF/2mF/20mF/100mF
  • Frequency: 200Hz~10MHz
  • Frequency: 200Hz~10MHz
  • Duty cycle: 5%~99%
  • Frequency response: 1 kHz
  • USB Interface
  • Data hold
  • MAX/MIN
  • Continuity buzzer
  • Diode/transistor
  • CAT II 600V
  • test

Industryparts.pk is the Best Online Shopping website for Uni-T UT8802E Benchtop Digital Multimeter in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include:

 1 x Uni-T UT8802E Benchtop Digital Multimeter

Uni-T UT8802E Benchtop Digital Multimeter In Pakistan
Uni-T UT8802E Benchtop Digital Multimeter In Pakistan
