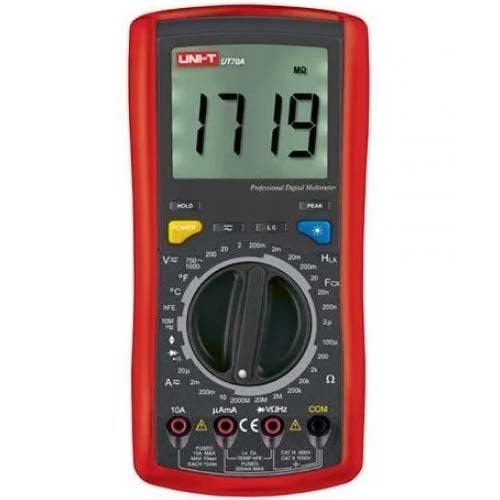

The UT-70A Multimeter is a handheld digital multimeter with an advanced design; This meter is able to measure voltage & current (AC & DC), resistance, capacitance, inductance, frequency, temperature, forward voltage drop of diodes, transistor hFE, continuity test & TTL LOGIC level measurement
Specification:
- DC Voltage 200mV/2V/20V/200V/1000V
- AC Voltage 200mV/2V/20V/200V/750V
- DC Current 20mA/2mA/200mA/10A
- AC Current 20mA/2mA/200mA/10A
- ANTENNA
- Capacitance 20nF/200nF/2μF/100μF
- Frequency 2kHz-10MHz (auto-ranging)
- GENERAL SPECIFICATION
- Power 9V battery: NEDA 1604, 6F22 or 006P
- Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ
- Weight 620g
- Dimensions 195 × 90 × 40mm
Features:
- Manual ranging
- Fused 10A range
- Data Hold function
- Peak Hold function
- Auto power off
- Sleep mode
- Low battery indication
Package Includes:
1 x UNI-T UT70A Digital Multimeter
