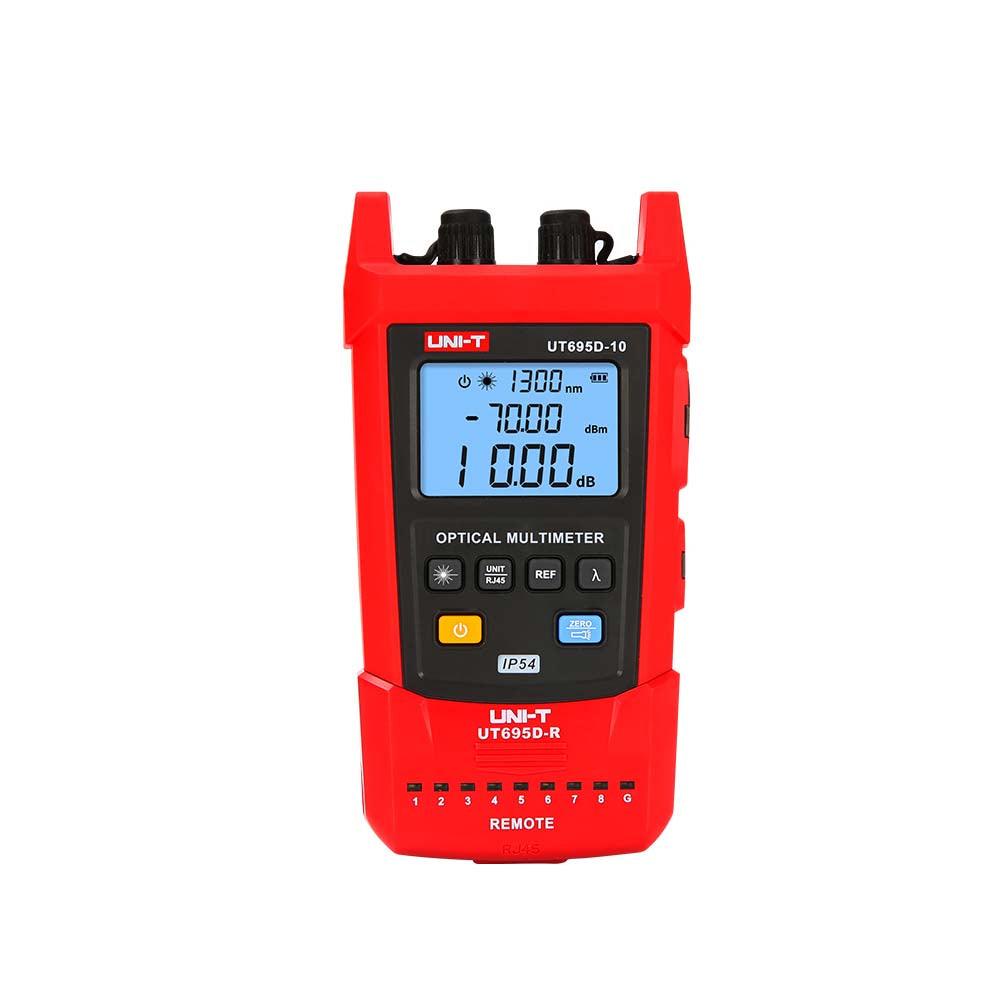

UNI-T UT695D-10 Optical Multimeter in Pakistan

Regular price Rs 7,320
Regular price Rs 8,000 Sale price Rs 7,320
Sale Sold out
BR3334

UT695D-10 includes an optical power meter, visual fault locator, flashlight, and remote cable tester. UT695D-10 is used for optical signal power measurement, opticalfiber line loss test, optical device insertion loss test, optical fiber fault detection, optical fiber breakpoint location, end-to-end optical fiber identification, and more. Designed with IP54 dust and water prevention function, UT695D-10 can be applied to optical cable construction and maintenance, optical fiber communication, optical fiber sensing, optical CATV, and other fields.

Specifications:

  • Specifications Range UT695D-10
  • Certificates CE, RoHS
  • Optical power meter
  • Wavelength range 800nm~1700nm √
  • Calibrated wavelength 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm √
  • Measurement range -70~3dBm √
  • Uncertainty ±5% √
  • Display resolution Linear: 0.1%, logarithmic: 0.01dBm √
  • Connector 2.5mm universal connector √
  • Detector type InGaAs √
  • Visual fault locator
  • Wavelength 650nm±10nm √
  • Power 10mW (measurable optical fiber length: approximately 8~10km) √
  • Mode Continuous/pulse √
  • Connector 2.5mm universal connector √
  • LAN cable sequence test Line sequence measurement (LED1~8, LED_G)
  • General Characteristics
  • Power 1050mAh rechargeable battery
  • Display 42mm x 33mm
  • Product net weight 168g
  • Product size 132mm x 68mm x 31mm
  • Standard accessory USB cable, English manual
  • Standard individual packing Gift box
  • Standard quantity per carton 10pcs
  • Standard carton measurement 305mm x 270mm x 130mm
  • Standard carton gross weight About 2.7kg

Package Includes:

1 x UNI-T C Optical Multimeter

Industryparts.pk is the Best Online Shopping website for UNI-T UT695D-10 Optical Multimeter. Here you get UNI-T UT695D-10 Optical Multimeter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
