Specifications:

• Specifications Range UT682
• Wire tracking features Wire types LAN cable\telephone line\coaxial cable\electric wire
• Indication light for signal strength √
• Live switchboard wire tracing √
• Switchboard wire tracing distance ≥100m
• Telephone lines tracking distance ≥3000m
• Unshielded cables tracking distance ≥320m
• Shielded cables tracking distance ≥320m
• Open and short circuit test √
• Polarity indication for
• telephone lines DCV function, range:
• ±(5V~52V) √
• Telephone lines and LAN cables distinction Jacks distinction √
• Broken wire tracking √
• Transmitter output voltage ≥12V peak-peak
• Transmitter low battery indication 6.6V±0.5V
• Transmitter power supply 9V battery √
• Max transmitter working current 25mA
• Headphone jack for the receiver √
• Receiver power supply 9V battery √
• Max receiver standby current ~10mA √
• Max receiver operating current <40mA (AC, RMS) √
• Wire alignment Line sequence measurement 9 LEDs (LED1~LED8, LED_G) √
• Line sequence measuring speed Fast and slow selectable √
• LAN cable: shielded/unshielded indication √
• Transmitter input
• voltage protection 　 52V DC
• Operating environment Operating temperature: 0~40℃; Storage temperature: -10~50℃
• Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
• General Characteristics
• Product color Red and grey
• Product net weight Transmitter-125g, receiver-153g
• Product size Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm

Package Includes:

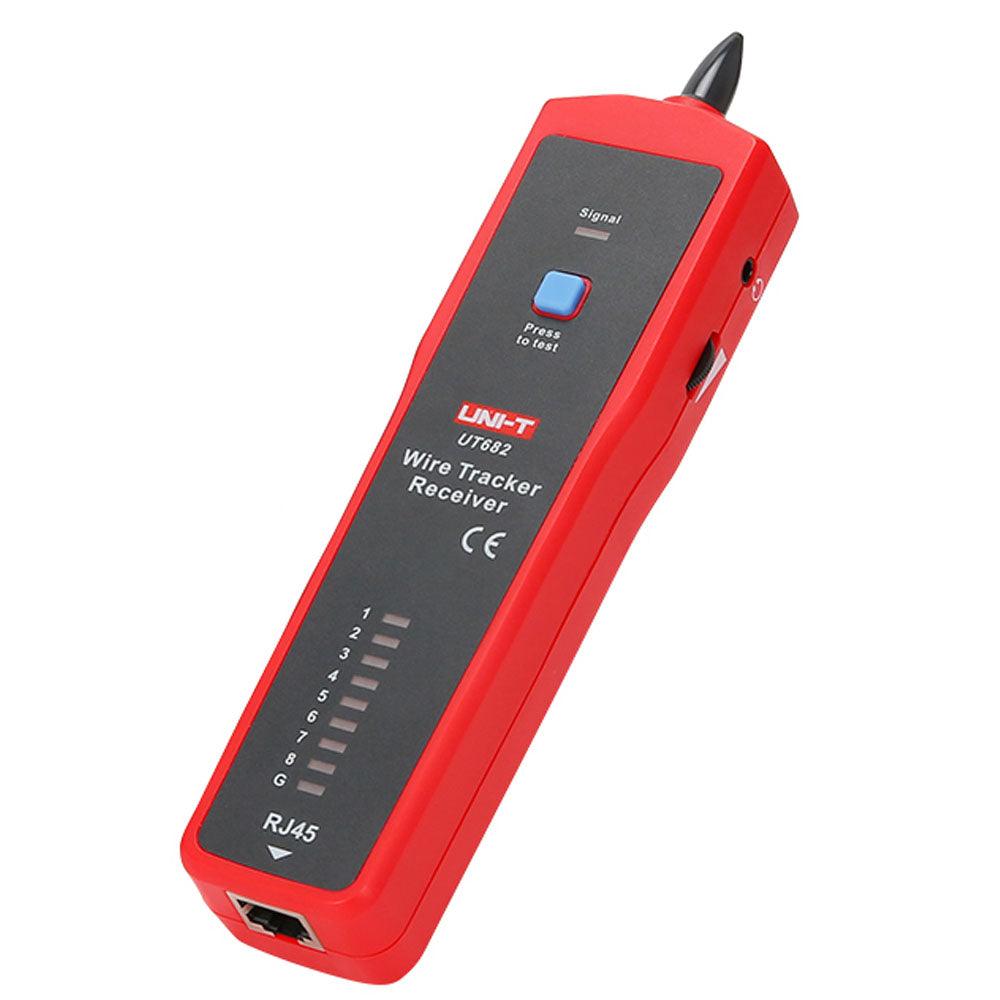

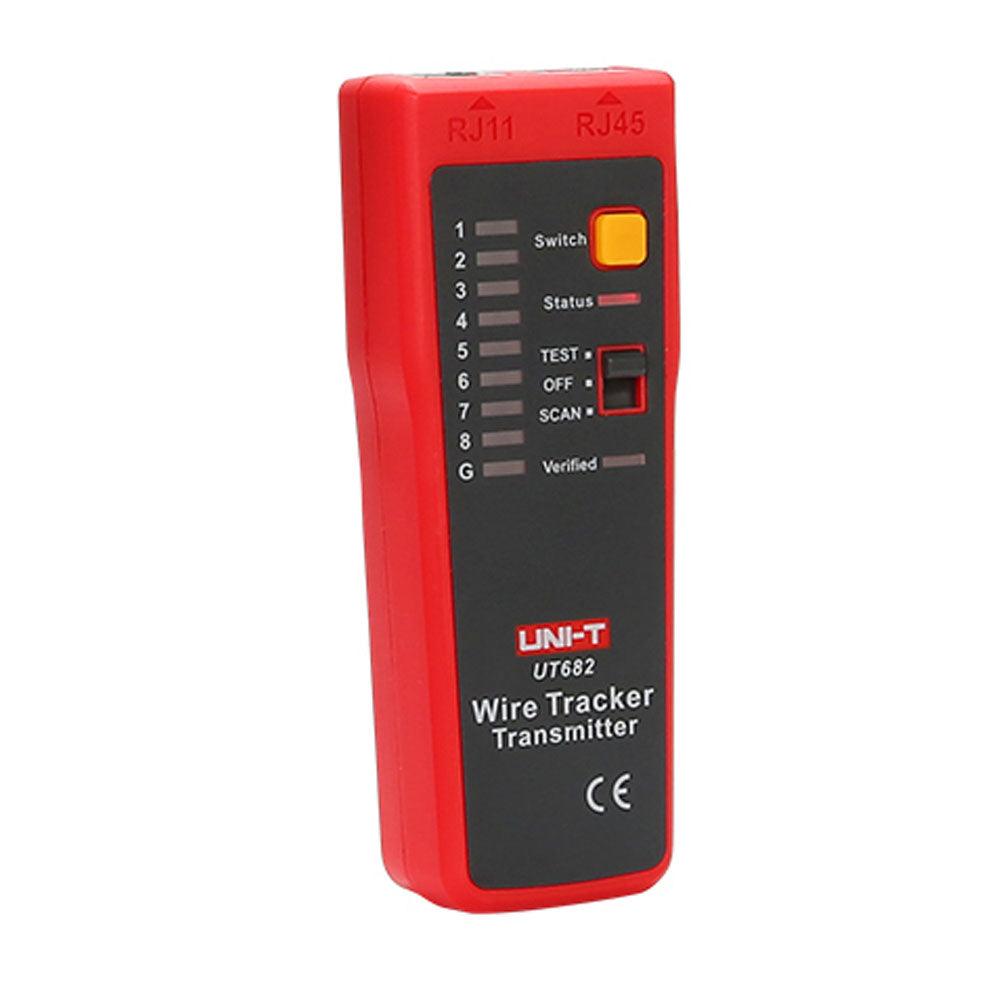

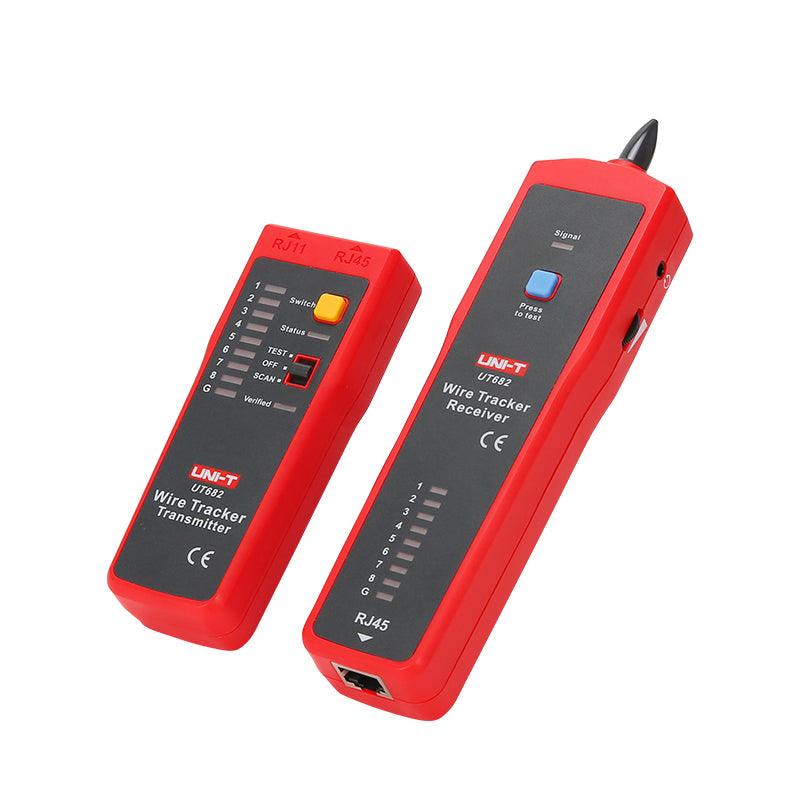

1 x UNI T UT682 Wire Tracker
