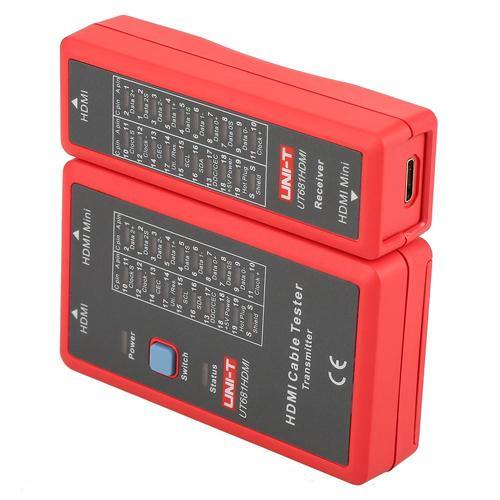

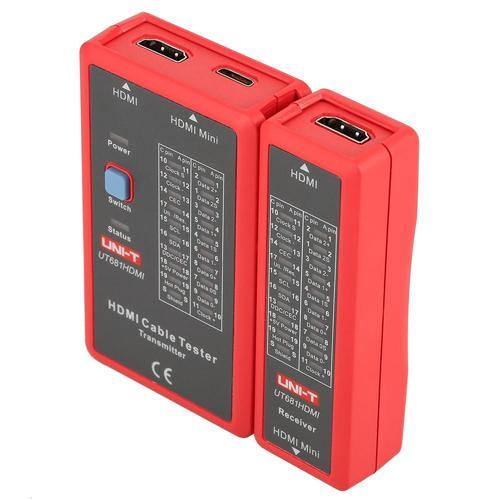

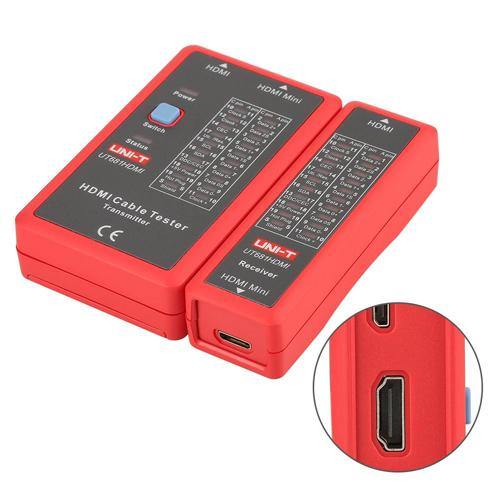

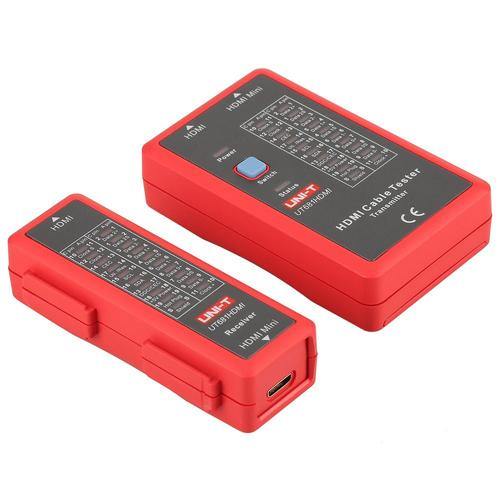

UNI T HDMI Data Cable Tester UT681HDMI consists of a transmitter and receiver. This HDMI cable checker has functions like testing HDMI cable (HDMI 1.2V/1.3V/1.4V/2.0V). This HDMI wire tester has a fast and accurate measurement. This best HDMI cable tester is an ideal tool for personnel to install and maintain low current systems such as communication wires and integrated circuits.

Features:

• UT681 HDMI is a professional tester for testing HDMI cable (HDMI 1.2V/1.3V/1.4V/2.0V).
• Cable tester HDMI can quickly scan and test up to 19 wires and decide which one is a short circuit, open circuit, or in the wrong order.
• HDMI cable tester tool supports two test modes, fast scan mode, and full display mode. Three types of HD cables can be tested: a. Both ends are standard HDMI connectors (Type A - Type A); b. Both ends are HDMI Mini connectors (Type C - Type C); c. One end is the HDMI connector, one end is the HDMI Mini Connector (Type A - Type C).
• When the battery voltage is lower than about 7.2V, the blue light flashes, prompting to replace the battery.
• When no operation during the last 10 minutes, the instrument will automatically shut down.

Specifications:

1. Supported Connector: HDMI (type A); HDMI Mini (Type C)
2. Scan Test Mode: 20 LED (LED1~LED8, LED_G) scan test
3. Full Display Test Mode: 20 LED (LED1~LED8, LED_G) all light on
4. Continuity Test: Yes
5. Short Circuit Test: Yes
6. Crossover Test: Yes
7. Network Cable Test: Shielding/Un-shielding
8. Auto Power-off: After 10 minutes without operation
9. Power Supply: 9V battery
10. Low Voltage Test: Yes
11. Operating Temperature: 0℃~40℃
12. Storage Temperature: -10℃~50℃
13. Operating Humidity: 20%~80% RH
14. Storage Humidity: 10%~90% RH
15. Altitude: Less than 2000 meters
16. Weight: 175g(approx.)
