Features:

1. . The professional sorting function can judge HI/IN/LO resistance.
2. With efficient processing of remote control and data acquisition functions.
3. Three test modes: automatic, manual, and nominal range can be realized.
4. Equipped with a 4.3-inch LCD screen for easy reading.
5. File management, save and browse data functions.
6. Configure rich interfaces.

Specifications:

• Model: UT3513
• Resistance range
• 20m Q/200m Q/2Q/20Q /200 Q/2kQ/20kQ
• Resolution
• 1 u Q/10 u Q/100 u Q/lmO/lOmQ/lOOmQ/1 Q/10Q/100Q
• Test current
• 1A/1A/100mA/10mA/1mA/1mA/100 uA/10 u A/l uA
• Testing terminal opencircuit voltage
• ＜1V/＜1V/＜1V/＜1V/＜5V/＜5V/＜5V/＜5V/＜3V/
• Measured parameter
• DC resistance
• Basic accuracy
• Slow: 0. 1%; Medium: 0. 2%
• Maximum reading
• 22000
• Range mode
• Auto/Manual/nominal
• Calibration
• Short-circuit full range zeroing
• Sorting function
• 3types of resistance and voltage input: exceeds upper limit/exceeds lower limit/within the range,2 types of sorting result output: PASS/FAIL
• Comparing method
• Absolute tolerance, percentage tolerance, direct-reading comparison
• Trigger mode
• Internal, external
• Test terminal
• Four-terminal measurement
• Button functions
• Lock 一一 keyboard lock, OK 一一 screenshot
• System setup
• Language: Chinese/English, key tone setting
• Interfaces & protocols
• Handler interface, RS232, USB DEVICE, and USB HOST communication interface, SCPI and Modbus protocol
• Upper computer software
• V
• Power
• AC 100~240V 50/60Hz
• Display
• 4.3-inches LCD

Package Includes:

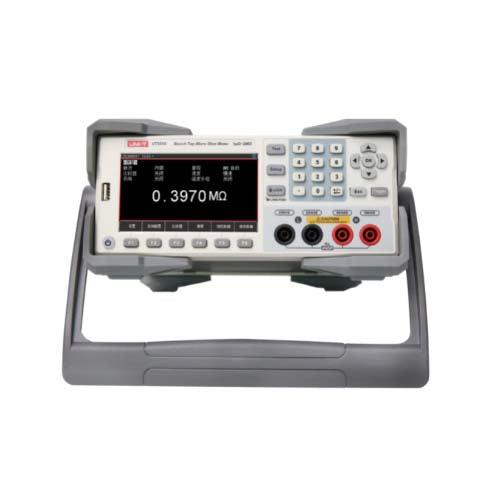

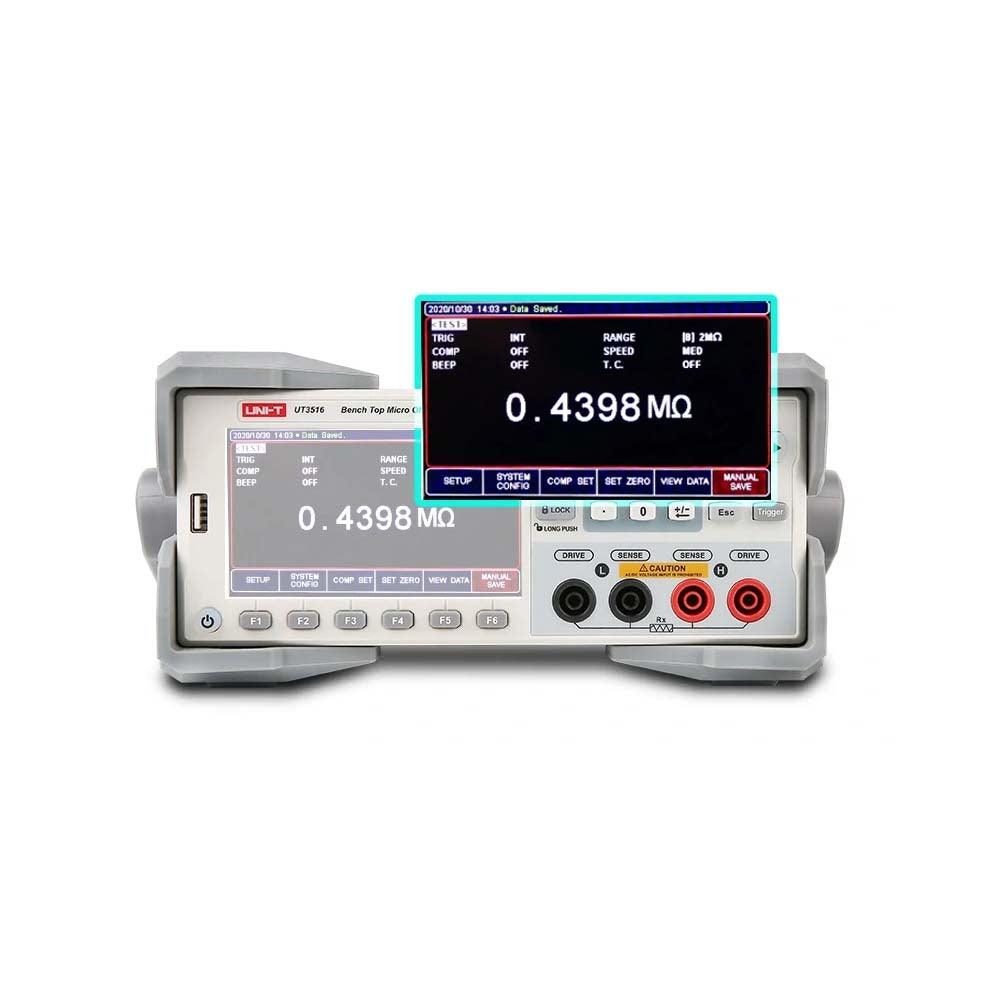

1 x UNI-T UT3513 DC Resistance Tester Microohmmeter
