UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and use a 3-color LED and audio alarm to quickly determine if the coating being tested falls within the preset range, greatly increasing work efficiency.

UT343 display is auto rotatable. This CE-certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.

Features:

• Automatic identification of iron and non-ferrous substrates
• The sensor uses diamond clamping technology, which is accurate, wear-resistant, and stable.
• Single point and two-point calibration to ensure measurement accuracy
• Single point, multi-point quick judgment, and prompt
• Red, green, and yellow warning lights
• The screen display content is automatically rotated
• 500 sets of storage data and USB data transmission

Specifications:

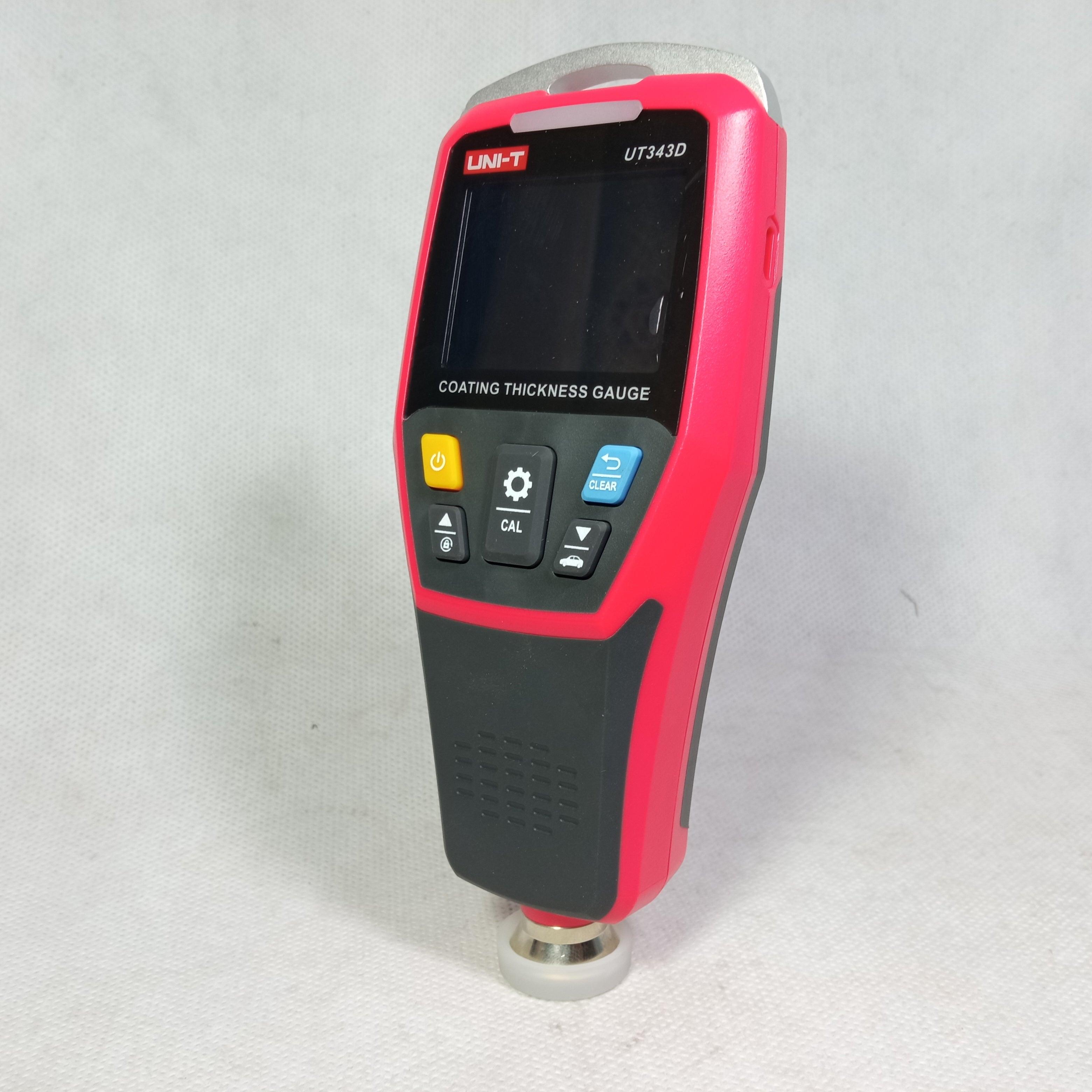

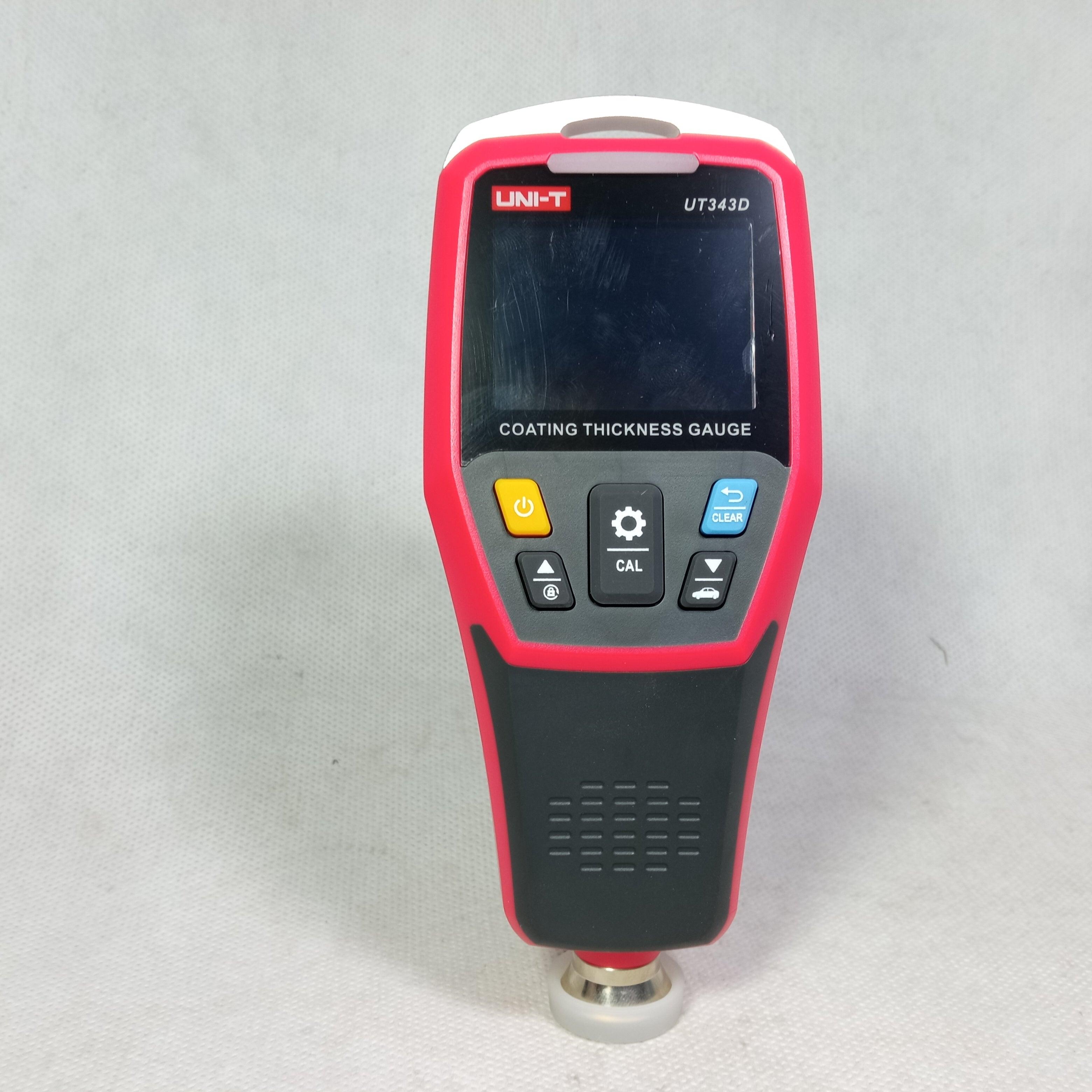

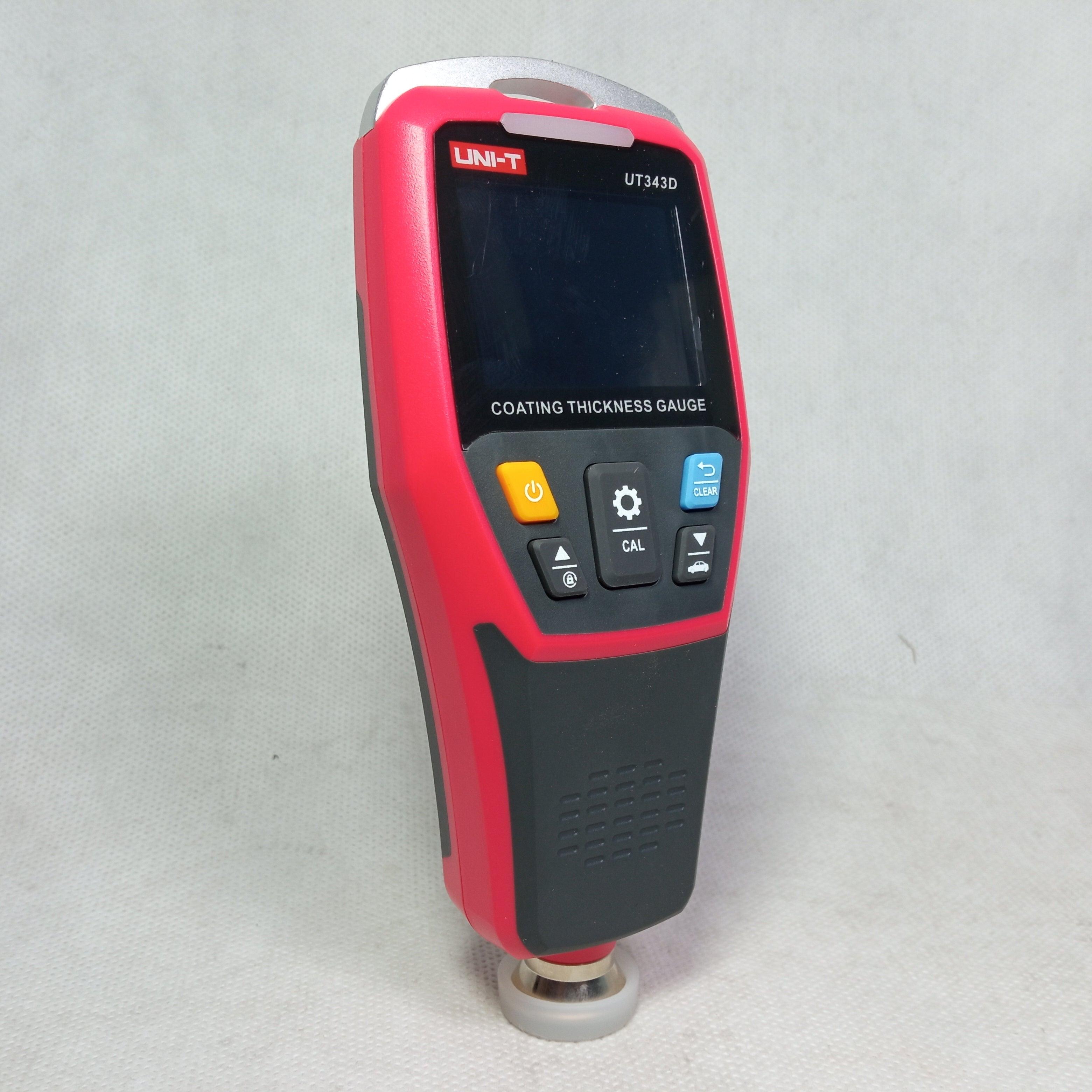

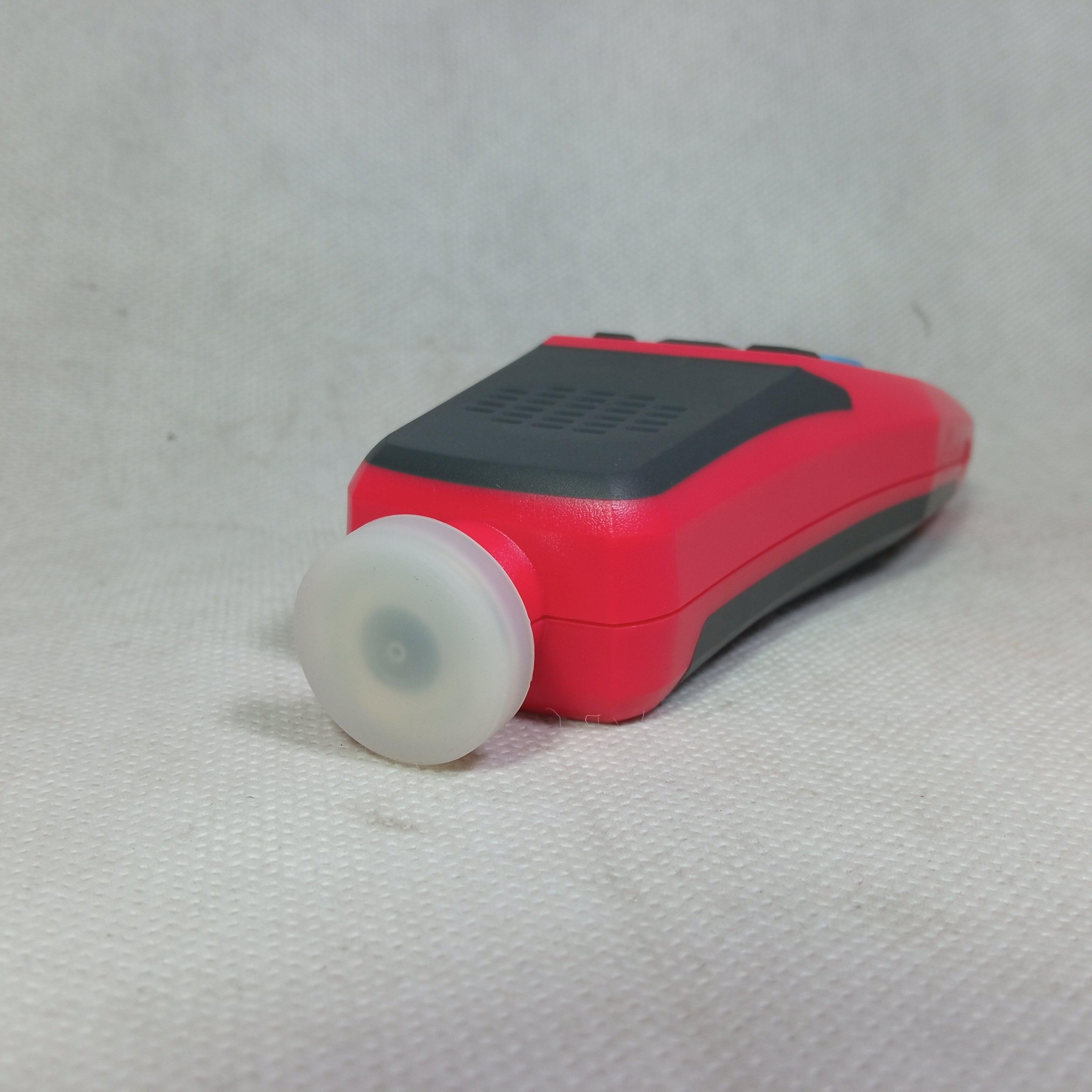

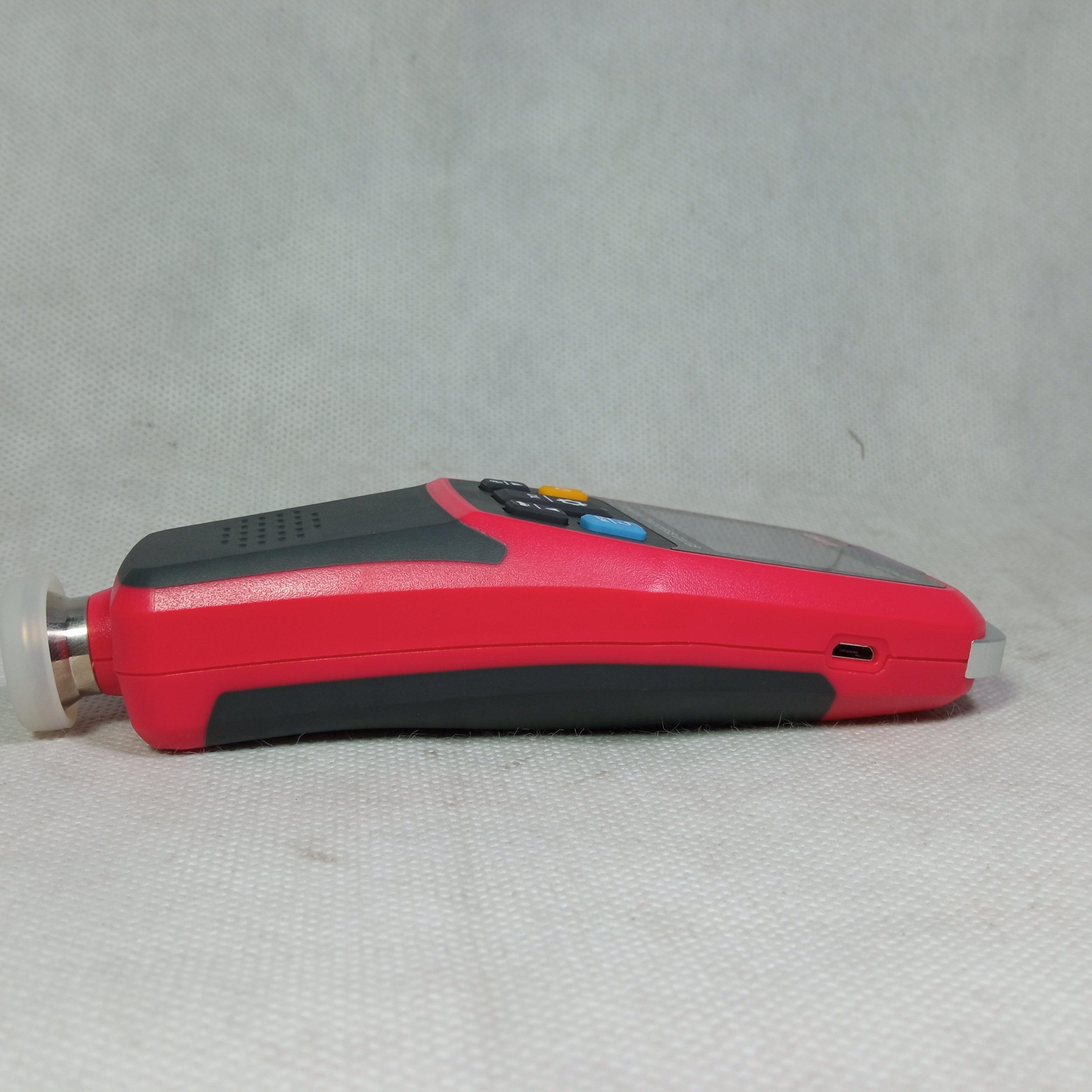

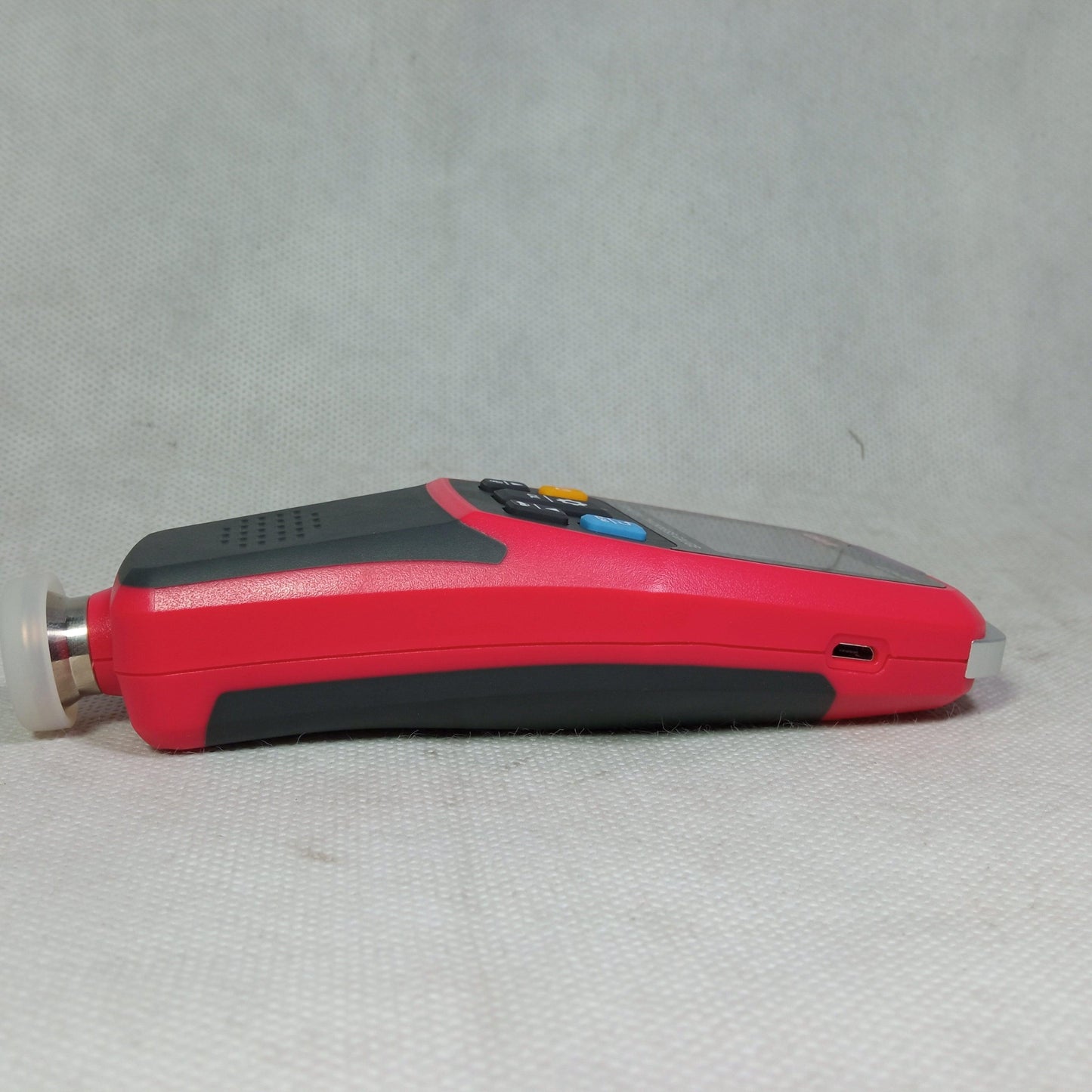

• Product Name UNI-T UT343D Coating Thickness Gauge
• Color Red and grey
• Measuring range 0~1250um
• Resolution 0.1um (0~99.9um); 1um (100~1250um)
• General Specification
• Accuracy ±(3%H+1)um
• Data storage 500 groups
• Display Type 2.0-inches TFT LCD (320 x 240 pixels)
• Measurement method Single/Continuous
• Measurement Modes Max/Min/Avg
• Metal Type Ferrous/ non-ferrous
• Power 3V battery (R03) x 2
• Weight 175g
• Dimension 153.5mm x 64.5mm x 41mm

Industryparts.pk is the Best Online Shopping website for UNI-T UT343D Coating Thickness Gauge Meter. Here you get UNI-T UT343D Coating Thickness Gauge Meter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x UNI-T UT343D Coating Thickness Gauge Meter
