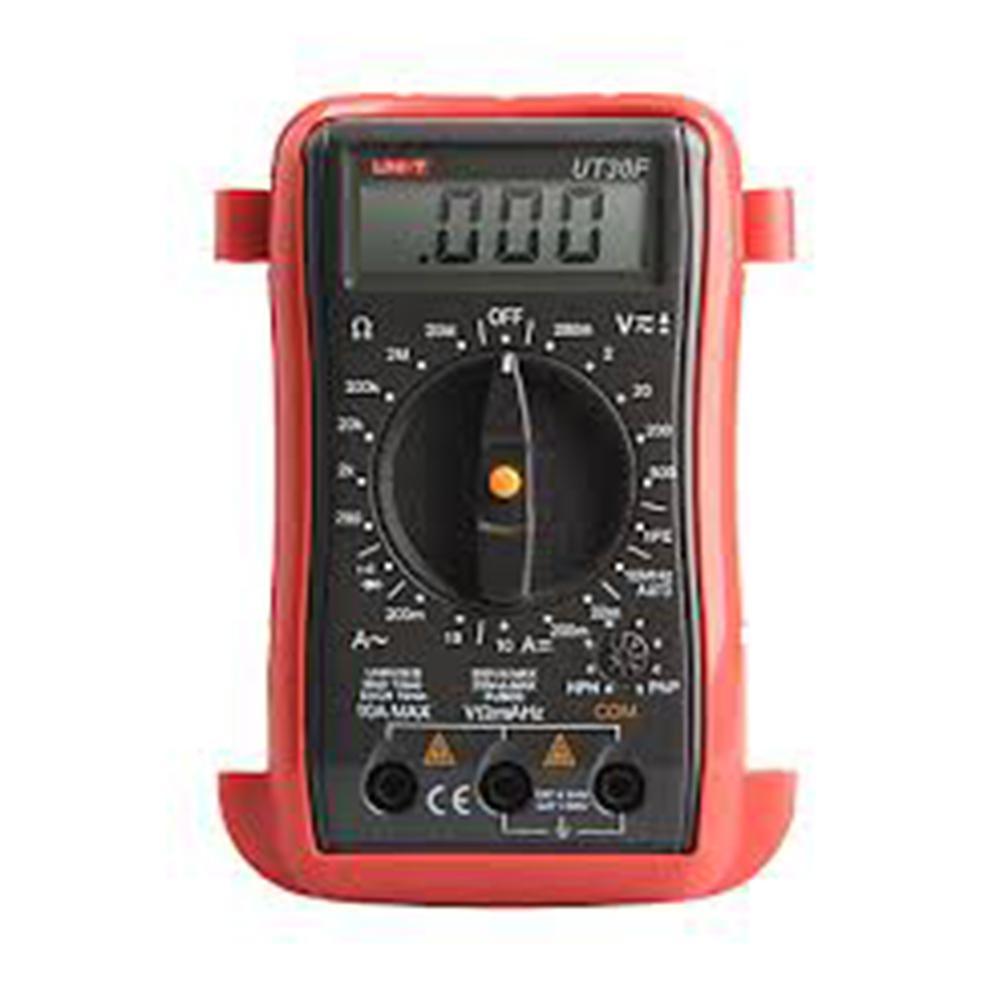

UNI-T UT30F UT-30F Handheld LCD Digital Multimeters
Regular price
Rs 0
Regular price
Rs 3,000
Sale price
Rs 0
Unit price/ per
Sale
Sold out
BR2353-p
Couldn't load pickup availability
UNI-T UT30F UT-30F Handheld LCD Digital Multimeters BR2353
DC Voltage 200mV/2000mV/20V/200V/500V +/-(0.5%+2)
AC Voltage 200mV/2V/20V/200V/500V +/-(1%+3)
DC Current 20mA/200mA/10A +/-(1%+2)
AC Current 200mA/10A +/-(1.8%+2)
Resistance 200?/2K?/20K?/200K?/2M?/20M? +/-(0.8%+2)
Frequency 2kHz - 10MHz (Auto Ranging) +/-(0.1%+3)
Specifications
Net Dimensions (cm) 13.0*7.4*4.1
Net Weight (kg) 0.16
SPECIAL FUNCTIONS:
Transistor
Diode
Continuity buzzer
Sleep mode
Data Hold
Full icon display
Low battery display
Input impedance for DC Voltage: 10 MOhm
Max. display 19999 (60 x 54mm)
GENERAL CHARACTERISTICS:
Power: 9V bat. (6F22)
Product size: 179 x 88 x 39mm
Product weight: 350g
Manufacturer: UNI-TREND
iC60N curve B, C, D circuit breakers are multi-standard circuit breakers which combine circuit protection against short-circuit currents and circuit protection against overload currents
VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, wear, or operator experience, even in the most demanding environments; The green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and re-closing loads for easier building management and reduced downtime
Insulated terminals IP20
Large circuit labeling area
Double clip for dismounting with comb busbar in place
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
Part Number A9F74216
Description
UNI-T UT30F UT-30F Handheld LCD Digital Multimeters BR2353
DC Voltage 200mV/2000mV/20V/200V/500V +/-(0.5%+2)
AC Voltage 200mV/2V/20V/200V/500V +/-(1%+3)
DC Current 20mA/200mA/10A +/-(1%+2)
AC Current 200mA/10A +/-(1.8%+2)
Resistance 200?/2K?/20K?/200K?/2M?/20M? +/-(0.8%+2)
Frequency 2kHz - 10MHz (Auto Ranging) +/-(0.1%+3)
Specifications
Net Dimensions (cm) 13.0*7.4*4.1
Net Weight (kg) 0.16
SPECIAL FUNCTIONS:
Transistor
Diode
Continuity buzzer
Sleep mode
Data Hold
Full icon display
Low battery display
Input impedance for DC Voltage: 10 MOhm
Max. display 19999 (60 x 54mm)
GENERAL CHARACTERISTICS:
Power: 9V bat. (6F22)
Product size: 179 x 88 x 39mm
Product weight: 350g
Manufacturer: UNI-TREND
iC60N curve B, C, D circuit breakers are multi-standard circuit breakers which combine circuit protection against short-circuit currents and circuit protection against overload currents
VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, wear, or operator experience, even in the most demanding environments; The green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and re-closing loads for easier building management and reduced downtime
Insulated terminals IP20
Large circuit labeling area
Double clip for dismounting with comb busbar in place
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
Part Number A9F74216
