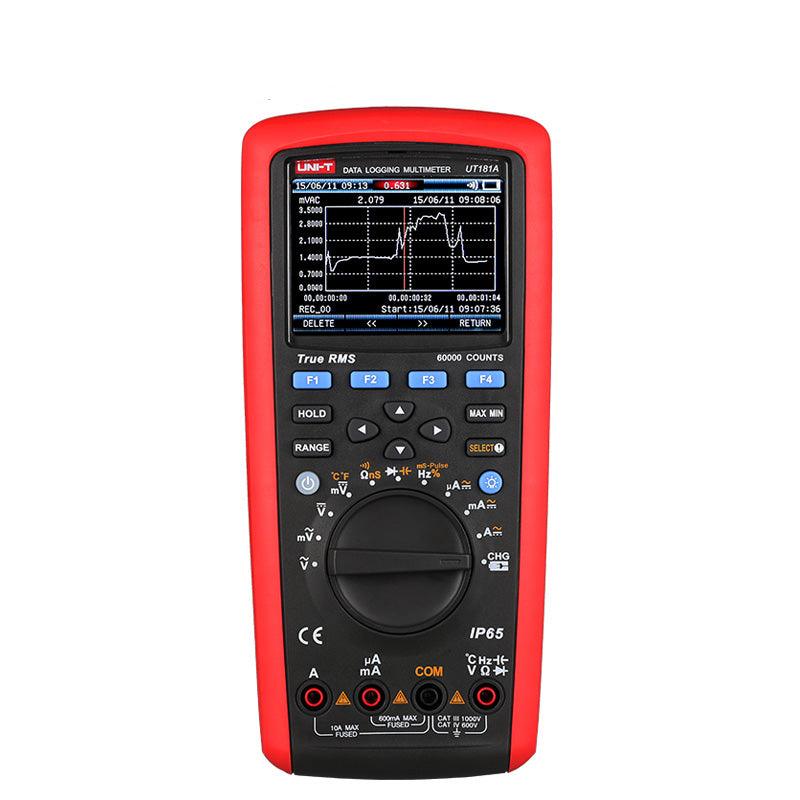

UNI-T UT181A True RMS Datalogging Meter is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the data logging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long-term monitoring.

Features:

1. Display Count 60000
2. Auto Range
3. Manual Range
4. True RMS
5. Bandwidth 100kHz
6. AC+DC
7. Low Pass Filter
8. dBV/dBm
9. Continuity Buzzer
10. Diode
11. Duty Cycle
12. Dual Temperature Measurement
13. Data Hold
14. Peak Hold
15. Relative Mode
16. Datalogging 20000
17. Trend Capture
18. MAX/MIN/AVG
19. Date Time Display
20. Data Comparison
21. Display Type 3.5" 320x240 64k colour
22. Backlight Adjustment
23. Analogue Bargraf
24. USB Interface
25. Mis-Plug Alarm
26. Battery Indication
27. Auto Power Off
28. Re-Chargeable Battery
29. Input Protection
30. Input Impedance DCV 10MΩ+

Specifications:

• DC Voltage 60mV/600mV/6V/60V/600V/1000V ±(0.025%+5)
• AC Voltage 60mV/600mV/6V/60V/600V/1000V ±(0.3%+30)
• DC Current 600μA/6000μA/60mA/600mA/10A ±(0.08%+10)
• AC Current 600μA/6000μA/60mA/600mA/10A ±(0.6%+20)
• Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.05%+2)
• Admittance 60nS ±(2%+10)
• Capacitance 6nF/60nF/600nF/6μF/600μF/6mF/60mF ±(2%+5)
• Frequency (Hz) 10Hz - 60MHz ±(0.01%+5)
• Temperature -40°C°~1000°C * ±(1.5%+50)

Package Includes:

1 x UNI-T UT181A True RMS Datalogging Meter
