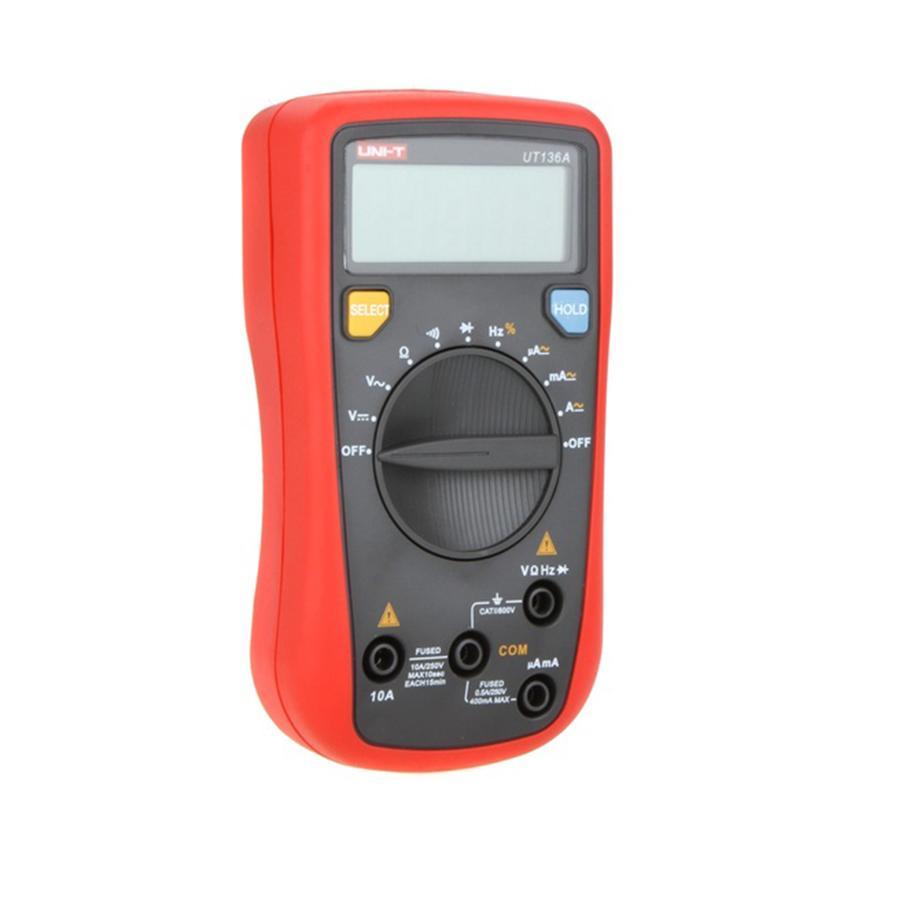

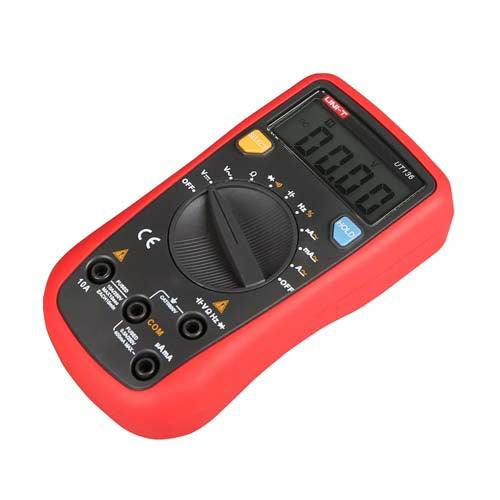

UNI-T UT136A Digital Multimeters with Frequency Duty Cycle Test Multimetro LCR Meter in Pakistan

SKU:BR2334

Regular price Rs 0
Regular price Rs 2,500 Sale price Rs 0
Sale Sold out

It is more reliable, easy to use. This new electronics kit from UNI-T combines the new UT 136A TRMS digital multimeter with the UT 203 AC/DC digital current clamp. It helps with troubleshooting and offers considerable savings on the respective individual prices.

Specification:

  • DC voltage: 400mV/4V/40V/400V/500V ±(0.8%+1)
  • AC voltage: 400mV/4V/40V/400V/500V ±(1.2%+3)
  • DC current: 400uA/4mA/40mA/400mA/4A/10A ±(1.0%+2)
  • AC Current: 400uA/4mA/40mA/400mA/4A/10A ±(1.2%+5)
  • Resistance: 400/4000/40k/400k/4M/40M ohm ±(1.0%+2)
  • Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3)
  • Duty Cycle: 0.1%~99.9%
  • Diode Testing:
  • Continuity Buzzer:
  • Auto Power Off:
  • Low Battery Display:
  • Input Impedance for DC Voltage Measure:
  • Auto Data Hold:
  • Max Display: 3999
  • Specifications: Range Best Accuracy
  • Model: UT136A
  • Temperature:‘-40C~1000C

General Characteristics:

  1. Power: 9V Battery(6F22) ( No included)
  2. LCD Size: 49mm×18mm
  3. Product Color: Red +Grey
  4. Product Size: 72mm×137mm×35mm
  5. Standard Accessories: Test leads, Point type temperature probe(UT136C Only)

Packages Include:

 1 x UNI-T UT136A Digital Multimeters

UNI-T UT136A Digital Multimeters with Frequency Duty Cycle Test Multimetro LCR Meter in PakistanUNI-T UT136A Digital Multimeters with Frequency Duty Cycle Test Multimetro LCR Meter in Pakistan
