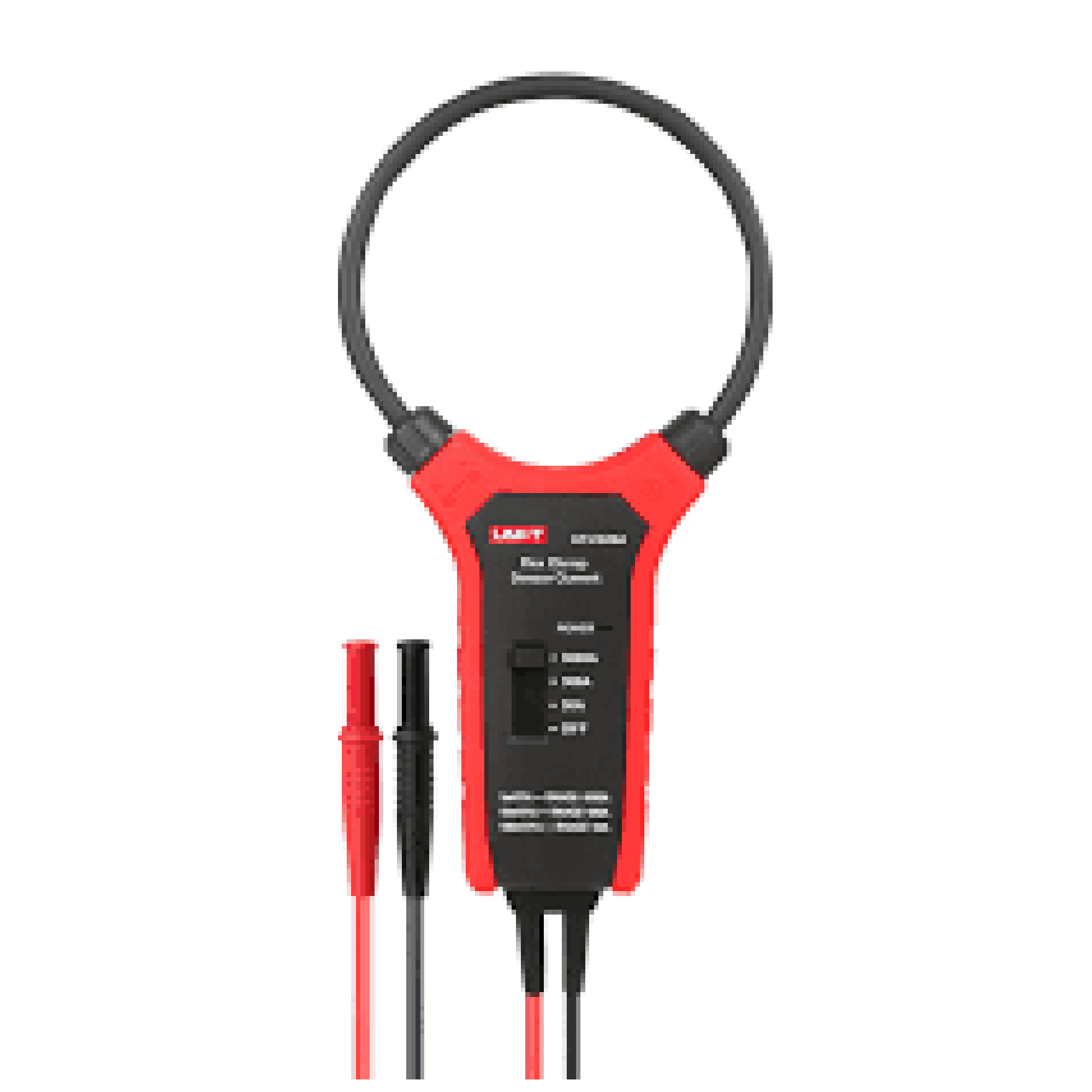

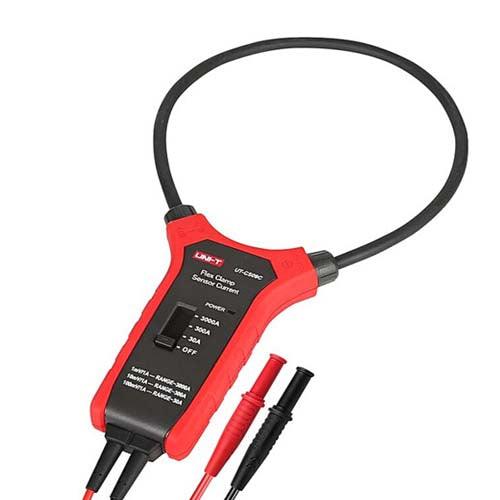

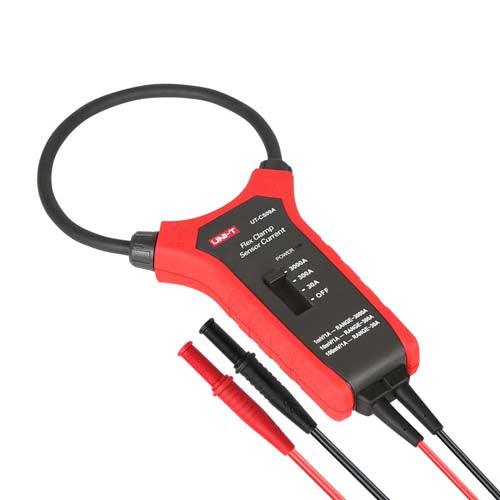

UNI-T UT-CS09A AC 3000A Flexible Clamp Meter in Pakistan

1 total reviews

Regular price Rs 13,750
Regular price Rs 16,250 Sale price Rs 13,750
Sale Sold out
BR2367

UNI-T UT-CS09A AC 3000A Flexible Clamp Meter series flex clamp sensor solves problems in measuring high current conductors in tight spaces. UNI-T UT-CS09A is now available in Pakistan.

Features :

  1.  Flex clamp can measure from 1.5A to 3000A current
  2.  2m drop proof
  3.  Test leads can support up to 15kg load
  4.  Safety rating: CAT IV 600V
  5.  Certification: CE&ETL

Specifications:

  •  Model  :  UT-CS09A
  •  AC current (resolution) :   30A (0.1A)    ±(3%+5)    300A (1A)    3000A (10A)
  •  Frequency response  :  45Hz~500Hz (sine wave)
  •  Flex coil length   : 254mm (10 inches)
  •  Function selection (SELECT)   : Manual
  •  Drop test  :  1m
  •  Operating temperature   : 0°C~50°C
  •  Storage temperature  :  -20°C~60°C
  •   Storage humidity  :  ?80%RH
  •  Low battery indication  :  About 3.3V
  •  Power  :  1.5V AAA battery×3

Package Includes:

1 x UNI-T UT-CS09A AC 3000A Flexible Clamp Meter

Industryparts.pk is the Best Online Shopping website for UNI-T UT-CS09A AC 3000A Flexible Clamp Meter. Here you get UNI-T UT-CS09A AC 3000A Flexible Clamp Meter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Description

UNI-T UT-CS09A AC 3000A Flexible Clamp Meter series flex clamp sensor solves problems in measuring high current conductors in tight spaces. UNI-T UT-CS09A is now available in Pakistan.

Features :

  1.  Flex clamp can measure from 1.5A to 3000A current
  2.  2m drop proof
  3.  Test leads can support up to 15kg load
  4.  Safety rating: CAT IV 600V
  5.  Certification: CE&ETL

Specifications:

  •  Model  :  UT-CS09A
  •  AC current (resolution) :   30A (0.1A)    ±(3%+5)    300A (1A)    3000A (10A)
  •  Frequency response  :  45Hz~500Hz (sine wave)
  •  Flex coil length   : 254mm (10 inches)
  •  Function selection (SELECT)   : Manual
  •  Drop test  :  1m
  •  Operating temperature   : 0°C~50°C
  •  Storage temperature  :  -20°C~60°C
  •   Storage humidity  :  ?80%RH
  •  Low battery indication  :  About 3.3V
  •  Power  :  1.5V AAA battery×3

Package Includes:

1 x UNI-T UT-CS09A AC 3000A Flexible Clamp Meter

Industryparts.pk is the Best Online Shopping website for UNI-T UT-CS09A AC 3000A Flexible Clamp Meter. Here you get UNI-T UT-CS09A AC 3000A Flexible Clamp Meter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
