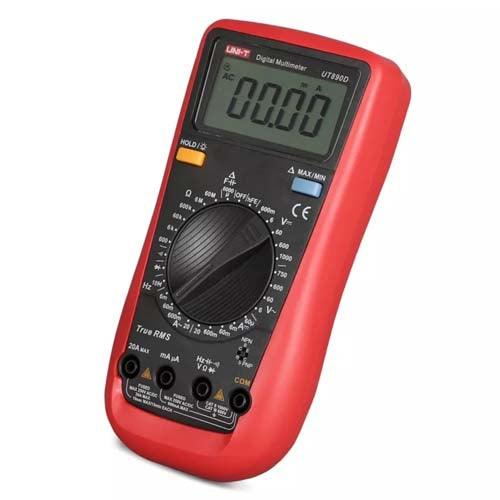

Uni-T UT 890D Digital Multimeter in Pakistan

1 total reviews

Regular price Rs 3,840
Regular price Rs 4,000 Sale price Rs 3,840
Sale Sold out
BR2362
The Uni-T UT 890D Digital Multimeter  are designed with large LCD display. UT890D  is cheap accurate multimeter for very tight budgets. It is now available in Pakistan.

Features:

  • True RMS measure for Current and Voltage. 6000 Counts display range.
  • REL function for Capacitance measuring. Minimum resolution rate 1pF, Maximum measuring range up to 6000uF.
  • Overload protection up to 600V for Capacitance, Resistance, Buzzer, Diode and Frequency measuring.
  • High accurate frequency measuring function. Minimum resolution rate 0.001Hz, Unique (MAX-MIN) value calculate function.
  • Data hold, backlight, Auto off. One 9V6F22 Battery Included.

Specifications:

  • Display range: 6000
  • Manual range:Yes
  • True RMS: Yes
  • Frequency respond: Yes (40Hz~1KHz) (Sine Wave, triangular wave)
  • Max/Min; (Max-Min) Calculate: Yes
  • Diodes test: Yes
  • Auto power off: Yes (About 15 minutes)
  • Continuity test: Yes (buzzer)
  • Low voltage indicating: Yes
  • Data hold: Yes
  • REL:Yes
  • LCD backlight: Yes
  • hFE: Yes
  • Input Impedance for DC Voltage Measurement:10M
  • Power supply: 9V6F22 Battery (Battery Included)
  • Weight:300 gram(g.)
  • LCD screen dimension: 63mm*29mm
  • Safety grade: CE / CAT.II 1000V / CAT.III 600V
  • External dimension: 186mm*91mm*39mm
  • ACCURACY
  • DC voltage
  • 600.0mV: ±(0.5%+4)
  • 6.000V/60.00V/600.0V: ±(0.5%+2)
  • 1000V: ±(0.7%+10)
  • AC voltage
  • 6.000V/60.00V/600.0V: ±(0.8%+3)
  • 750V: ±(1.0%+10)
  • DC Current
  • 60.00uA/6.000mA/60.00mA: ±(0.8%+8)
  • 600.0mA: ±(1.2%+5)
  • 20A: ±(2.0%+5)
  • AC Current
  • 6.000mA/60.00mA: ±(1.0%+12)
  • 600.0mA: ±(2.0%+3)
  • 20A: ±(3.0%+5)
  • Resistance
  • 600.0Ω: ±(0.8%+5)
  • 6.000kΩ¸/60.00kΩ¸/600.0kΩ¸/6.000MΩ: ±(0.8%+3)
  • 60.00MΩ:± (1.0%+25)
  • Capacitance
  • 6.000nF: ±(5.0%+35)
  • 60.00nF ~ 600.0uF: ±(2.5%+20)
  • 6000uF: ±(5%+10)
  • Frequency
  • 9.999Hz ~ 9.999MHz: ±(0.1%+5)
  • Measuring range:
  • 10Hz~10MHz (Auto range)
  • ≤100kHz: 100mVRMS≤ Input ≤30VRMS,
  • >100kHz~1MHz: 200mVRMS ≤ Input ≤ 30VRMS,
  • >1MHz: 600mVRMS ≤ Input ≤ 30VRMS

Package Includes:

 1 x Uni-T UT 890D Digital Multimeter

Description

The Uni-T UT 890D Digital Multimeter  are designed with large LCD display. UT890D  is cheap accurate multimeter for very tight budgets. It is now available in Pakistan.

Features:

  • True RMS measure for Current and Voltage. 6000 Counts display range.
  • REL function for Capacitance measuring. Minimum resolution rate 1pF, Maximum measuring range up to 6000uF.
  • Overload protection up to 600V for Capacitance, Resistance, Buzzer, Diode and Frequency measuring.
  • High accurate frequency measuring function. Minimum resolution rate 0.001Hz, Unique (MAX-MIN) value calculate function.
  • Data hold, backlight, Auto off. One 9V6F22 Battery Included.

Specifications:

  • Display range: 6000
  • Manual range:Yes
  • True RMS: Yes
  • Frequency respond: Yes (40Hz~1KHz) (Sine Wave, triangular wave)
  • Max/Min; (Max-Min) Calculate: Yes
  • Diodes test: Yes
  • Auto power off: Yes (About 15 minutes)
  • Continuity test: Yes (buzzer)
  • Low voltage indicating: Yes
  • Data hold: Yes
  • REL:Yes
  • LCD backlight: Yes
  • hFE: Yes
  • Input Impedance for DC Voltage Measurement:10M
  • Power supply: 9V6F22 Battery (Battery Included)
  • Weight:300 gram(g.)
  • LCD screen dimension: 63mm*29mm
  • Safety grade: CE / CAT.II 1000V / CAT.III 600V
  • External dimension: 186mm*91mm*39mm
  • ACCURACY
  • DC voltage
  • 600.0mV: ±(0.5%+4)
  • 6.000V/60.00V/600.0V: ±(0.5%+2)
  • 1000V: ±(0.7%+10)
  • AC voltage
  • 6.000V/60.00V/600.0V: ±(0.8%+3)
  • 750V: ±(1.0%+10)
  • DC Current
  • 60.00uA/6.000mA/60.00mA: ±(0.8%+8)
  • 600.0mA: ±(1.2%+5)
  • 20A: ±(2.0%+5)
  • AC Current
  • 6.000mA/60.00mA: ±(1.0%+12)
  • 600.0mA: ±(2.0%+3)
  • 20A: ±(3.0%+5)
  • Resistance
  • 600.0Ω: ±(0.8%+5)
  • 6.000kΩ¸/60.00kΩ¸/600.0kΩ¸/6.000MΩ: ±(0.8%+3)
  • 60.00MΩ:± (1.0%+25)
  • Capacitance
  • 6.000nF: ±(5.0%+35)
  • 60.00nF ~ 600.0uF: ±(2.5%+20)
  • 6000uF: ±(5%+10)
  • Frequency
  • 9.999Hz ~ 9.999MHz: ±(0.1%+5)
  • Measuring range:
  • 10Hz~10MHz (Auto range)
  • ≤100kHz: 100mVRMS≤ Input ≤30VRMS,
  • >100kHz~1MHz: 200mVRMS ≤ Input ≤ 30VRMS,
  • >1MHz: 600mVRMS ≤ Input ≤ 30VRMS

Package Includes:

 1 x Uni-T UT 890D Digital Multimeter
