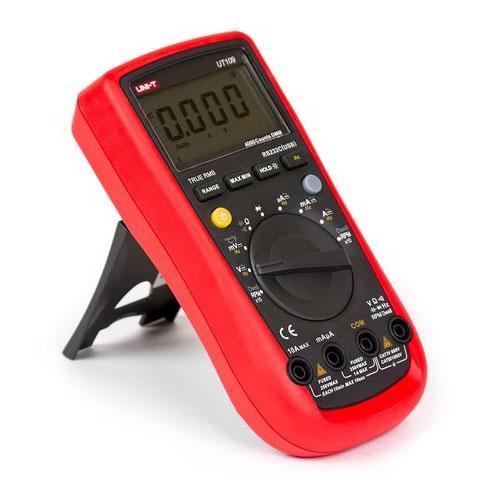

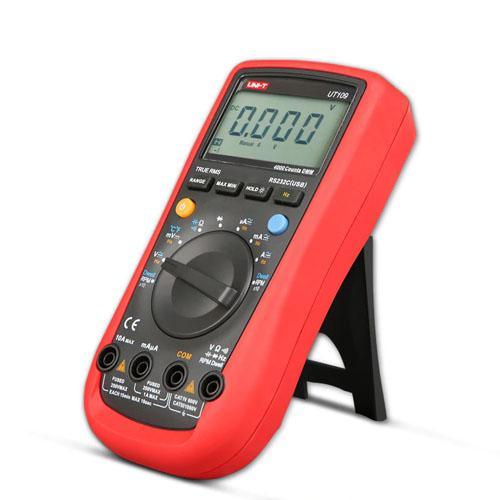

UNI T UT 109 Digital Multi Meter UT109 for Automotive Multi Meters in Pakistan
SKU:BR2408
Couldn't load pickup availability
UNI T Digital Multimeter UT-109 the instrument is a set Of car speed and closed-angle measurement, universal meter measurement in the integration Of multi-function multi-purpose table. Multi-purpose multi meter UT109, with a large screen, full range overload protection, and a unique design, make it a better performance Of the use Of more secure electrical instruments. This UNI-T handheld mini UT109 multimeter is an ideal tool for equipment testing, maintenance, and repair widely needed in electronics, electric power, schools, metallurgy, communications, manufacturing, petroleum, national defense, chemical industry, etc.
Specification:
- DC Voltage: 4V/40V/400V/1000V +/- (0.5%+ 3)
- AC Voltage: 40mV/400mV/4V/40V/400V/1000V +/- (0.8%+ 3)
- DC Current: 400μA/4000μA/40mA/400mA/4A/10A +/- (1%+ 2)
- AC Current: 400μA/4000μA/40mA/400mA/4A/10A +/- (1.2%+ 5)
- Resistance 400 Ohm/4kOhm/40kOhm/400kOhm/4MOhm/40MOhm +/- (1%+ 5)
- Capacitance 10nF/100nF/1000nF/10μF/100μF +/- (3%+ 5)
- Frequency 10Hz - 1MHz +/- (0.1%+ 4)
- Temperature: -40°C ~ 537°C +/- (1%+ 10)
Special Functions:
- Auto Ranging
- Dwell: 4Cyl / 6Cyl / 8Cyl +/- (3%+ 5)
- Tach: 4Cyl / 6Cyl / 8Cyl +/- (3%+ 5)
- Diode
- Continuity Buzzer
- Max / Min Mode
- Data Hold
- Sleep Mode
- Display Back light
- RS232 (USB)
- Low Battery Display
- Input Impedance for DC
- Voltage Measurement ≥ 10MW
- Max. Display 3999
General Characteristics:
- Power: 9V Battery (6F22)
- LCD Size: 65 x 43mm
- Product Colour: Red and Grey
- Product Net Weight: 362g
- Product Size: 180 x 87 x 47mm
- Standard Accessories: Test Lead, Battery, English Manual, RS232 Interface Cable, Software, Multi-Purpose Socket, Point Contact Temperature Probe
- Optional Accessories: USB Interface Cable
Packages Include:
1 x UNI-T UT 109 Digital Multi Meter UT109 for Automotive Multi Meters
Brandrethroad.pk is the Best Online Shopping website for UNI-T UT 109 Digital Multi Meter UT109 for Automotive Multi Meters. Here you get UNI-T UT 109 Digital Multi Meter UT109 for Automotive Multi Meters at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
