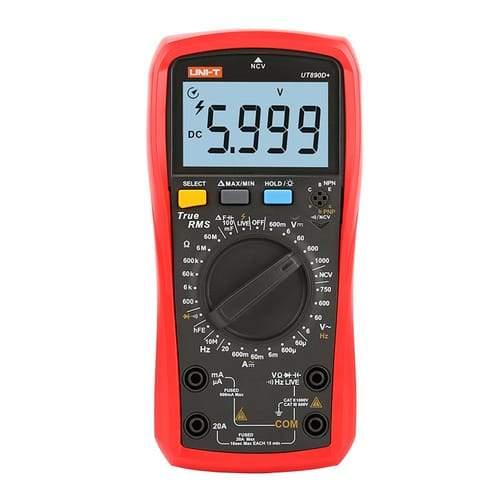

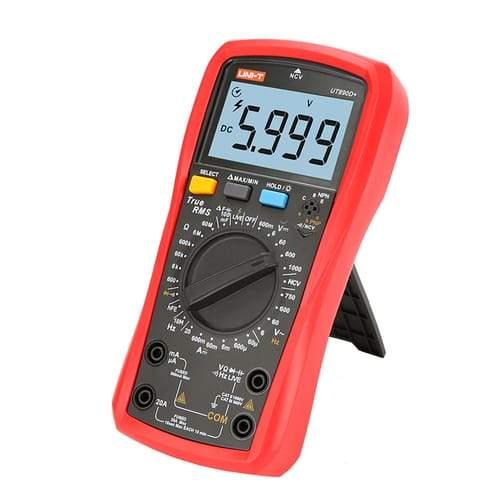

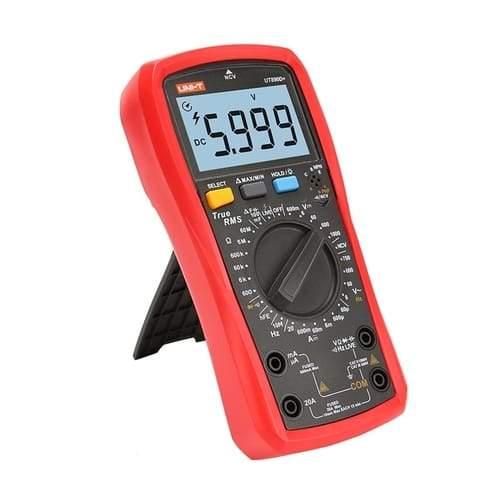

The UNI-T UT890D+ 6000-count true RMS digital multimeter is designed with a large LCD display. The maximum measurable capacitance of the Digital Multimeter is 100mF, with a fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ DMM has a LIVE function for distinguishing between live and neutral wires. In addition, True RMS Multimeter is equipped with the automatic fuse blown detection and high voltage protection.

Features:

• True RMS measure for Current and Voltage. 6000 Counts display range.
• It has an LCD backlight
• REL function for Capacitance measuring. Minimum resolution rate 1pF, Maximum measuring range up to 6000uF.
• Overload protection up to 600V for Capacitance, Resistance, Buzzer, Diode, and Frequency measuring.
• High accurate frequency measuring function. Minimum resolution rate 0.001Hz, Unique (MAX-MIN) value calculate function.
• Frequency respond is (40Hz~1KHz) (Sine Wave, triangular wave)
• Acousto-optic indication(NCV/continuity): Yes
• High voltage false detection: 1000Vrms
• Current (AC/DC) mode memory: Yes
• Over-current alarm: ≥20A
• Low Battery Indication: ≤2.5V
• Auto Power Off: 15Min
• Backlight: 30s

Specifications:

1. Power supply:  1.5V x 2 (Battery Included)
2. Safety grade:  CE / CAT.II 1000V / CAT.III 600V
3. External dimension: 183mm x 88mm x 56mm
4. DC voltage:
   • Range: 600mV/6V/60V/600V/1000V
   • Accuracy: ±(0.5%+2)
5. AC voltage :
   • Range: 6V/60V/600V/750V
   • Accuracy: ±(0.8%+3)
6. DC Current:
   • Range: 60uA//600uA/6mA/60mA/600mA/20A
   • Accuracy: ±(0.8%+8)
7. AC Current:
   • Range: 60uA//600uA/6mA/60mA/600mA/20A
   • Accuracy: ±(1%+12)
8. Resistance:
   • Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
   • Accuracy: ±(0.8%+3)
9. Capacitance:
   • Range: 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF
   • Accuracy: ±(3%+10)
10. Frequency:
    • 9.999Hz ~ 9.999MHz: ±(0.1%+5)

Applications:

• Electrical switchboards
• HVAC systems
• Electrical circuit faults detection
• Installation or maintenance of electronics/factory equipment
• Electronics component development, circuit board design
• Users who need to distinguish between neutral/live wire frequently

Package includes:

1 x UNI T True RMS Digital Multimeter UT890D+
