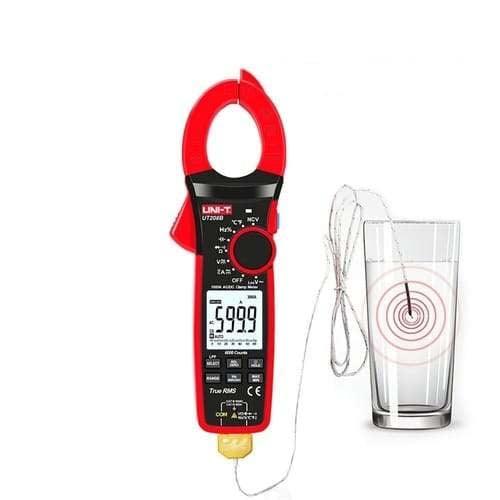

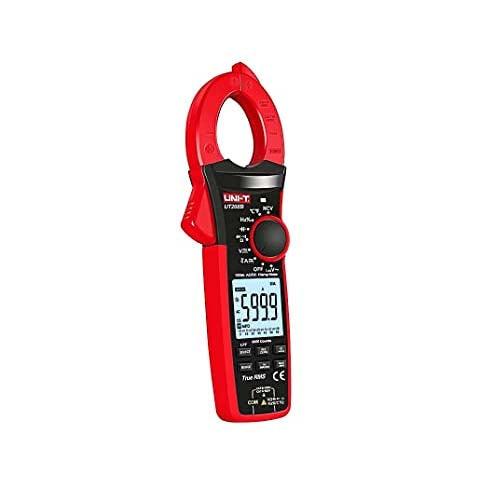

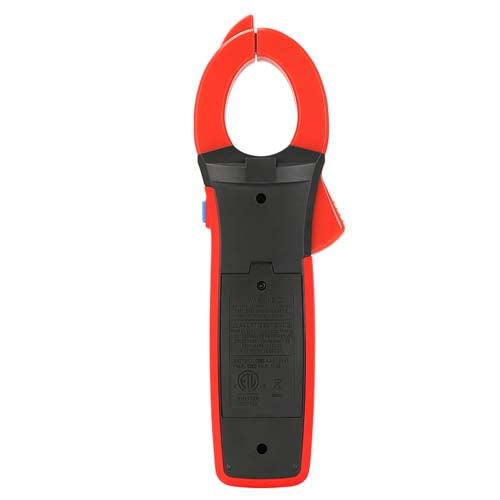

UNI-T UT-208B Digital Clamp Multimeter is used to measure AC/DC voltage, Connectivity, Resistance, Temperature, and Frequency. Digital Tong Tester has NCV non-contact measurement, when the non-contact voltage sensor is close to the circuit, the light prompts whether there is voltage. The high-tech induction clamp head is different from the general induction clamp head with low and uneven induction force, and a small current can be accurately sensed. The anti-fall and dust-proof appearance are solid, double-layer injection molding, and the rigorous industrial anti-fall design structure enhances the anti-fall performance.

Features:

• Flashlight button: Short press this button to turn on/off the flashlight.
• Flexible current probe (optional) to extend the AC current measurement range to3000A
• Inrush current capture
• NCV Multi-Segment Display and audio/visual alarm
• True RMS/Auto backlight
• NCV/Function retention

Specifications:

1. Power: 1.5V battery (R03) x 3
2. LCD Display: 43mm x 45mm
3. Jaw Opening: 42mm
4. Dimension: 272mm x 81mm x 43.5mm
5. Color: Red and Grey
6. Display Count: 6000
7. AC voltage:
   • 6V  ±(1.2%+3)
   • 60V/600V/1000V   ±(1%+8)
8. DC voltage:
   • 600mV ±(0.8%+3)
   • 6V/60V ±(0.5%+5)
   • 600V  ±(0.5%+5)
   • 1000V  ±(0.5%+5)
9. Inrush current:
   • Range: 1000A
   • Accuracy:  ±(10%+10)
10. AC current:
    • Range: 1000A
    • Accuracy: ±(2%+5)
11. DC current:
    • Range: 1000A
    • Accuracy: ±(2%+5)
12. LOZ ACV:
    • 600V/1000V  ±(2%+5)
13. Resistance:
    • 600Ω  ±(2%+5)
    • 6KΩ/60KΩ/600KΩ  ±(1%+3)
    • 6MΩ/60MΩ ±(2%+8)
14. Capacitance:
    • 60nF ±(4%+25)
    • 600nF/6μF/60μF/600μF ±(4%+5)
    • 6mF/60mF ±(10%+9)
15. Frequency:
    • Range: 10MHz
    • Accuracy: ±(0.1%+3)
16. Temperature:

• -40℃~300℃  ±(1%+20)
• 300℃~1000℃  ±(1%+2)

Package Include:

• 1x True RMS digital clamp Meter UT208B
