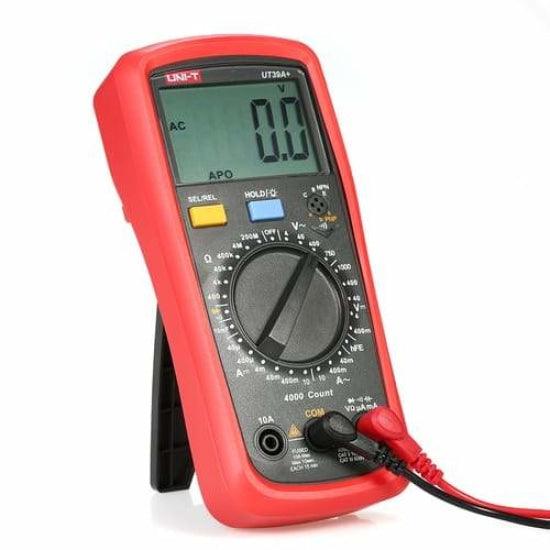

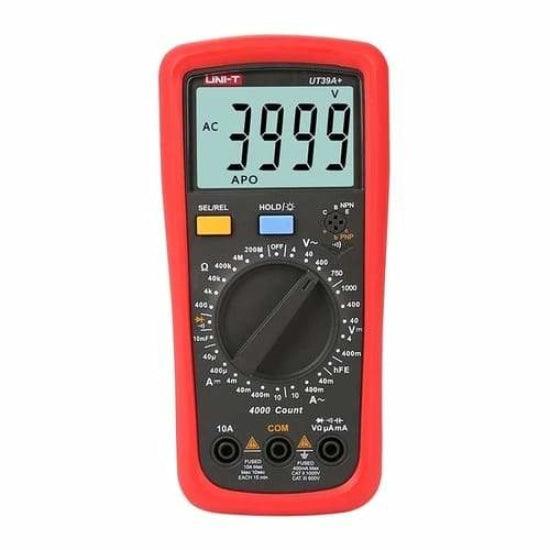

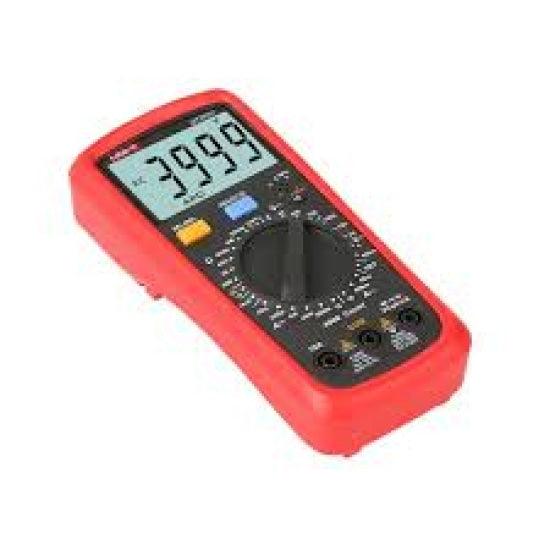

UNI T Handheld Auto Range Digital Multimeter UT39A+ in Pakistan

UT39+ modern digital multimeter is a portable device designed for the electrical industry. Manual range multimeter UT 39 plus, features overvoltage and overcurrent alarms and high voltage protection. This AC DC voltmeter ohm meter was triggered during faulty operation. UT39A plus multimeter, designed according to CAT II 1000V/CAT III 600V safety standards.

Features:

• Overcurrent Alarm
• High Voltage Protection
• Manual Range Selection
• Backlight
• Data hold function
• Low Battery Indication
• Auto Power Off
• Resistance/Capacitance
• HFE
• Diode/Continuity test

Specifications:

1. Power: 1.5V battery (R03)×2
2. LCD Size: 56.5mm x 36mm
3. Max. Display: 4000
4. Product Color: Red and Grey
5. Product size: 175mm x 83mm x 53mm
6. DC Voltage(V):
   • Range:400mV/4V/40V/400V/1000V
   • Accuracy: ±(0.5%+5)
7. AC Voltage(V):
   • Range:4V/40V/400V/750V
   • Accuracy: ±(0.8%+3)
8. DC Current (A):
   • Range:40μA/4mA/40mA/400mA/10A
   • Accuracy: ±(0.8%+3)
9. AC Current (A):
   • Range:4mA/400mA/10A
   • Accuracy: ±(1%+2)
10. Resistance(Ω):
    • Range: 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ
    • Accuracy: ±(0.8%+2)
11. Capacitance (F):
    • Range: 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF
    • Accuracy: ±(4%+5)
12.   Frequency (Hz) :

• Range: 40Hz~400Hz

Package includes:

• 1 x UNI-T UT39A+ Digital Multimeter
• 2 x Test Leads
• 1 x User Manual
