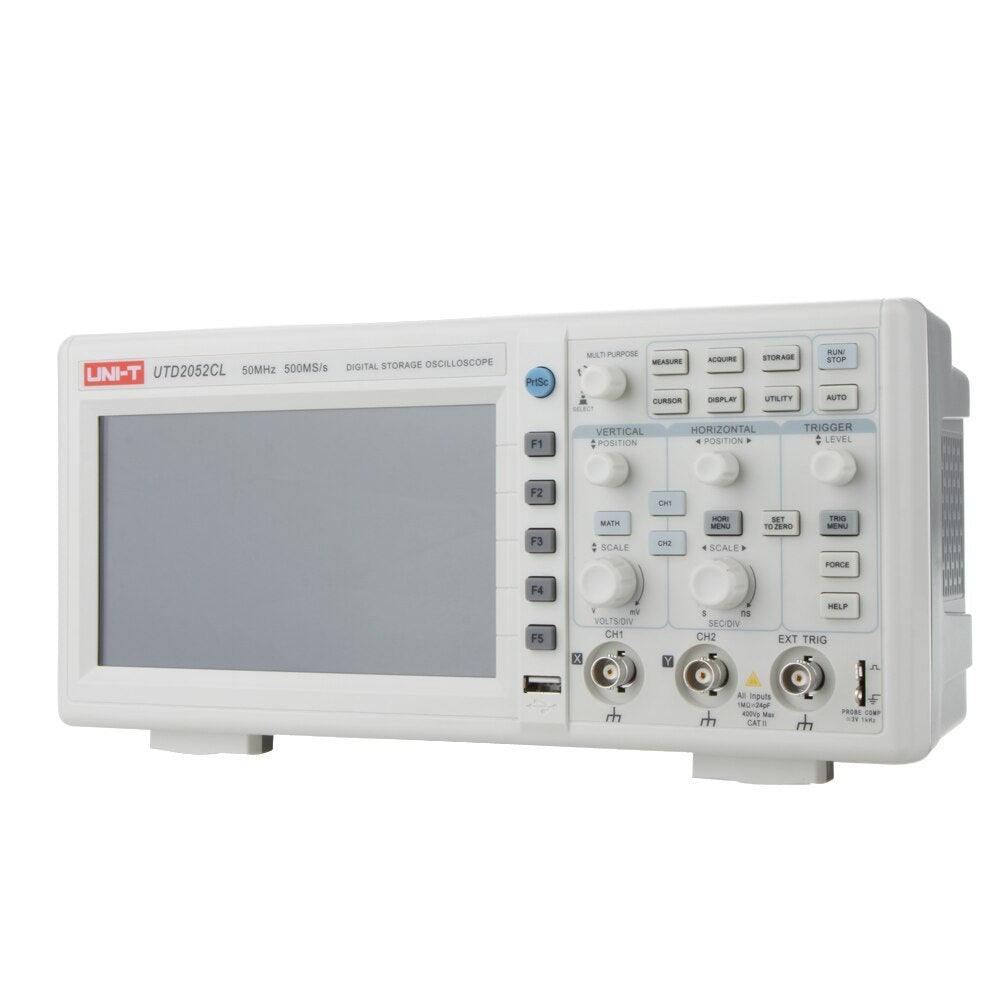

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time.UTD2052C Oscilloscope is a two-channel portable device with a 7-inch display 50MHz bandwidth and 500MS/s sampling rate. Digital Storage CRO is an ergonomic, lightweight, universal instrument designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment.

Features:

• The dual analog channels width range of 1mV/div~20V/div.
• 7 inches widescreen LCD displays.
• Special Print Screen Feature.
• Supports plug-and-play USB storage devices. Communication with and remote control of the computer through the USB device.
• USB drive system software upgrade.
• Storage of waveforms setups and interfaces waveforms and setups reproduction.
• Automatic measurement of 28 waveform parameters.
• Unique waveform recording and replay function.
• Multilingual menu displays.

Specifications:

1. Channels: 2
2. Bandwidth: 50MHZ
3. Sample Rate: 500MS/s
4. Rise Time: ≤7ns
5. Memory Depth: 25 kpts
6. Waveform Acquisition Rate: ≥2000wfms/s
7. Vertical Sensitivity: 1mV/div~20V/div
8. Time-base Range: 10ns/div~50s/div
9. Storage: Setup, Wave, Bitmap
10. Trigger Modes:  Edge, pulse width, video (UTD2025CL), alternate
11. Interface: USB OTG,Pass/Fail
12. Power: 100-240VAC, 40-440Hz
13. LCD Size: 7 Inches 64K Color TFT  LCD,  400×240
14. Colour: White and Grey
15. Dimension: 306mm ×147mm × 122mm

Industryparts.pk is the Best Online Shopping website for UNI T Digital Storage Oscilloscope 2 Channel DSO UTD2052CL. Here you get UNI T Digital Storage Oscilloscope 2 Channel DSO UTD2052CLat at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include:

• 1x Oscilloscope
• 2x  Probe (1×,10× switchable)
• 1x power cord
• 1x USB cable
