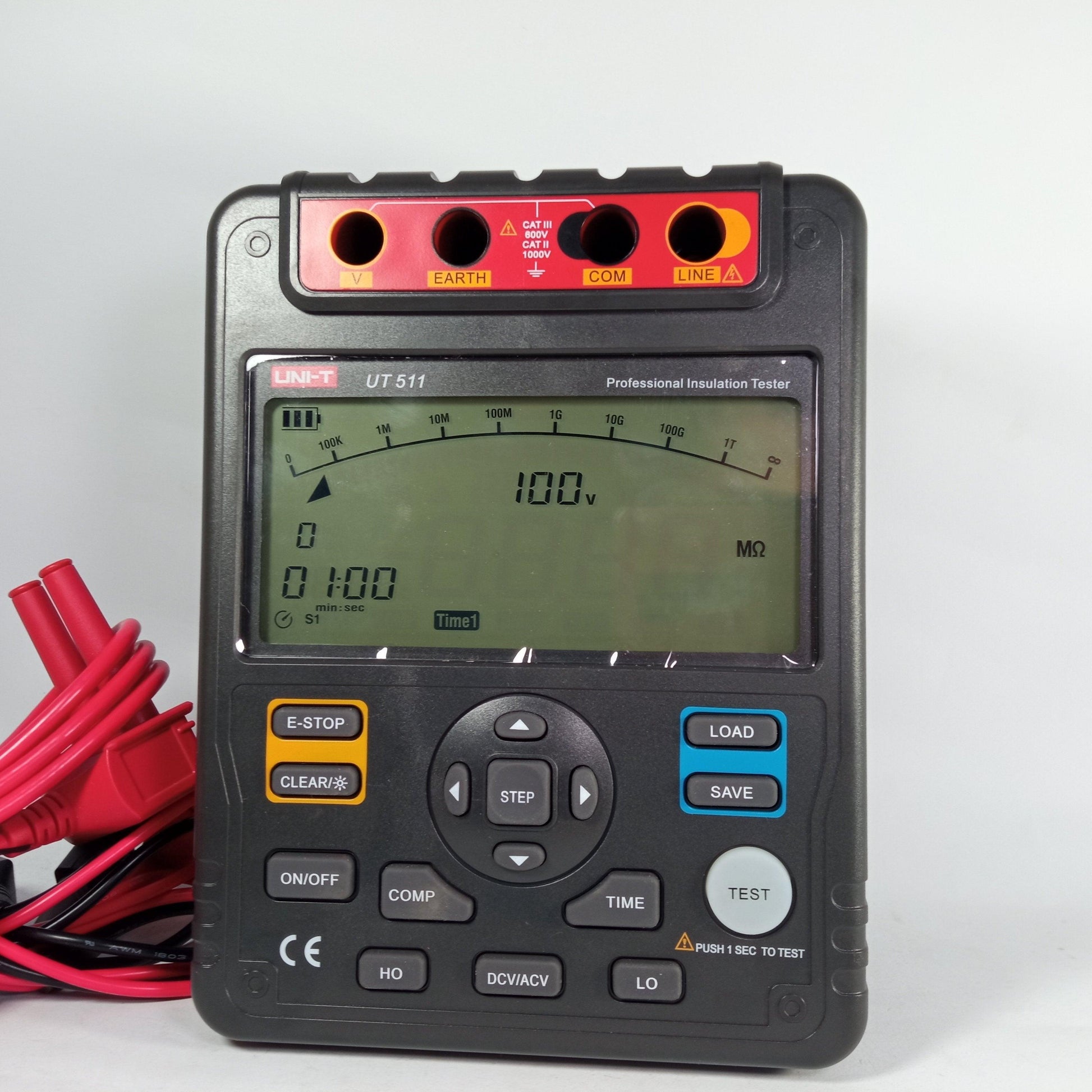

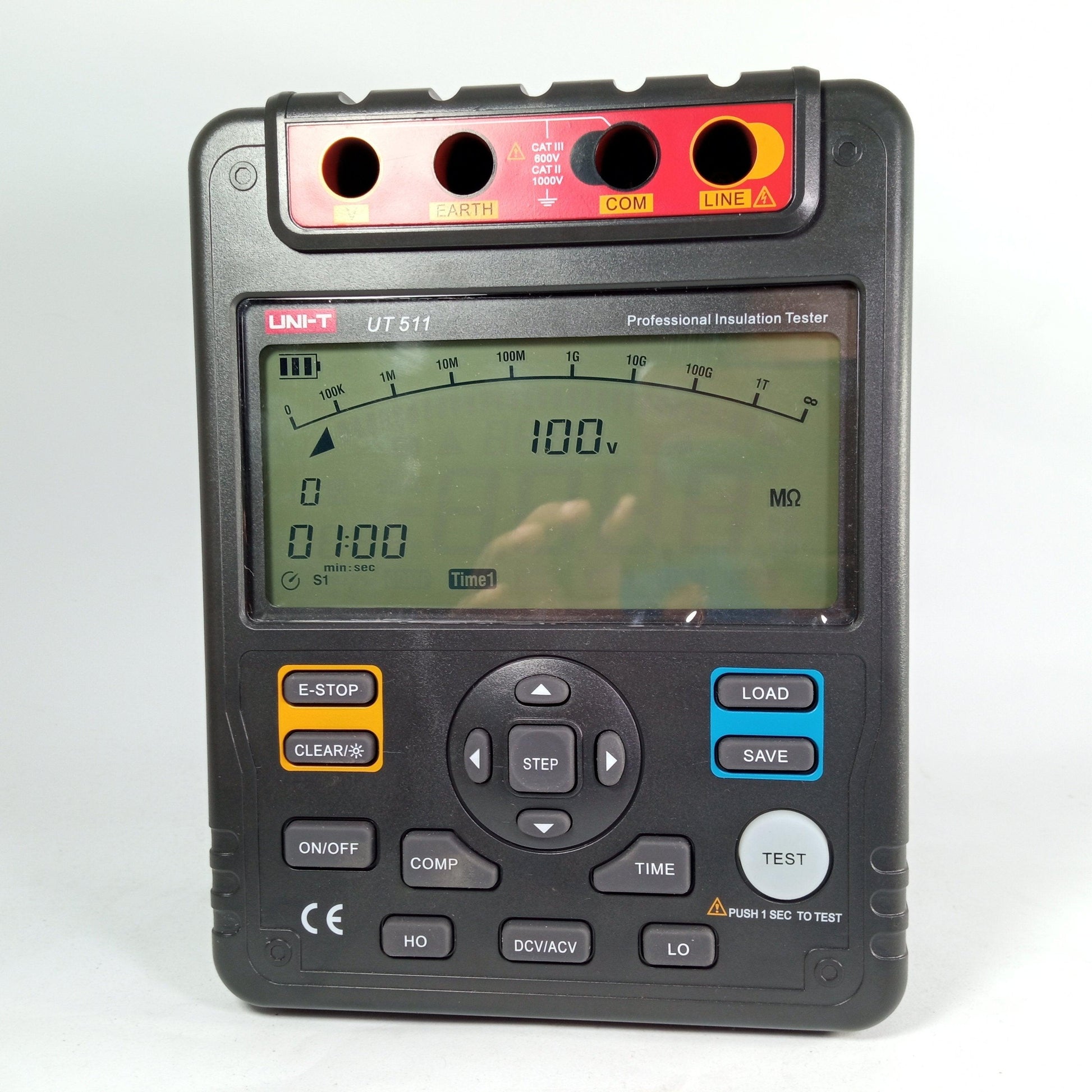

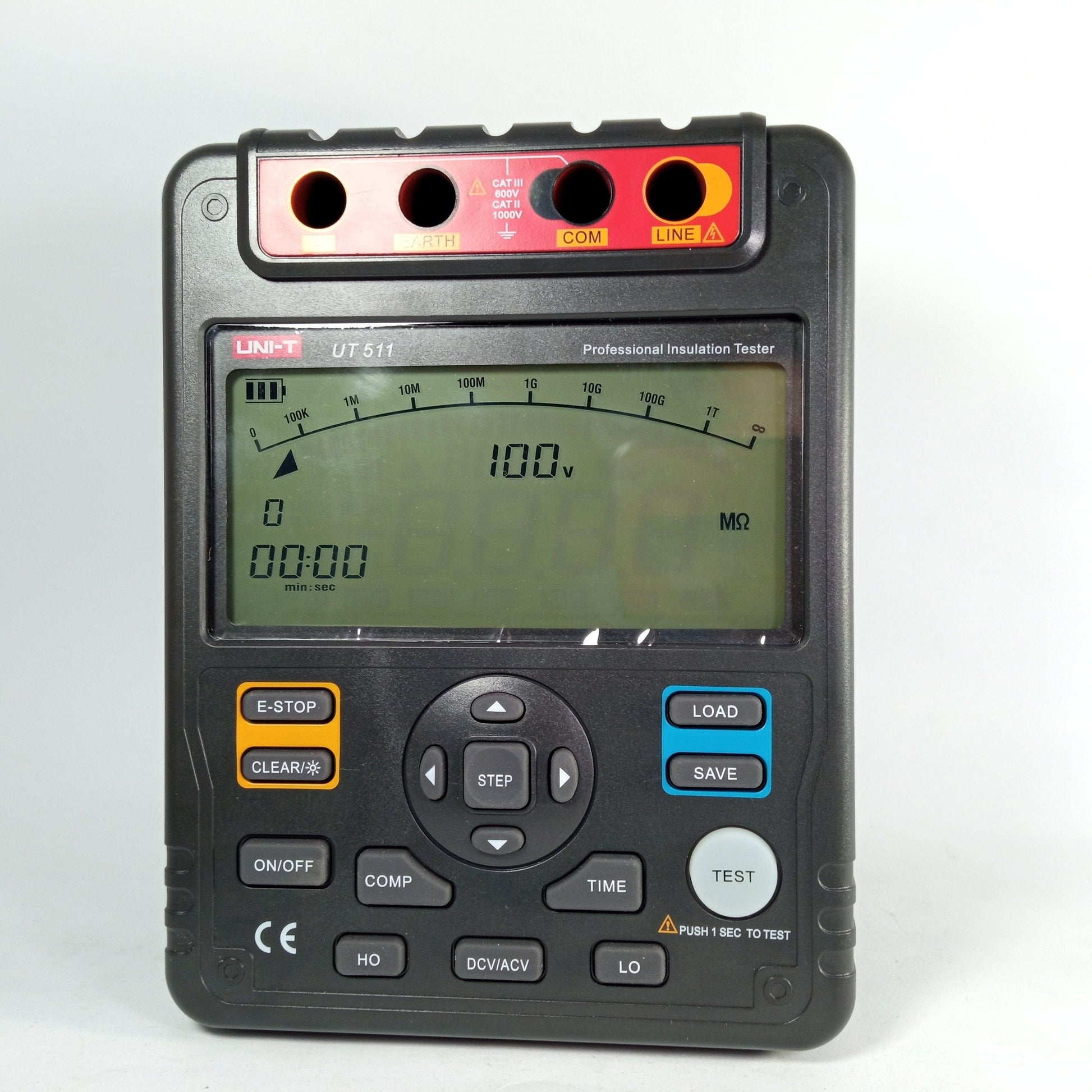

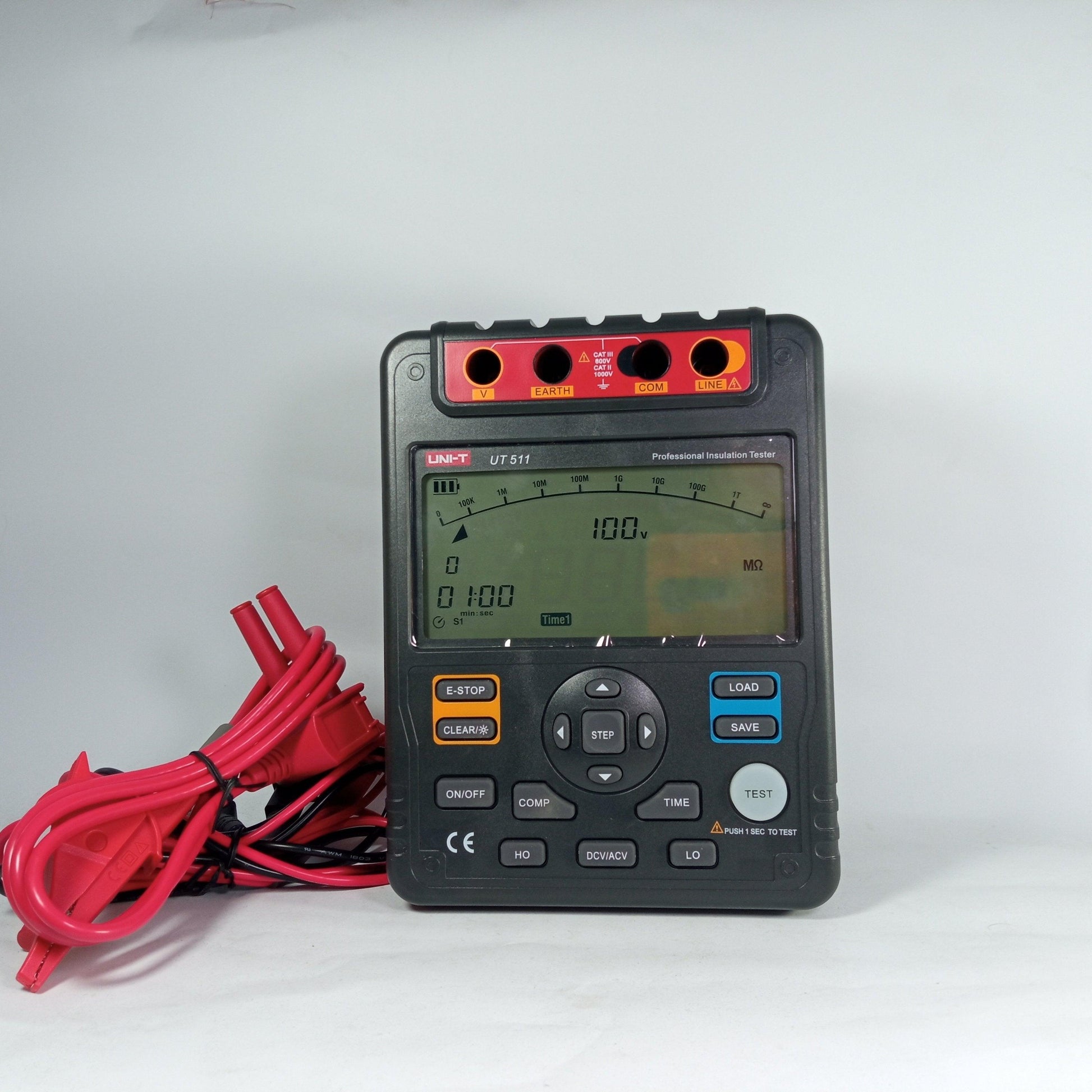

UNI T Digital Insulation Resistance Meter UT511 in Pakistan

SKU:BR8021

Regular price Rs 27,600
Regular price Rs 0 Sale price Rs 27,600
Sale Sold out

UNI T Digital Insulation Resistance Meter UT511 is a kind of intelligent insulation tester. The UT-511 insulation test meter design takes microcomputer technology design as the core and combines the large-scale integrated circuit with a digit circuit. This megger is equipped with strong measuring software and data processing software. This digital megger is applied to the parameter measurement of insulation resistance, voltage, and low resistance. This insulation resistance megger has stable performance and simple operation. It is applicable to on-site measurement and repair of the electrical equipment and charging line. This megger tester is the ideal tool for maintaining electrical equipment. This insulation resistance multimeter is also used for smelting, communication, manufacture, fossil oil, national defense, electricity, chemical industry, and circuit.

Features:

  • Large 9999 display with 30-segment analog bar graph
  • PI/DAR measurements
  • Comparison, upper and lower limit functions
  • Continuous measurement mode
  • Auto power off
  • 18-group data storage
  • Backlight
  • Auto current discharge and high-voltage output alarm
  • Time measurement mode, auto measure within 15 minutes
  • Low battery and over range indications

Specifications:

  1. Insulation Resistance: 500 kOhm ~ 10 GOhm
  2. Insulation Resistance Best Accuracy: +/- (3%+5)
  3. Low Resistance: 1000 Ohm
  4. Testing Voltage: 100V / 250V / 500V / 1000V
  5. Testing Voltage Best Accuracy: 0 ~ 20%
  6. DC Voltage: 1000 V
  7. DC Voltage Best Accuracy: +/- (1%+3)
  8. AC Voltage: 750 V
  9. AC Voltage Best Accuracy: +/- (2%+3)
  10. Auto Range: Yes
  11. Auto Power Off: Yes
  12. Low Battery Indication: Yes
  13. Data Logging: 18
  14. Comparison Measurement: Yes
  15. Polarization Index(PI): Yes
  16. Dielectric Absorption (DAR): Yes
  17. LCD Backlight: Yes
  18. Analogue Bar Graph: 30
  19. Over Range Warning: Yes
  20. High Voltage Indication: Yes
  21. Timer: Around 30 minutes
  22. Power: 8x 1.5 V bat. (R14)
  23. Product size: 202 x 155 x 94 mm
  24. Product weight: 2 kg

Industryparts.pk is the Best Online Shopping website for UNI T Digital Insulation Resistance Meter UT511 in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

   1 x UNI T Digital Insulation Resistance Meter UT511
