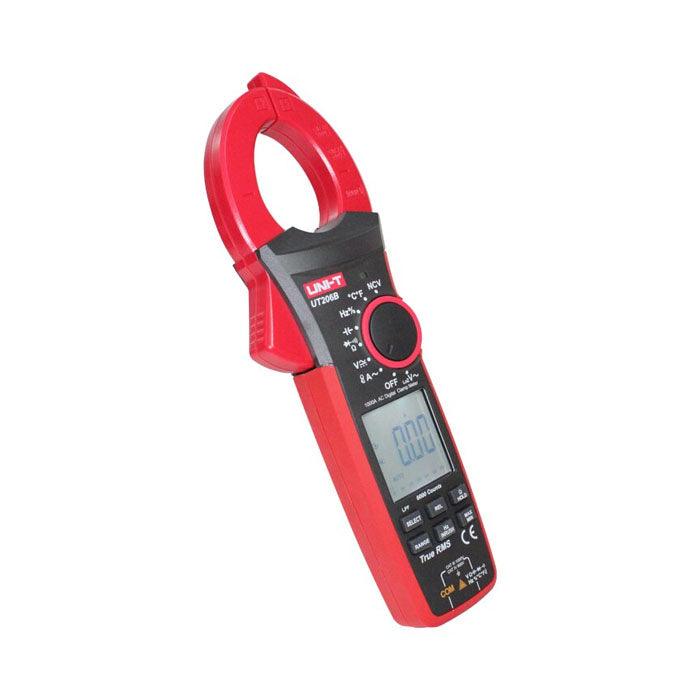

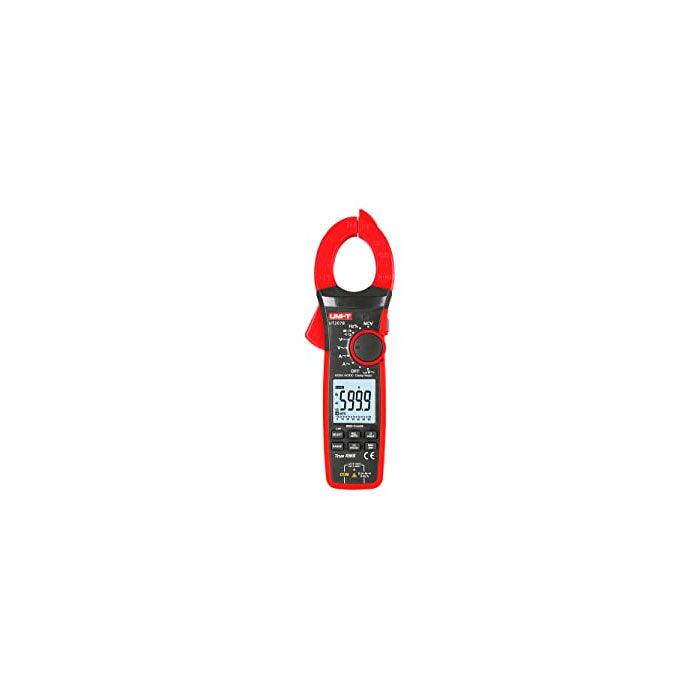

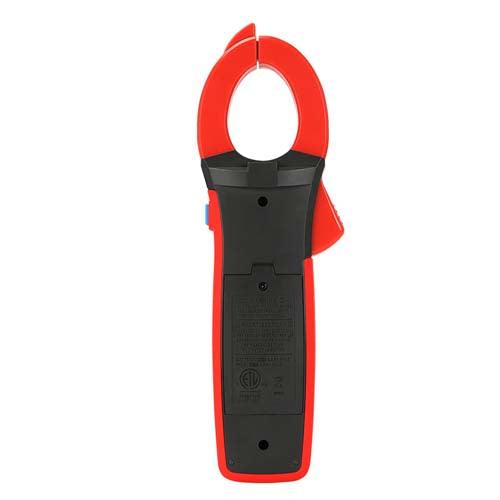

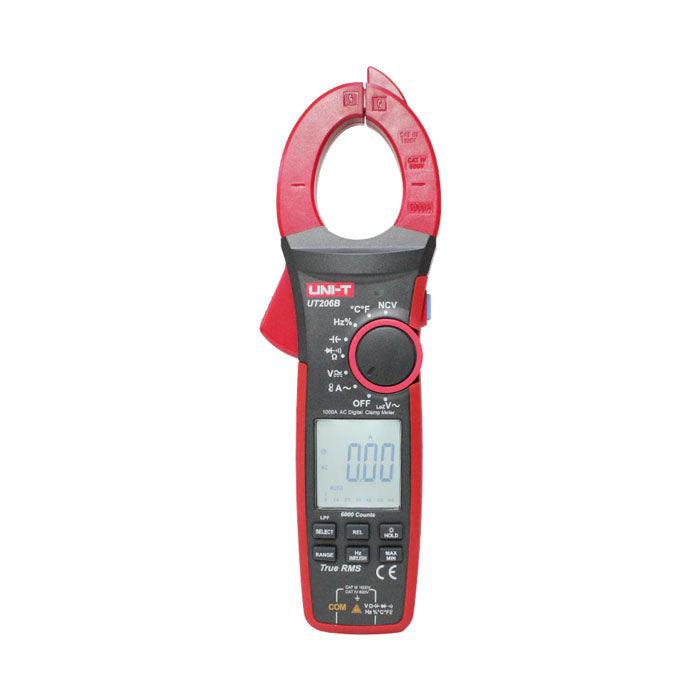

UNI-T UT-206B Digital Clamp Multimeter is used to measure AC/DC voltage, Connectivity, Resistance, and Frequency. These 1000A AC/DC digital clamp meters are stable, safe, and reliable with low power consumption. The True RMS Clamp meter ut206b uses a large-scale an integrated circuit with a double integrated A/D converter as its core. DC/AC Clamp multi tester has full range overload protection and unique appearance design make these clamp meters the ideal tool for maintenance and repair of electrical and power lines up to 1000A AC. This Tong tester has a full Icon display
Features:
- Flashlight button: Short press this button to turn on/off the flashlight.
- Flexible current probe (optional) to extend the AC current measurement range to3000A
- Inrush current capture
- NCV Multi-Segment Display and audio/visual alarm
- True RMS/Auto backlight
- NCV/Function retention
Specifications:
- Power: 9v battery
- LCD Display: 43mm x 45mm
- Jaw Opening: 42mm
- Dimension: 272mm x 81mm x 43.5mm
- Color: Red and Grey
-
AC voltage:
- 6V ±(1.2%+3)
- 60V/600V/1000V ±(1%+8)
-
DC voltage:
- 600mV ±(0.8%+3)
- 6V/60V ±(0.5%+5)
- 600V ±(0.5%+5)
- 1000V ±(0.5%+5)
-
Inrush current:
- Range: 1000A
- Accuracy: ±(10%+10)
-
AC current:
- Range: 1000A
- Accuracy: ±(2%+5)
-
Resistance:
- 600Ω ±(2%+5)
- 6KΩ/60KΩ/600KΩ ±(1%+3)
- 6MΩ/60MΩ ±(2%+8)
-
Capacitance:
- 60nF ±(4%+25)
- 600nF/6μF/60μF/600μF ±(4%+5)
- 6mF/60mF ±(10%+9)
-
Temperature:
- -40℃~300℃ ±(1%+20)
- 300℃~1000℃ ±(1%+2)
- Frequency:
- Range: 10MHz
- Accuracy: ±(0.1%+3)
Package Include:
- 1x True RMS digital clamp Meter UT206B
