UNi-D (2L)UW-50 Solenoid Valve for steam use in Pakistan

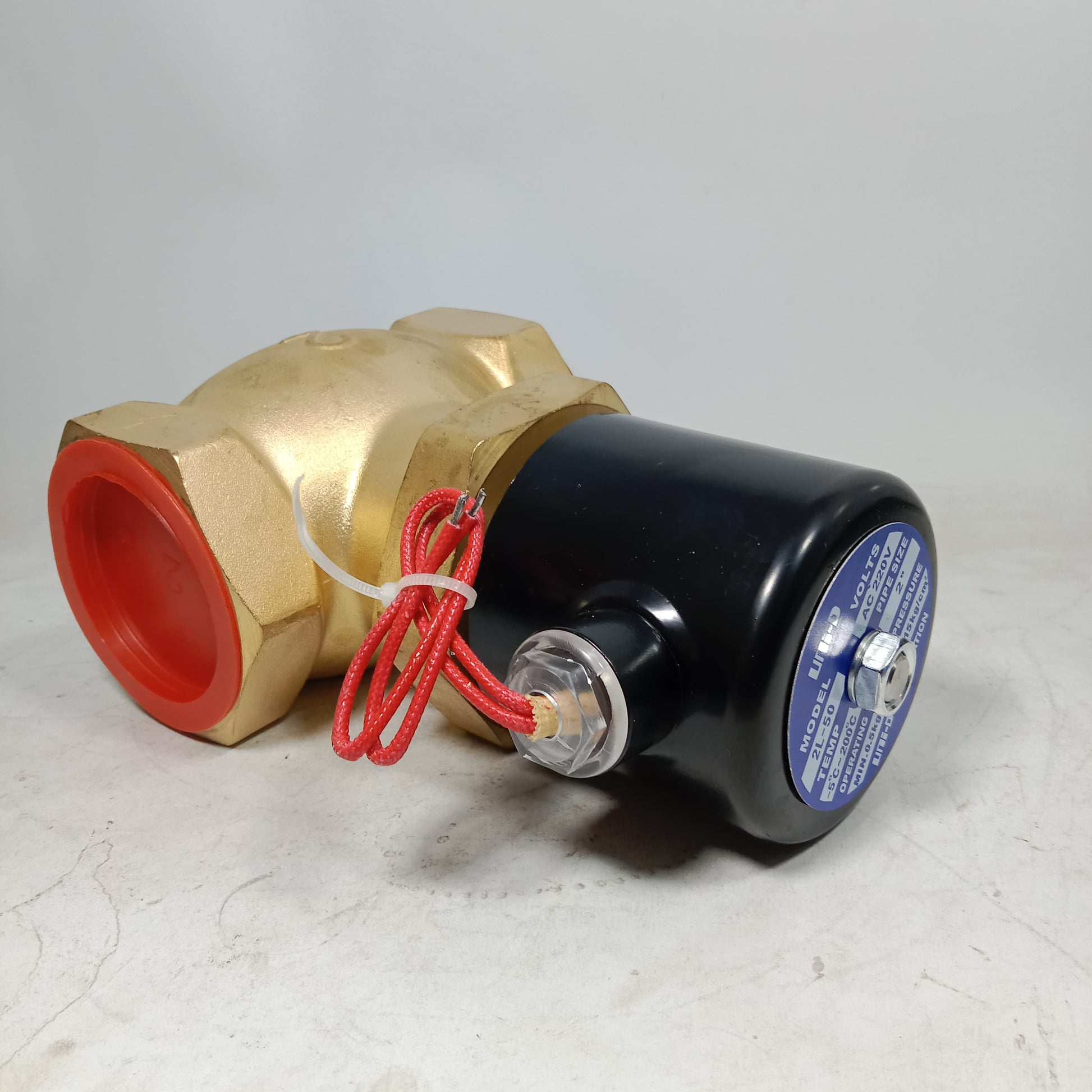

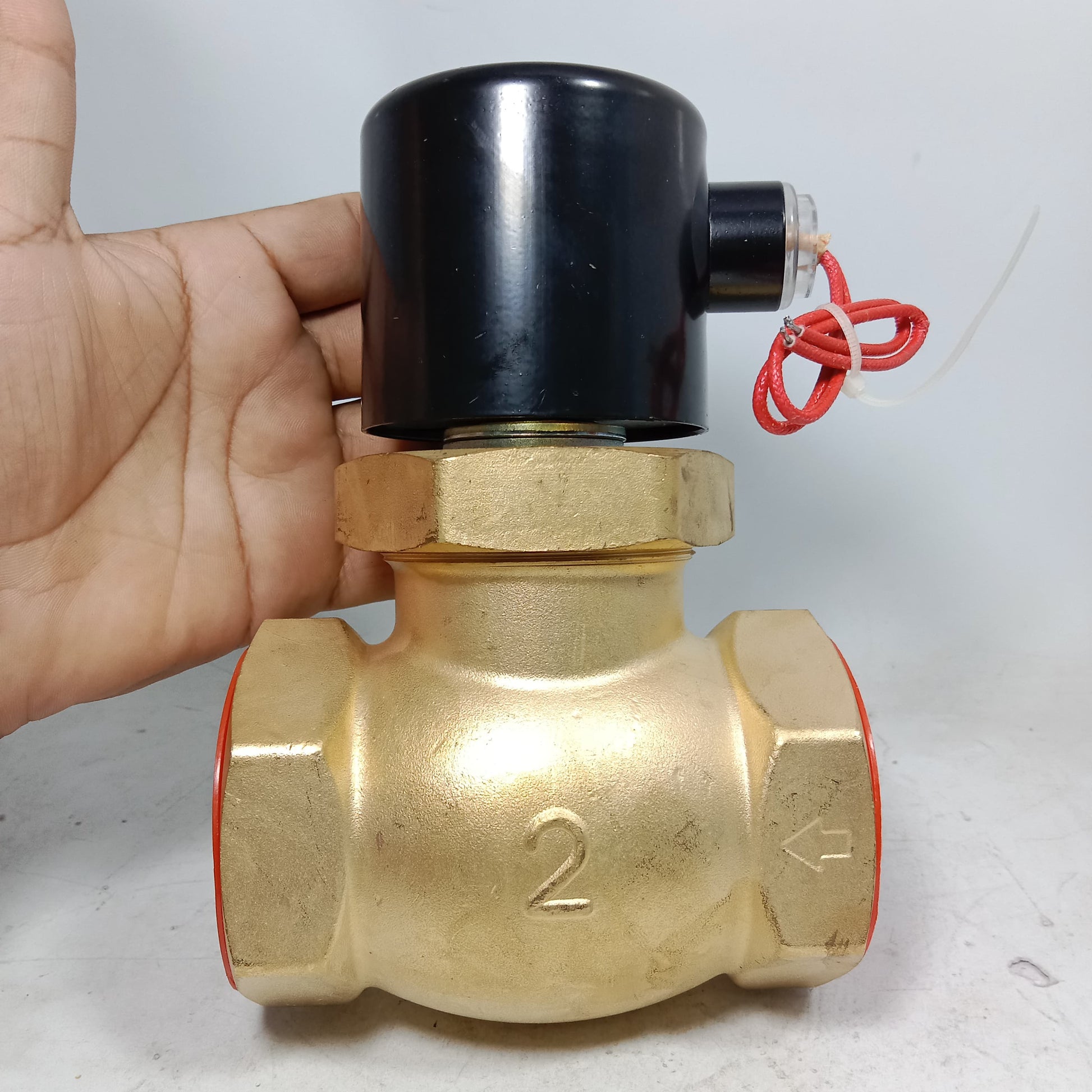

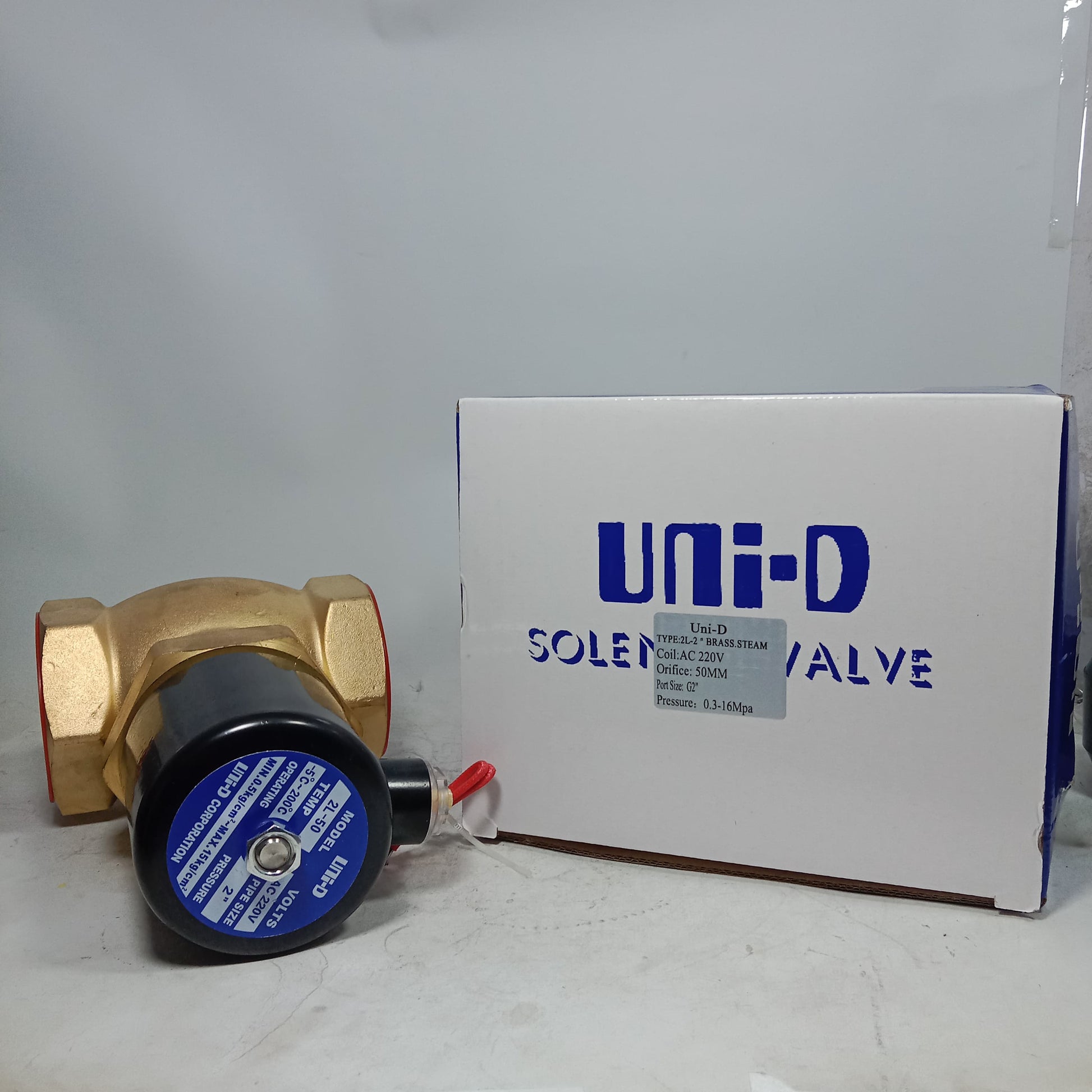

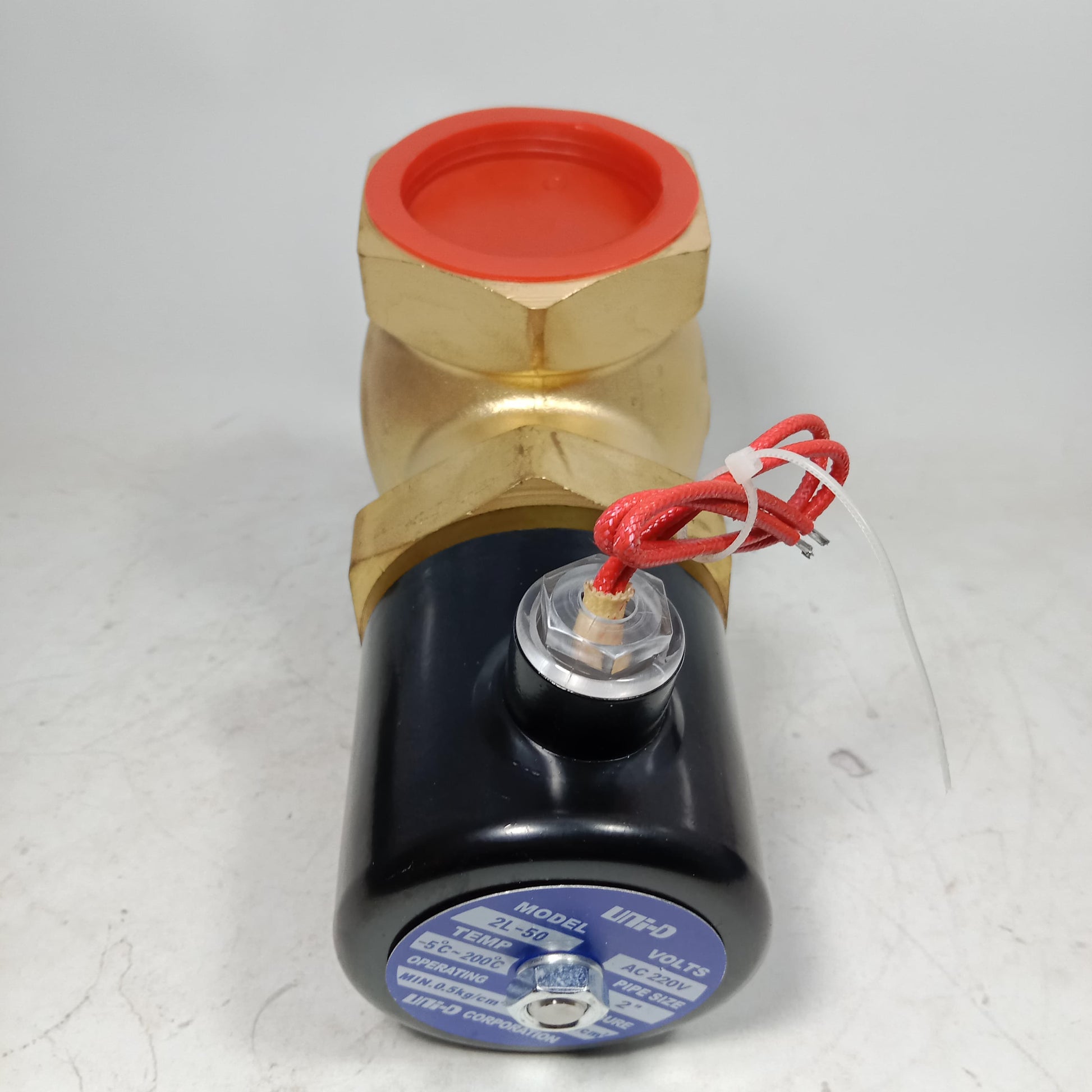

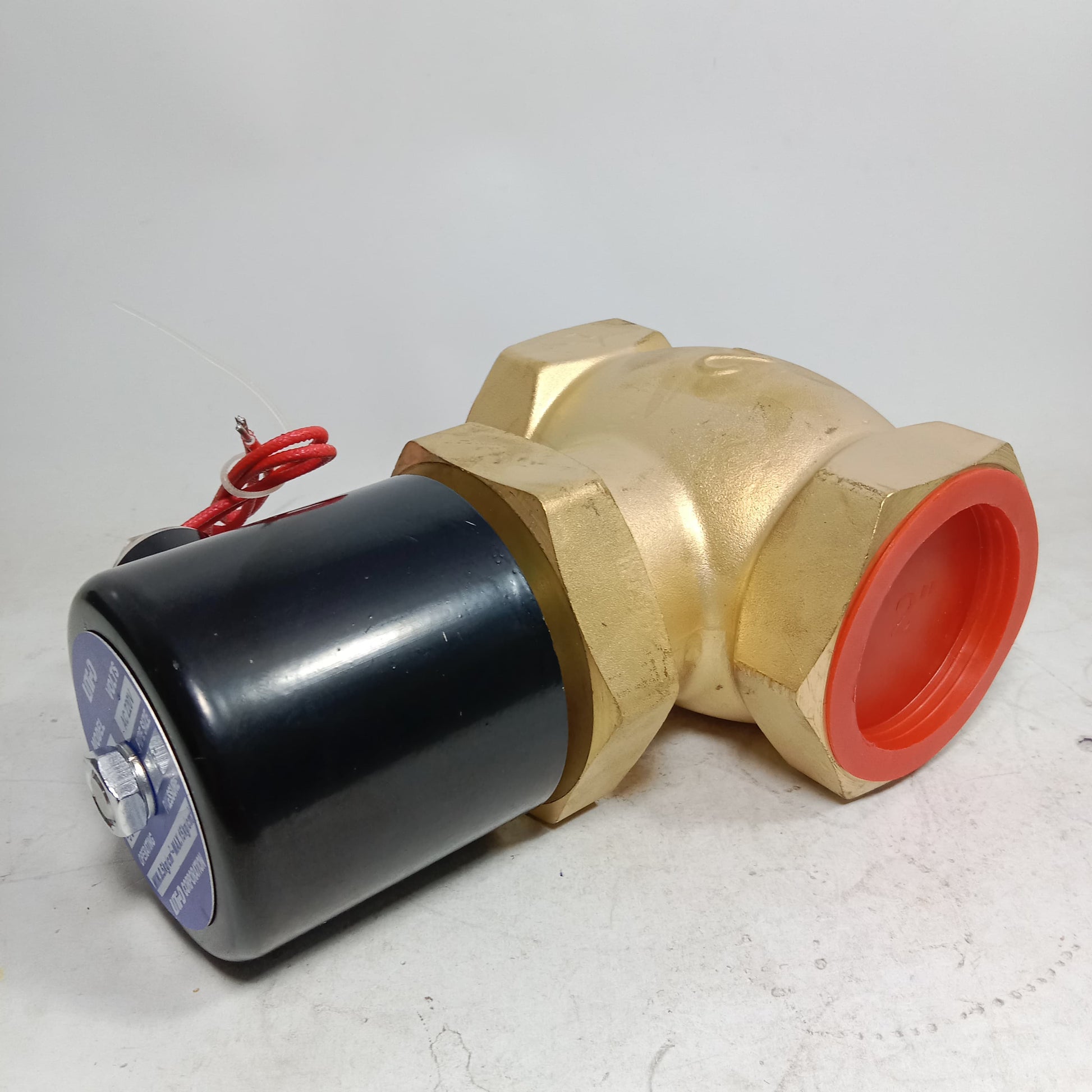

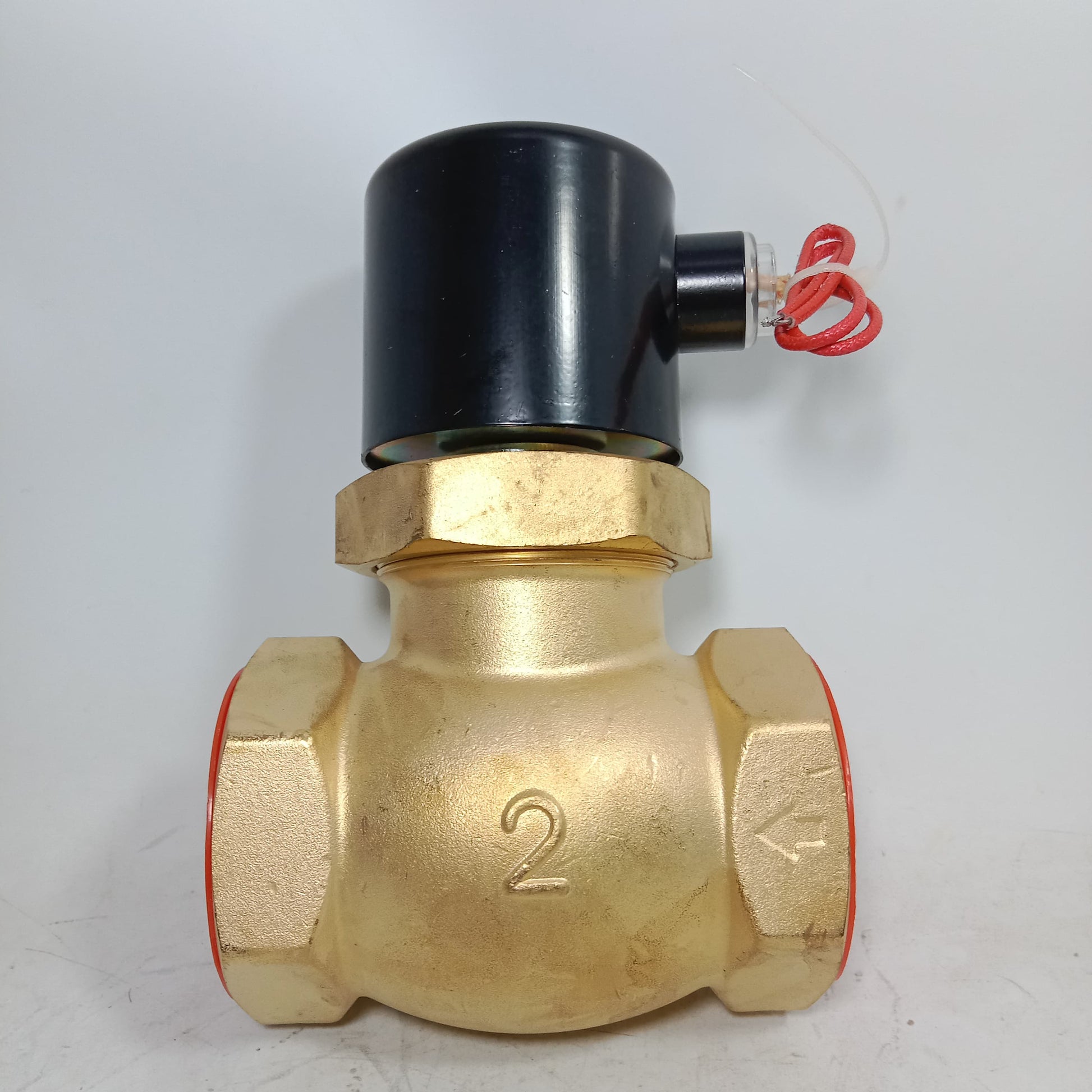

The UNi-D (2L)UW-50 Solenoid Valve is a brass, 2-way, normally closed (NC) valve that uses an electrical signal to control the flow of various fluids, including water, air, and light oil. It's a semi-direct diaphragm-operated valve, meaning it can operate even with zero differential pressure, and it features a large 2-inch pipe size for high-flow applications. This robust valve is commonly found in industrial pipeline systems for dispensing, gas shutoff, or tank draining, and offers reliable performance across a wide range of temperatures and pressures.

Features of the UNi-D (2L)UW-50 Solenoid Valve for steam use:

• 2-Way, Normally Closed (NC): Stops fluid flow when de-energized and allows flow when energized.
• Semi-Direct Diaphragm Operated: Can operate from zero differential pressure, making it versatile for various system conditions.
• High Flow Capacity: Features a large 2-inch pipe size and orifice, suitable for applications requiring significant fluid throughput.
• Durable Construction: Valve body is typically made from forged brass, with internal components like the tube and core often made of stainless steel, ensuring longevity.
• Versatile Fluid Compatibility: Designed to handle a range of media including water, air, and light oil.
• Standard Seal Options: Commonly uses NBR (Buna) seals for a media temperature range of −5∘C to 80∘C. Viton (FKM) seals are often available as an option for higher temperatures (up to 120∘C).
• Wide Voltage Range: Available in various standard voltages, including $220\text{VAC}$, $110\text{VAC}$, $24\text{VDC}$, etc.
• Easy Installation: Designed for ease of installation, typically requiring vertical upright mounting.
• Certifications: Often holds certifications like ISO9001 and CE.

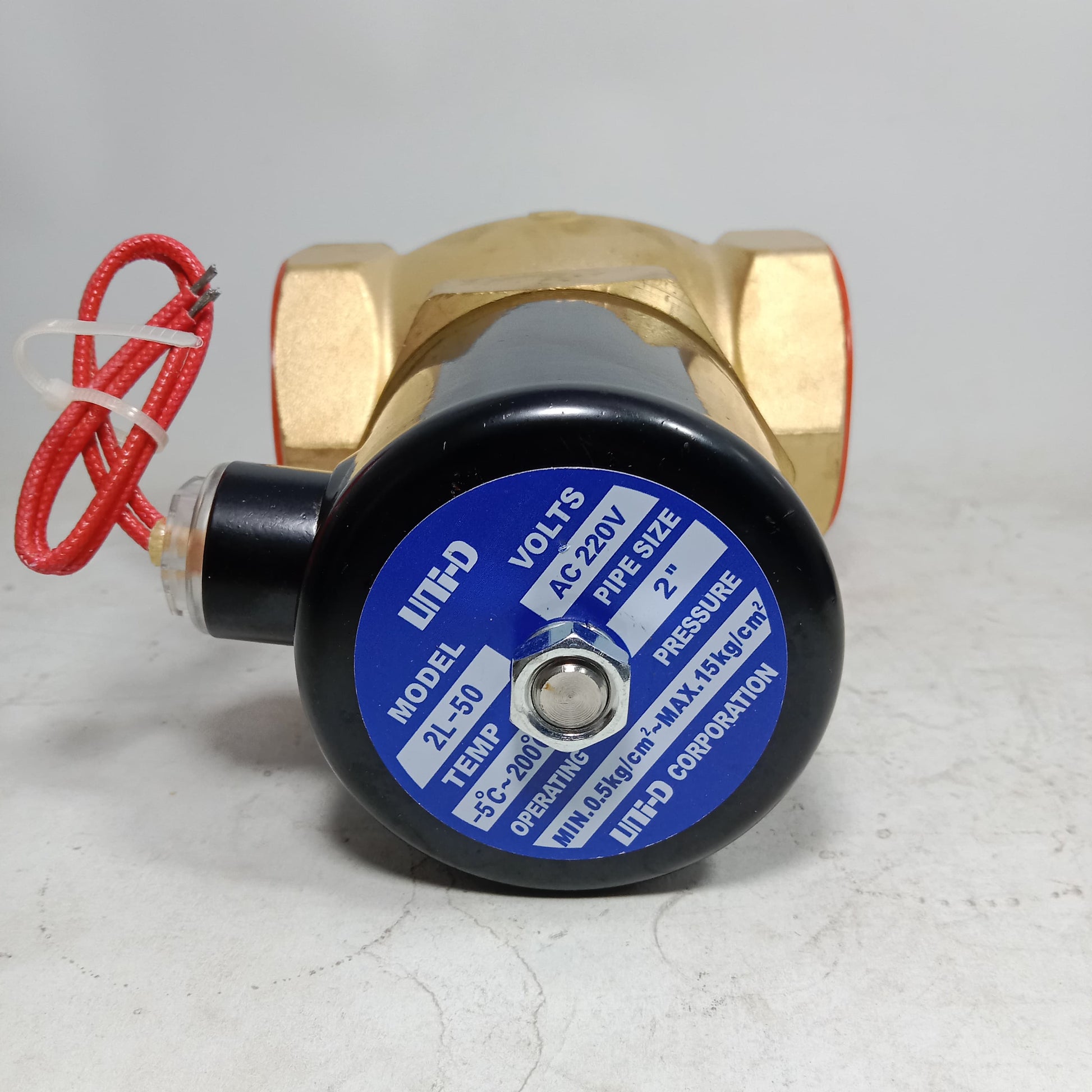

Specifications of the UNi-D (2L)UW-50 Solenoid Valve:

• Model Series: UW Series
• Valve Type: 2-Way, 2-Position, Normally Closed (NC)
• Operation: Semi-Direct Diaphragm Operated, Zero Differential Pressure Start
• Pipe Size: $2\text{ inch}$ (UW-50, equivalent to G2" or NPT 2")
• Orifice Size: $50\text{ mm}$

• Working Medium: Water, Air, Light Oil (Viscosity below $20\text{ cst}$)
• Operating Pressure: MIN.0.5kg/CM²~MAX.125kg/cm²
• Voltage: $220\text{VAC}$
• Ambient Temperature: -50°~200°C

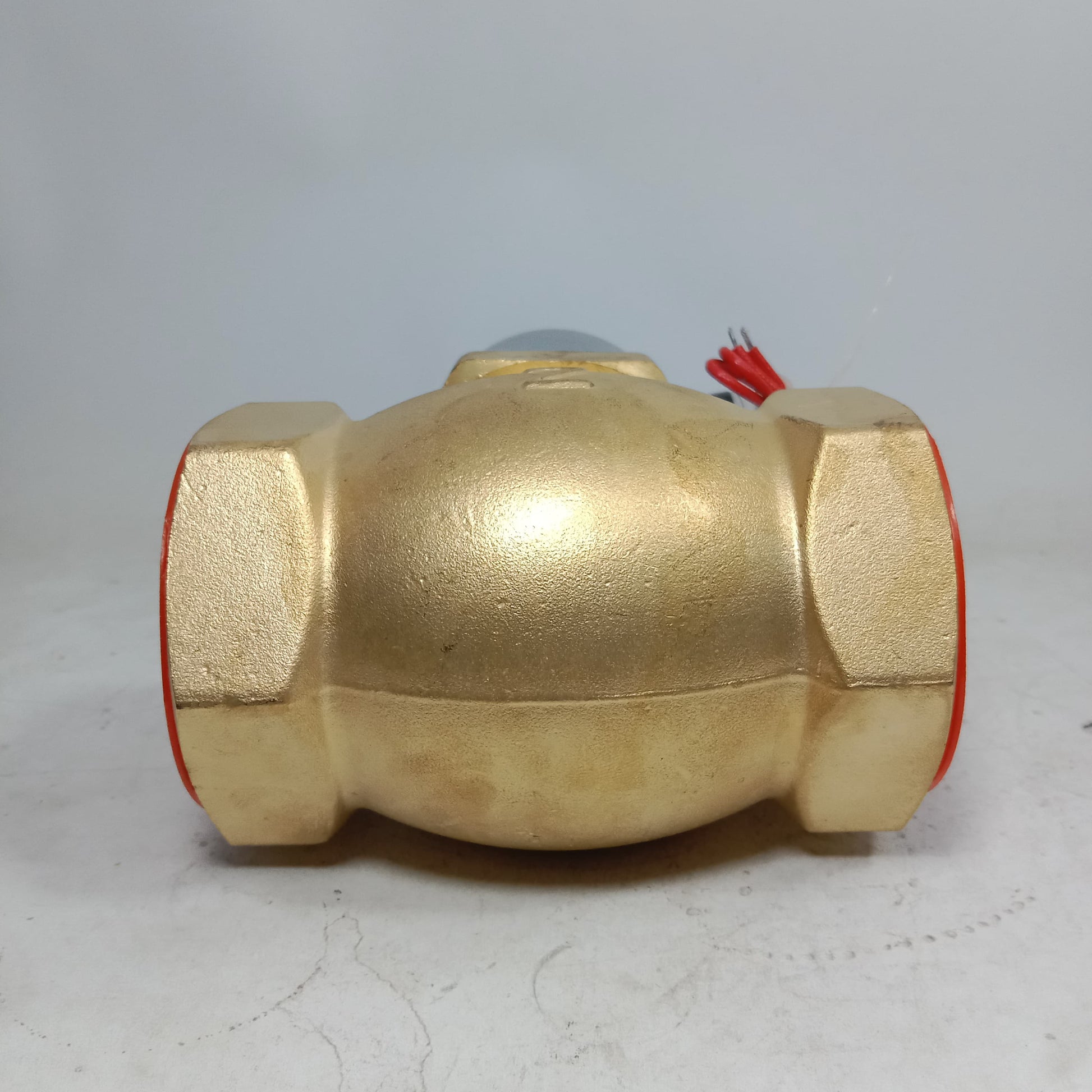

• Body Material: Forged Brass
• Seal Material: NBR (Buna-N) standard; Viton (FKM), Silicone, EPDM, PTFE optional for specific applications.
• Flow Coefficient (Cv): $48\text{ gpm}$ (for UW-50)
• Weight: Approximately $4.32\text{ kg}$ to $4.50\text{ kg}$


Uses:

• Fluid Control Systems: General on/off control of water, air, and light oil in various industrial processes.
• Dispensing Applications: Regulating the flow for filling or emptying tanks.
• Gas Shutoff: Controlling the flow of inert gases.
• Vacuum Holding: Applications requiring the maintenance of a vacuum.
• Tank Draining: Automatically controlling the draining process from tanks or reservoirs.
• Irrigation Systems: Controlling water flow in larger agricultural or landscape irrigation setups.
• Industrial Washing Machines: Managing water supply.
• HVAC Systems: Regulating water or other non-corrosive fluids in heating, ventilation, and air conditioning systems.

Package includes:

• 1x UNi-D (2L)UW-50 Solenoid Valve
