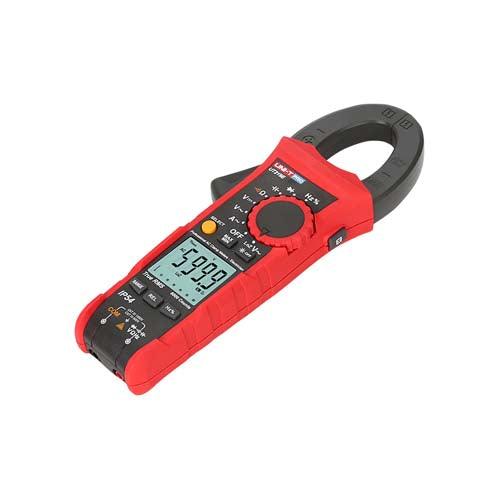

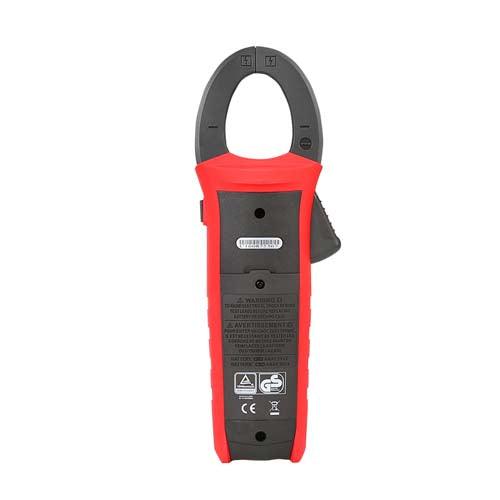

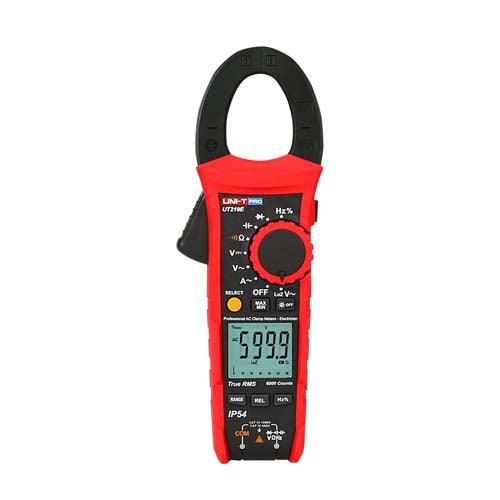

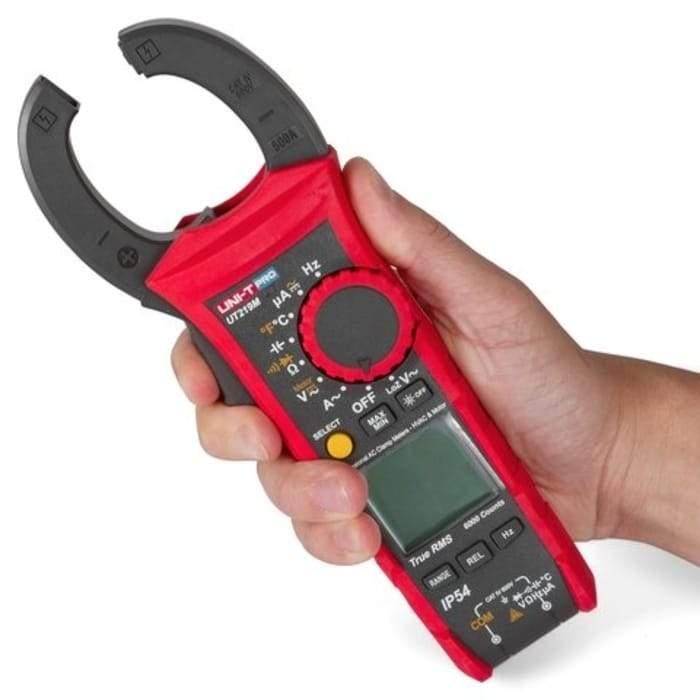

UT219 series is 600A true RMS professional clamp meter with a CAT IV 600V rating from UNI-T. Handheld Digital Clamp Tester UT219M is industrially designed with an IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R, and motor service technicians. .UT219M True RMS Tong tester is used to measure AC/DC Current, Voltage, Resistance, Capacitance, Temperature, and Frequency.UT219M Portable Clamp Multimeter is used to do a 3-phase motor sequence test and a low pass filter test.UNI-T Digital Ampere Meter has a large 6000 count display
Features:
- 2m drop test, IP54, CAT IV 600V
- Large 6000-count display, auto backlight
- True RMS
- 3-phase motor test
- LoZ voltage test to detect ghost voltage
- 2000μA DC measurement for HVAC flame sensor
Specifications:
- Power: 1.5V battery (R03) x 3
- LCD Display: 35mm x 31mm
- Dimension: 234.6mm x 82mm x 47mm
- Color: Red and Grey
- Jaw Capacity: 33mm
- Duty cycle: 0.1%~99.9%
-
DC voltage:
- Range:6V/60V/600V
- Accuracy: ±(0.6%+3)
-
LoZ ACV :
- Range: 600 ±(2.5%+6)
- Accuracy: ±(2.5%+6)
-
AC voltage:
- Range: 6V/60V/600V
- Accuracy: ±(1.2%+6)
-
AC current:
- Range: 600A
- Accuracy: ±(1.8%+6)
-
Resistance:
- Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Accuracy: ±(1%+3)
-
Capacitance:
- Range: 60nF/600nF/6uF/60uF/600uF/6000uF/60mF
- Accuracy: ±(4.0%+7)
-
Frequency:
- Range: 60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/40MHz
- Accuracy: ±(0.1%+5)
-
Temperature(°C):
- Range: -40°C ～ 1000°C
- Accuracy: ±(2%+5℃)
-
Temperature(°F):
- Range: -40°F ～ 1832°F
- Accuracy: ±(2%+9℉)
Package includes:
- 1x Clamp Meter UNI T UT219M
