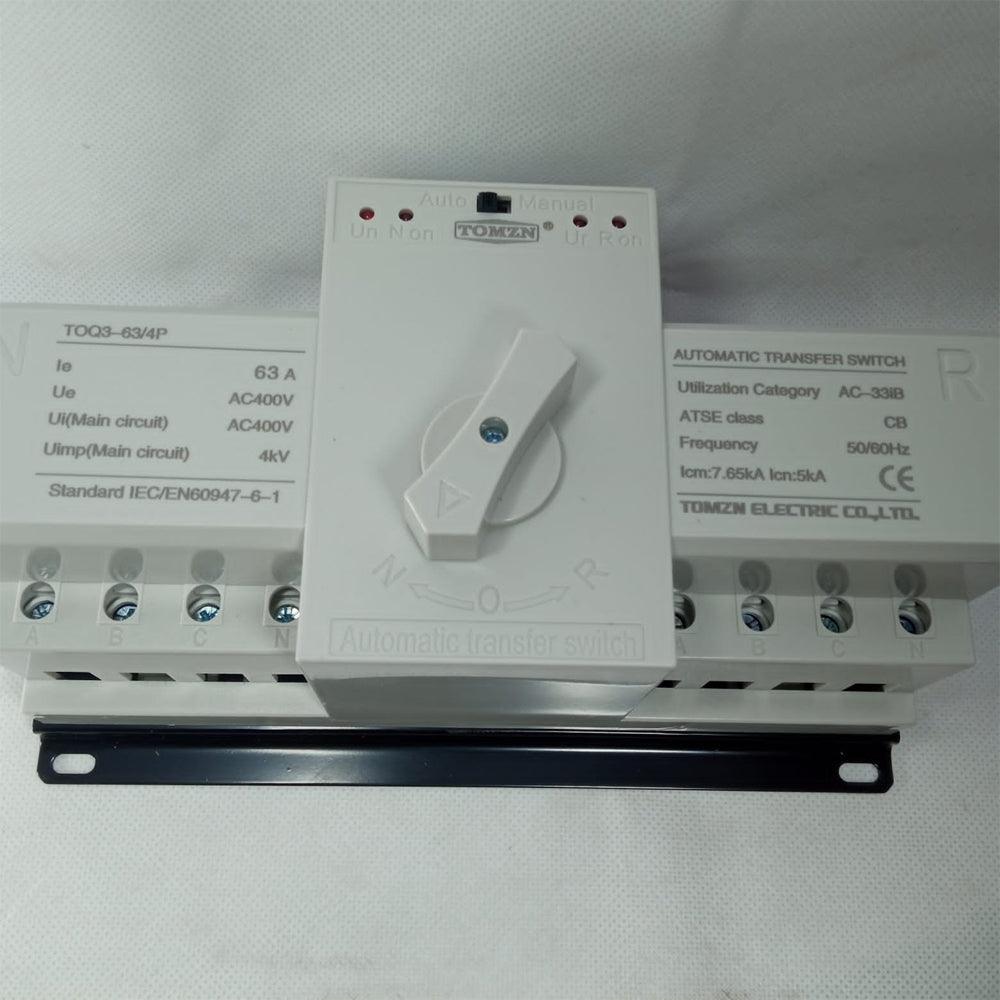

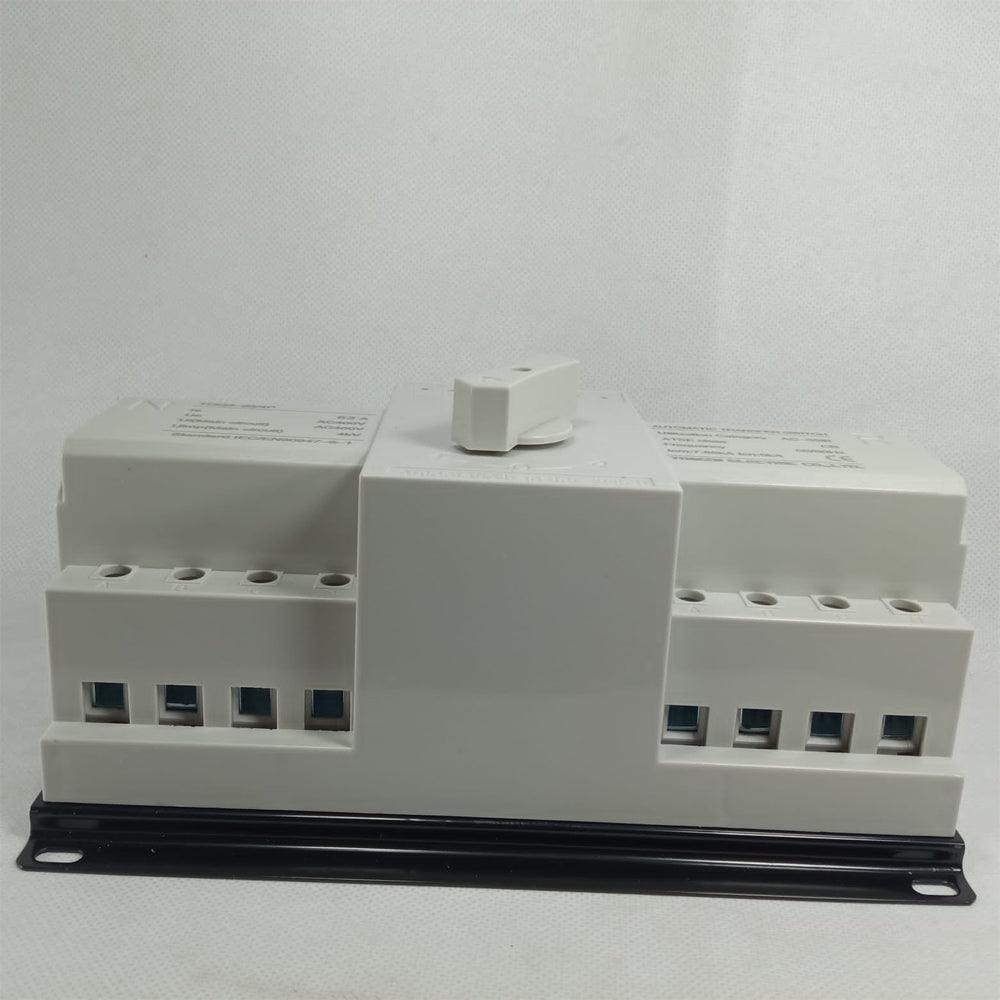

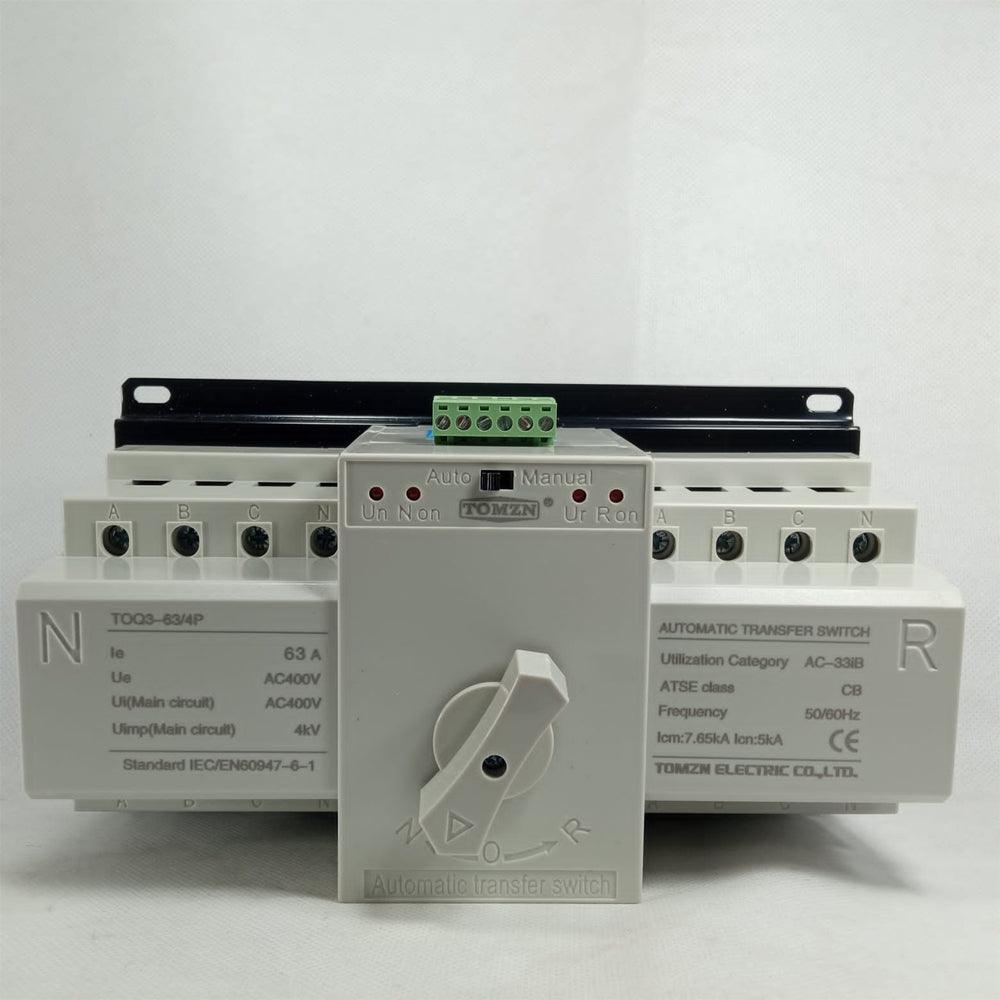

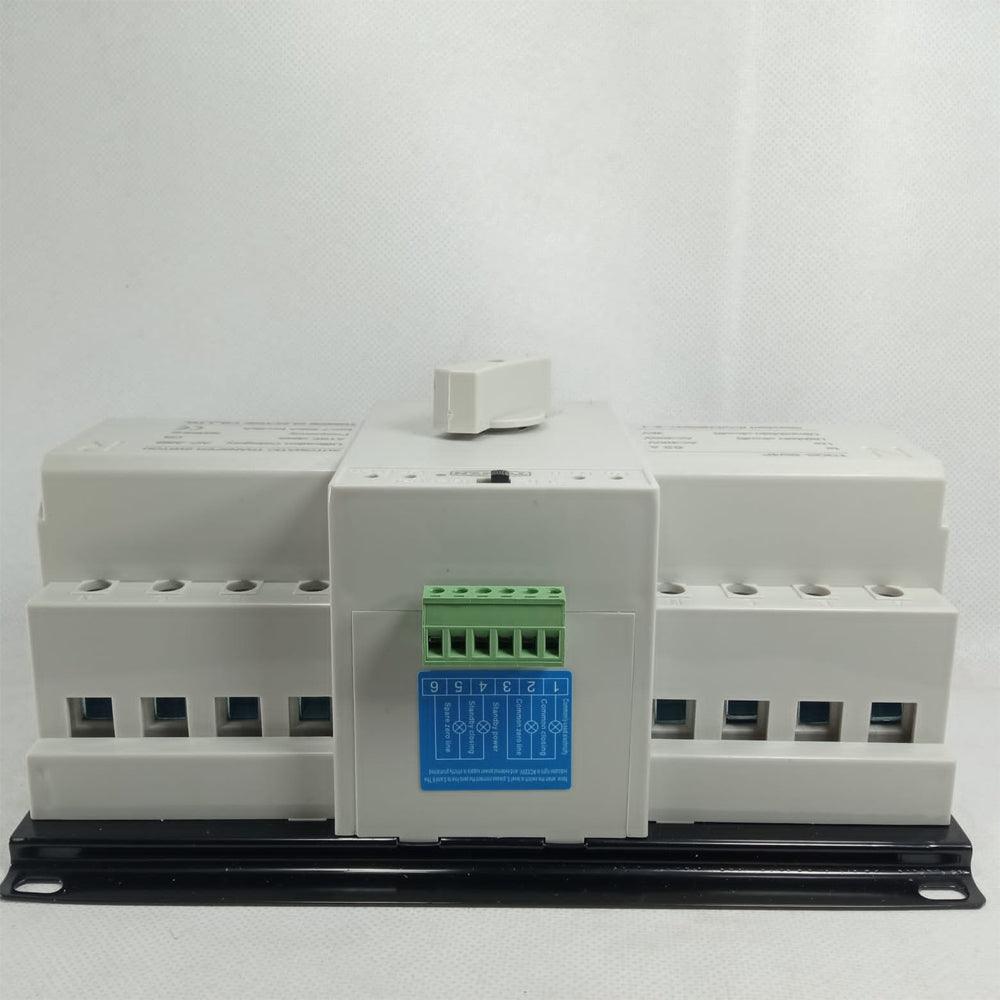

An automatic transfer switch (ATS) is a device that automatically transfers a power supply from its primary source to a backup source when it senses a failure or outage in the primary source.

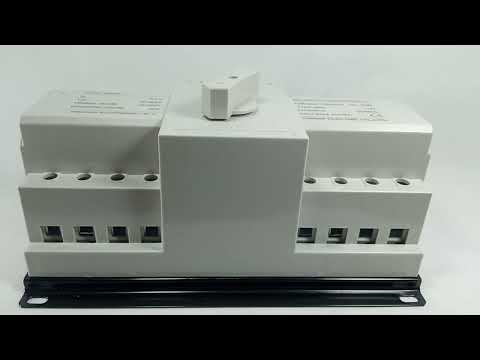

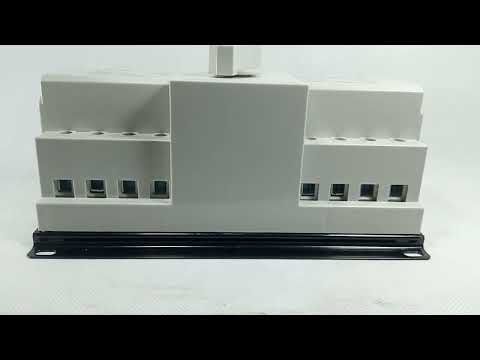

https://youtu.be/99ece-uF_AU
Video for Learning

Features:

1. The TOQ3D device is a terminal-type automatic switching device. It is suitable for the 3-phase 4-wire network with AC 50/60Hz, rated voltage 400V / 230V, and rated current up to 63A.
2. Please note that the switch cannot turn the generator on or off.
3. If the regular power source is restored, the device switches to it if it is in automatic mode.
4. If the main power is off and the backup power is on, the switch switches.
5. If the operation mode switch is set to automatic mode, the switch automatically switches between the typical source and the standby source.
6. If necessary, you can turn on the direction of the power source with the corresponding switch manually.

Specifications:

• Dimensions
• Dimensions of the switching unit (LxWxH) 225x 100 x 100 (mm)
• Properties
• Nominal phase loss time is less than 4 seconds
• Device material Plastic
• Working temperature -20 C ~ +60 C
• Power and power
• Operating voltage 220 V or 380 V alternating voltage 50 / 60Hz
• Maximum load current 63A
• Power consumption in standby mode < 5 W

Industryparts.pk is the Best Online Shopping website for Tomzn TOQ3-63/4P 3-Phase Automatic Reserve input ATS Switch. Here you get Tomzn TOQ3-63/4P 3-Phase Automatic Reserve input ATS Switch at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

         1 x Tomzn TOQ3-63/4P 3-Phase Automatic Reserve input ATS Switch
