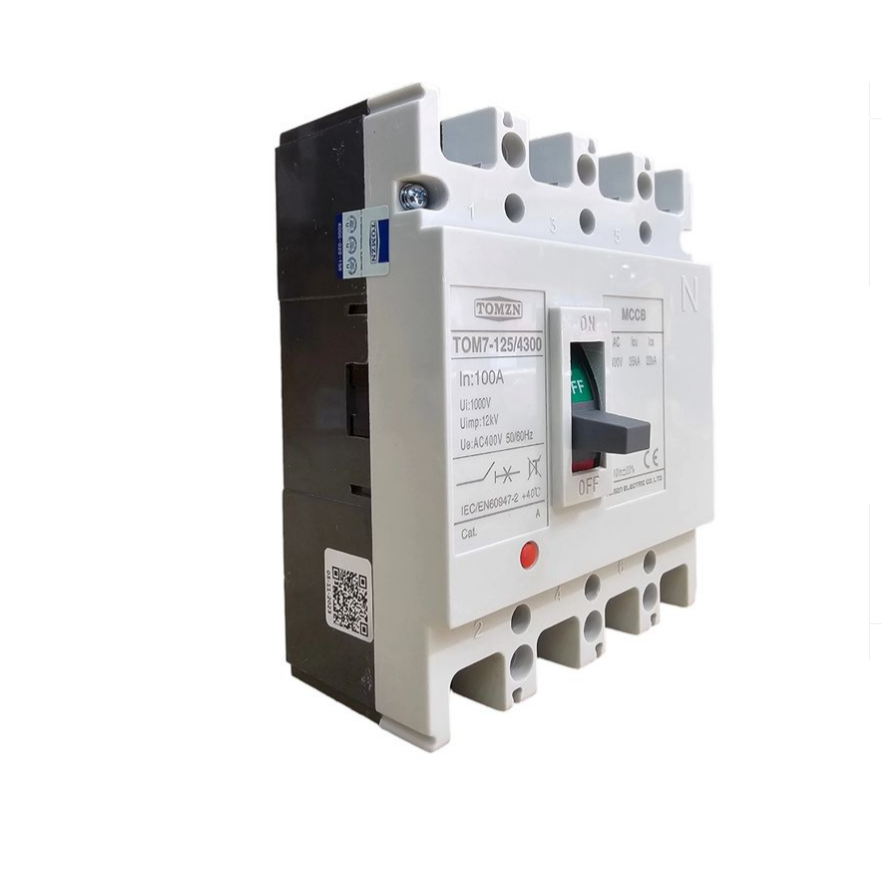

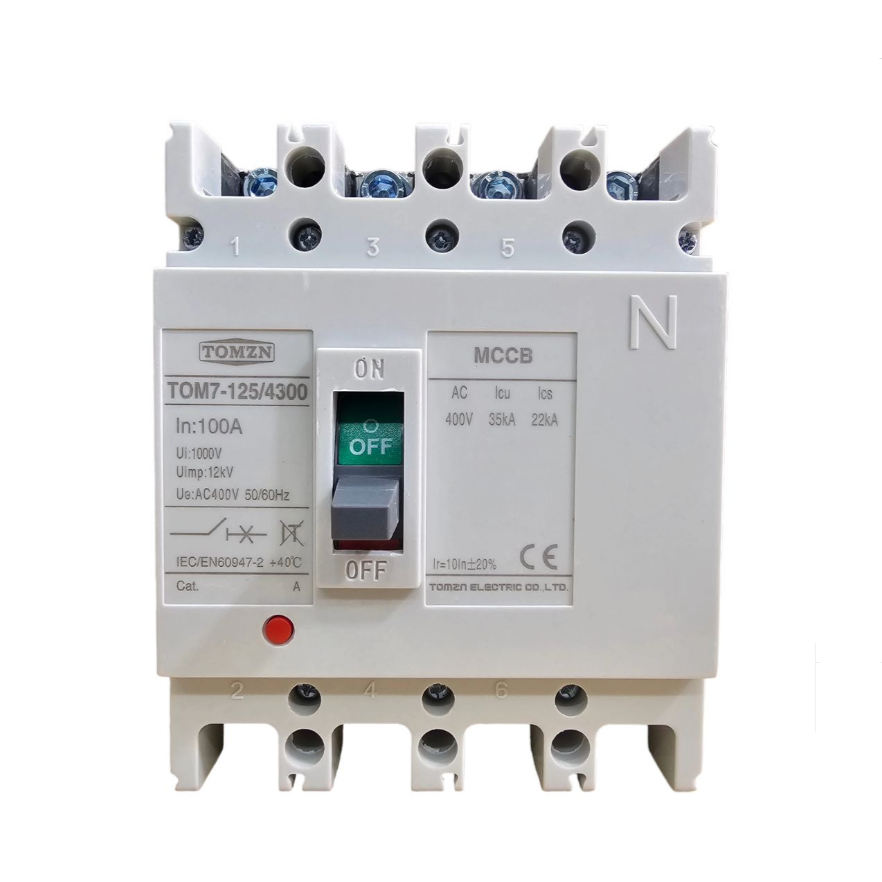

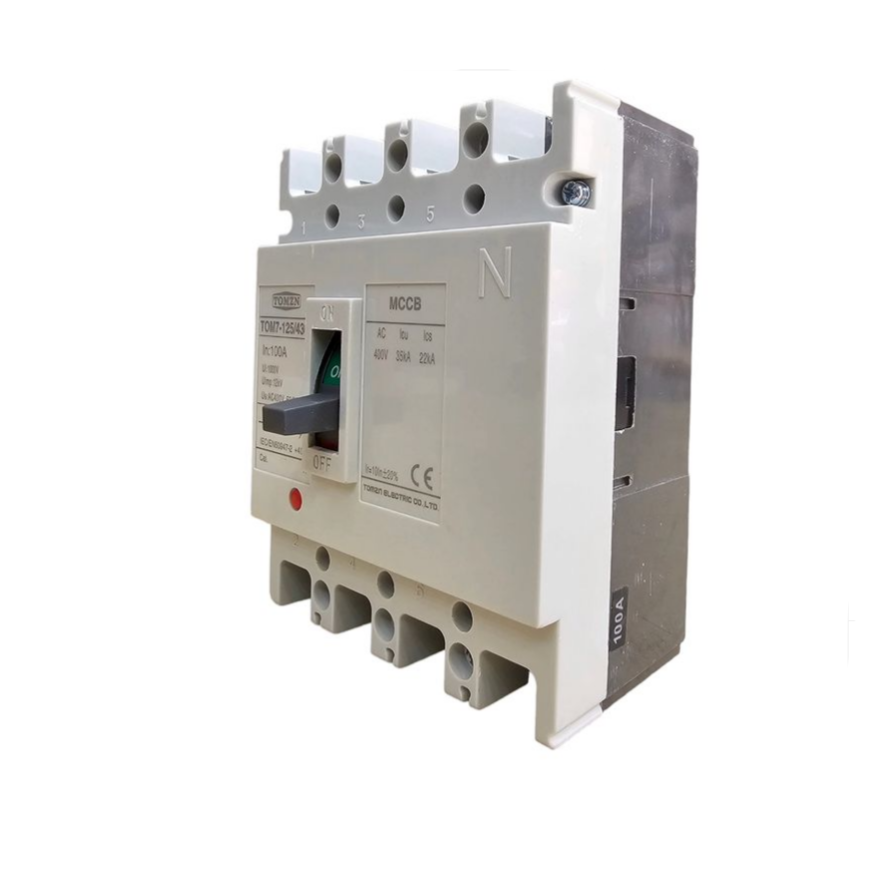

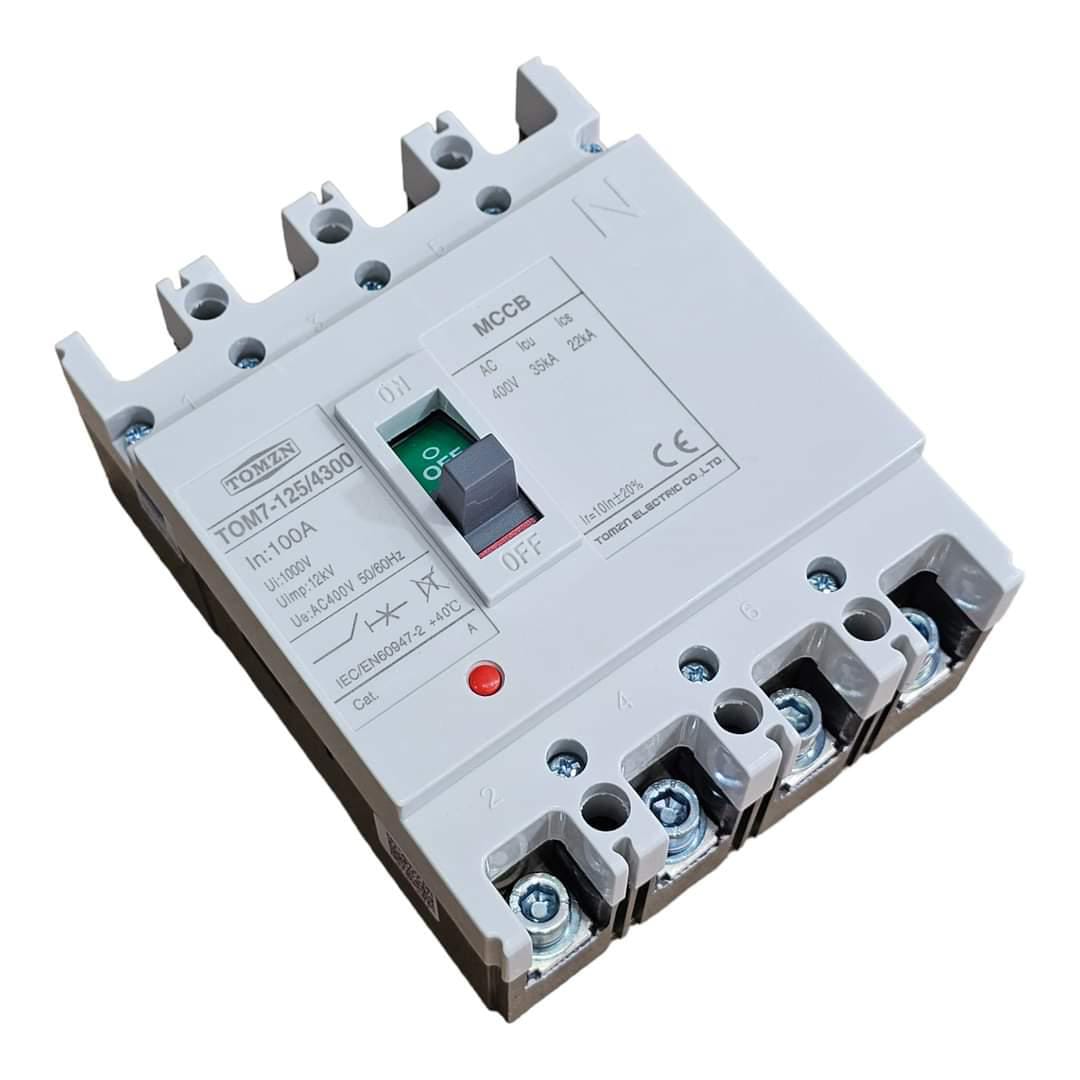

The TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circuit Breaker is a high-quality electrical protection device designed to safeguard electrical circuits against overloads and short circuits. With a current rating of 100A and four poles, this MCCB (Molded Case Circuit Breaker) is suitable for a wide range of industrial and commercial applications. It offers reliable protection and interruption of electrical currents to prevent damage to equipment and ensure the safety of personnel. The TOMZN TOM7-125/4300 MCCB is an essential component for electricians, engineers, and industrial maintenance personnel, providing efficient and effective circuit protection in various electrical systems.
Features of TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circut Breaker:
- Trip rating: 100A
- Number of poles: 4
- AC Rated Voltage: 400V
- Breaking Capacity: 35KA at 400VAC
- Short Circuit withstand: 22KA at 400VAC
- Thermal magnetic trip unit
- DIN rail mountable
- Compact size
- Flame retardant shell
- Finger-proof terminals
Specifications of TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circut Breaker:
- Model: TOMZN TOM7-125/4300
- Rated Voltage: AC 400V 50/60Hz
- Standards: IEC/EN60947-2
- Operating temperature: -5°C to +40°C
- Storage temperature: -25°C to +55°C
- Terminal size: AWG 14-6 Cu/Al
- Weight: Approx. 2.2kg
Dimensions:
- Height: 90mm
- Width: 87mm
- Depth: 75.5mm
Uses:
- Protecting electrical circuits from overload and short circuits in industrial, commercial, and residential applications.
- Suitable for use in motor circuits, generator circuits, solar power systems, wind power systems, and more.
Benefits:
- Reliable and safe circuit protection
- Compact size for easy installation in crowded panels
- High breaking capacity for protection against large fault currents
- Finger-proof terminals for added safety
- Competitively priced
Industryparts.pk is the Online Shopping website for TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circut Breaker. Here you get TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circut Breaker at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
- 1 X TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circuit Breaker
| Size |
100A, 125A, 150A, 200A, 250A, 400A, 630A |
|---|
