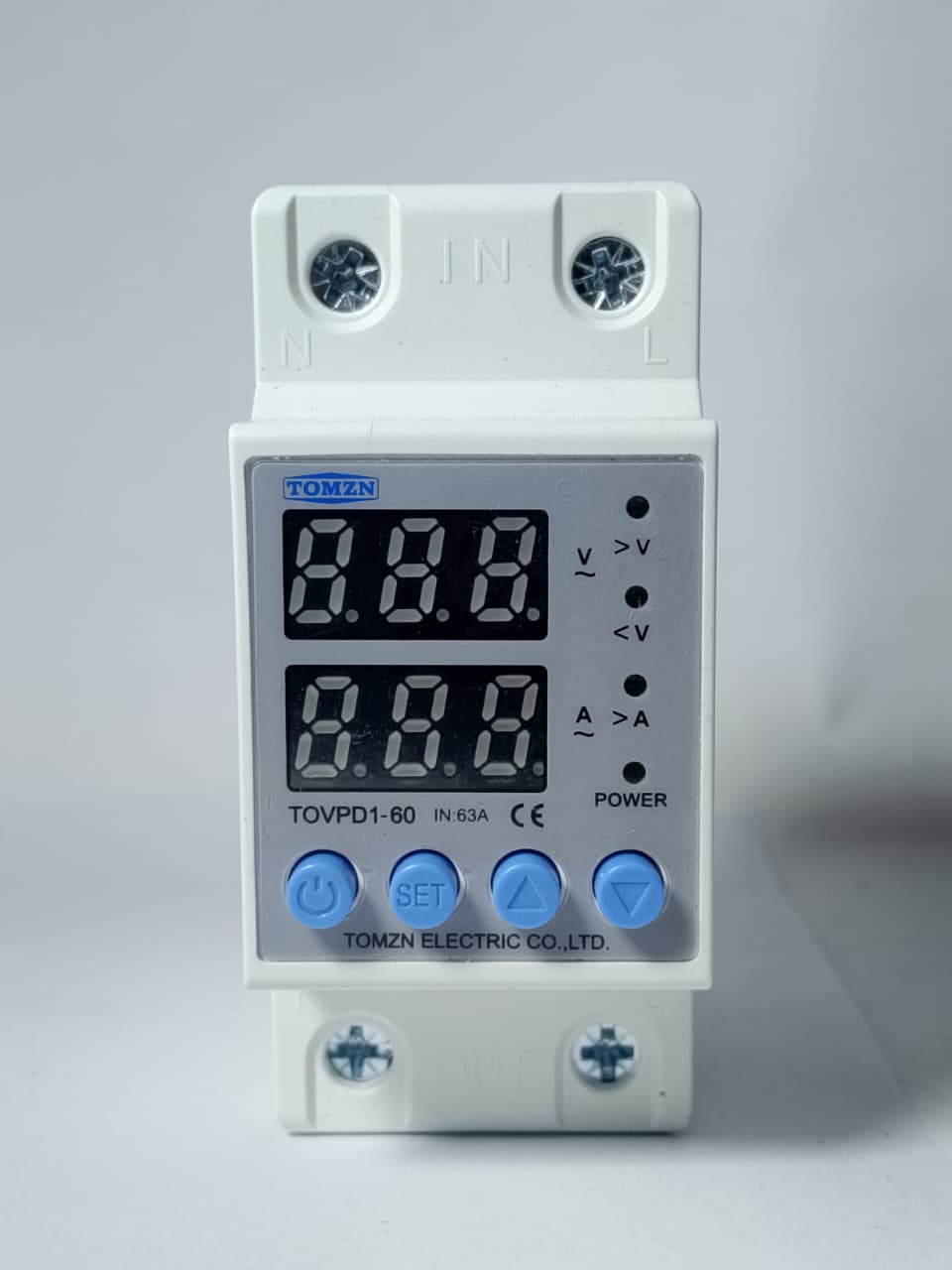

TOMZN Protector Adjustable Over Under Voltage Protective Device TOVPD1-60-EC in Pakistan

Regular price Rs 2,350
Regular price Rs 3,000 Sale price Rs 2,350
Sale Sold out
BR7097-D5
Size

This TOVPD1-60 Adjustable Over And Under Voltage Relay Protective Device is used for saving all electrical and electronics from electrical shocks like over voltages under voltages, and Over currents. Single-phase voltage protection relay can Cut off the power supply instantaneously when the line has over voltage and under voltage current faulty, so as to protect the electrical equipment from being damaged

USER MANUAL PDF

https://youtu.be/KyefIRByJBs

Functions:

  1. Over-voltage protection
  2. Under-voltage protection
  3. Over-current protection
  4. Automatic recovery
  5. Voltage display(voltage measurement)
  6. Current display (current measurement)

Features:

  • Disable the over-voltage protection, and press the up button when reaching 300V
  • Disable the under-voltage protection, and press the down button when reaching 150V
  • The product can memorize the over-voltage, under-voltage, and over-current values when power is off.
  • When V LED flashes, it means over or under-voltage protection
  • When A LED flashes, it means over-current protection.

Specifications:

  • Model number: TOVPD1-60-EC
  • Power supply:230VAC 50/60Hz
  • Max. Loading power:1~40A  Adjustable(default:40A)
  •                                     1~63A  Adjustable(default:63A)
  • Over-voltage protection value range:230V~300~OFF(default:270V)
  •  Over-voltage recovery voltage range:225V–295V(default:250V)
  •  Over-voltage protection action time:0.1s~30s(default value:0.5s)
  •  Over-voltage  recovery delay time:1s~500s(default:30s)
  •   Under-voltage protection value range:140V–210V –OFF(default:170V)
  •  Under-voltage recovery voltage range:145V–215V (default:190V)
  •  Under-voltage protection action time:0.1s~30s(default:0.5s)
  •  Under-voltage recovery delay time:1s~500s(default:30s)
  • Over-current adjustment range:1-40A (default:20A) 1-63A  (default:40A)
  • Over-current action range:0.1~30 second (default:0.5s)
  •  Over-current   recovery delay time:1s~500s(default:30s)
  • Power-on delay time:1s~500s(default:10s)
  • Power consumption: <2W
  • Electric machinery life: 100,000 times
  • Installation:35mm DIN rail


Industryparts.pk is the Best Online Shopping website for Tomzn Adjustable Over Under Voltage Protective Device TOVPD1-60-EC. Here you get Tomzn Adjustable Over Under Voltage Protective Device TOVPD1-60-EC at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

       1 x Tomzn Adjustable Over Under Voltage Protective Device TOVPD1-60-EC
