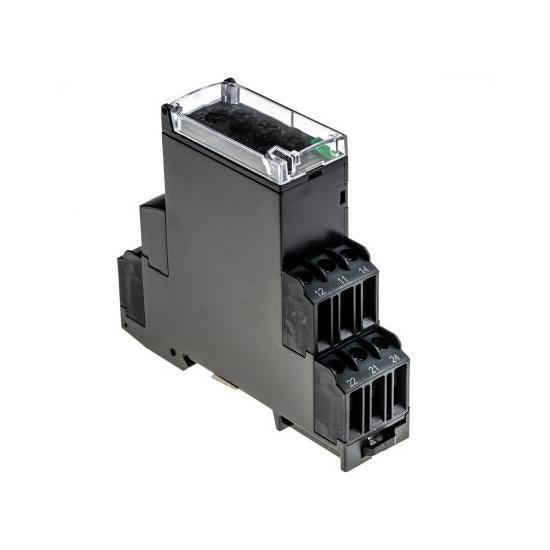

Three-Phase Voltage control relay In Pakistan

2 total reviews

Regular price Rs 0
Regular price Sale price Rs 0
Sale Sold out
BR3168

RM22-TR Three Phase Voltage Control Relay Schneider Electric Zelio RM22T series multifunction three-phase voltage control relays. The RM22T series monitors phase sequence and phase loss. Sealable front cover to help protect settings Diagnostic button for load circuit testing Relay output status LED Fault detection indication LED Dial pointer LED indicator for relay power ON status Relay output On-delay or Off-delay 35 mm DIN Rail mount Schneider Electric Voltage, Current, Phase & Motor Protection

Use of Schneider RM22TR33:

Forming part of the Zelio control range of products, the RM22TR33 control relay has been created and designed to monitor the sequence of phases, phase loss, overvoltage, and under-voltage events. The RM22TR33 is a multifunctional control relay that has a switching capacity of 2000 VA.

Features & Benefits:

    • A sealable cover protects the settings
    • The settings include a diagnostic button for load circuit testing, a relay output status LED, a fault detection indication LED, a dial pointer LED indicator for relay power ON status, and a relay output ON-delay or OFF-delay
    • Features a time delay type that is adjustable 0.1...30 s, +/- 10 % of the full-scale value on crossing the threshold Tt
    • 35 mm DIN Rail mount
  • Has a measurement range of 380...480 V voltage AC

Typically Applications:

Customers will typically find this phase control relay being used in applications that include:

    • Three-phase motors
    • Moving 3 phase machines and equipment
    • Industrial applications
    • Power management, Automation & Process control
    • Pumps, fans, mining, and conveyors
    • Cranes and escalators
    • Predominantly used in environments that require control of connection for moving equipment
    • Site equipment
    • Agricultural equipment such as refrigerated trucks
  • Control against reverse motor operation (lifting, handling, elevators, and escalators)
Specifications:
  • Monitoring Application Phase, Voltage
  • Supply Voltage 304 → 576 V ac
  • Contact Configuration DPDT
  • Voltage Sensitivity Overvoltage, Undervoltage
  • Electrical Phase 3
  • Voltage Sensing Range 380 → 480 V ac
  • Phase Sensitivity Phase Failure, Phase Sequence
  • Time Delay 0.1 → 30 s
  • Frequency Sensing Range 50 → 60 Hz
  • Minimum Operating Temperature -20°C
  • Current Range 10 mA at 5 V DC → 8 A AC
  • Minimum Voltage Sensed 380 V ac
  • Number of Poles 2
  • Dimensions 22.9 x 79.5 x 90 mm
  • Maximum Operating Temperature +60°C
  • Height 90mm
  • Maximum Voltage Sensed 480V ac
  • Mounting Type DIN-Rail
  • Terminal Type Screw
  • Operating Temperature Range -20 → +60 °C
  • Width 79.5mm
  • Series RM22TR
  • Length 22.9mm
Package includes:

1 x Three-Phase Voltage control relay 380…480Vac


Industryparts.pk is an Online Shopping website for a Three-Phase Voltage control relay 380…480Vac, 2 C/O. Here you get a Three-Phase Voltage control relay 380…480Vac, 2 C/O at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Description

RM22-TR Three Phase Voltage Control Relay Schneider Electric Zelio RM22T series multifunction three-phase voltage control relays. The RM22T series monitors phase sequence and phase loss. Sealable front cover to help protect settings Diagnostic button for load circuit testing Relay output status LED Fault detection indication LED Dial pointer LED indicator for relay power ON status Relay output On-delay or Off-delay 35 mm DIN Rail mount Schneider Electric Voltage, Current, Phase & Motor Protection

Use of Schneider RM22TR33:

Forming part of the Zelio control range of products, the RM22TR33 control relay has been created and designed to monitor the sequence of phases, phase loss, overvoltage, and under-voltage events. The RM22TR33 is a multifunctional control relay that has a switching capacity of 2000 VA.

Features & Benefits:

    • A sealable cover protects the settings
    • The settings include a diagnostic button for load circuit testing, a relay output status LED, a fault detection indication LED, a dial pointer LED indicator for relay power ON status, and a relay output ON-delay or OFF-delay
    • Features a time delay type that is adjustable 0.1...30 s, +/- 10 % of the full-scale value on crossing the threshold Tt
    • 35 mm DIN Rail mount
  • Has a measurement range of 380...480 V voltage AC

Typically Applications:

Customers will typically find this phase control relay being used in applications that include:

    • Three-phase motors
    • Moving 3 phase machines and equipment
    • Industrial applications
    • Power management, Automation & Process control
    • Pumps, fans, mining, and conveyors
    • Cranes and escalators
    • Predominantly used in environments that require control of connection for moving equipment
    • Site equipment
    • Agricultural equipment such as refrigerated trucks
  • Control against reverse motor operation (lifting, handling, elevators, and escalators)
Specifications:
  • Monitoring Application Phase, Voltage
  • Supply Voltage 304 → 576 V ac
  • Contact Configuration DPDT
  • Voltage Sensitivity Overvoltage, Undervoltage
  • Electrical Phase 3
  • Voltage Sensing Range 380 → 480 V ac
  • Phase Sensitivity Phase Failure, Phase Sequence
  • Time Delay 0.1 → 30 s
  • Frequency Sensing Range 50 → 60 Hz
  • Minimum Operating Temperature -20°C
  • Current Range 10 mA at 5 V DC → 8 A AC
  • Minimum Voltage Sensed 380 V ac
  • Number of Poles 2
  • Dimensions 22.9 x 79.5 x 90 mm
  • Maximum Operating Temperature +60°C
  • Height 90mm
  • Maximum Voltage Sensed 480V ac
  • Mounting Type DIN-Rail
  • Terminal Type Screw
  • Operating Temperature Range -20 → +60 °C
  • Width 79.5mm
  • Series RM22TR
  • Length 22.9mm
Package includes:

1 x Three-Phase Voltage control relay 380…480Vac


Industryparts.pk is an Online Shopping website for a Three-Phase Voltage control relay 380…480Vac, 2 C/O. Here you get a Three-Phase Voltage control relay 380…480Vac, 2 C/O at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
