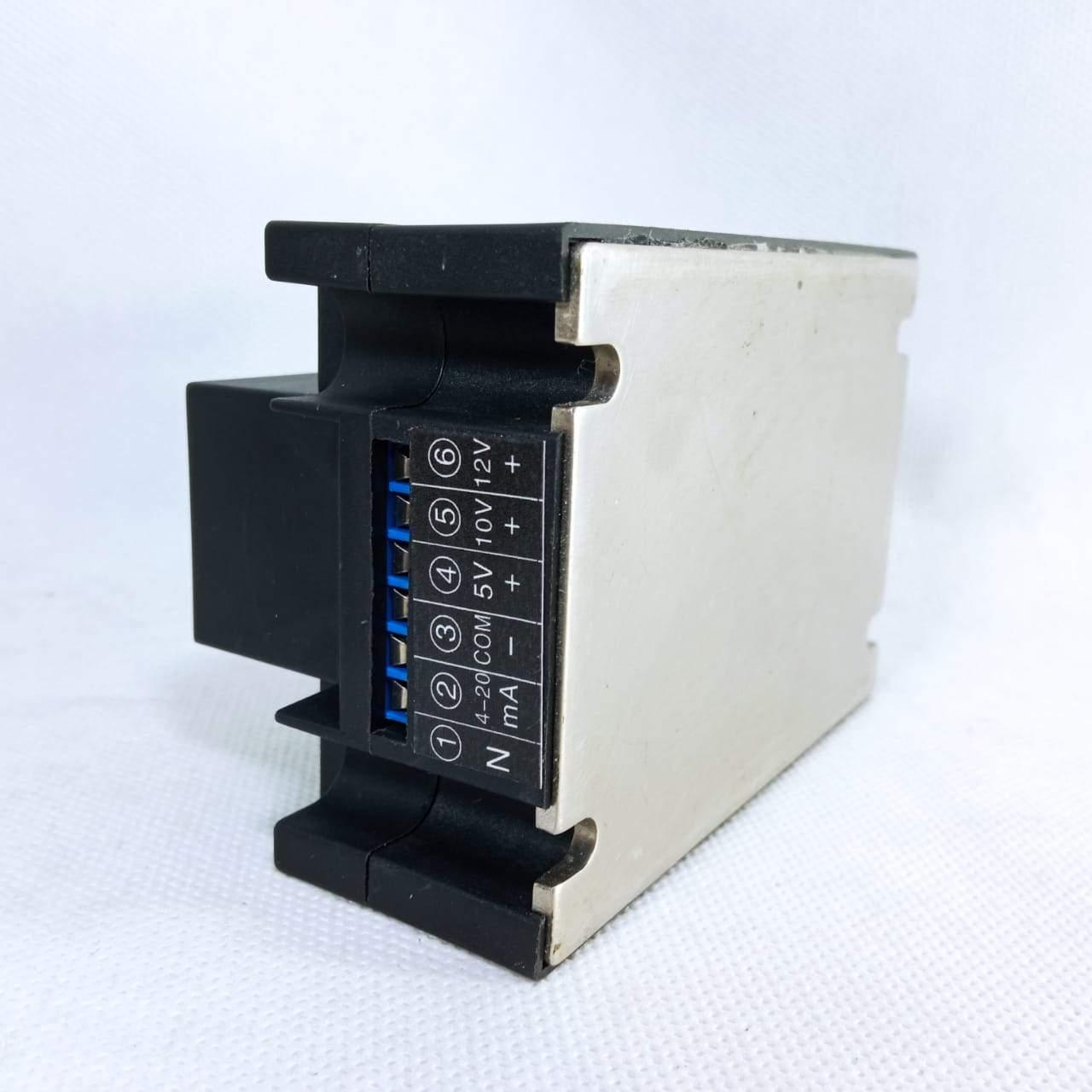

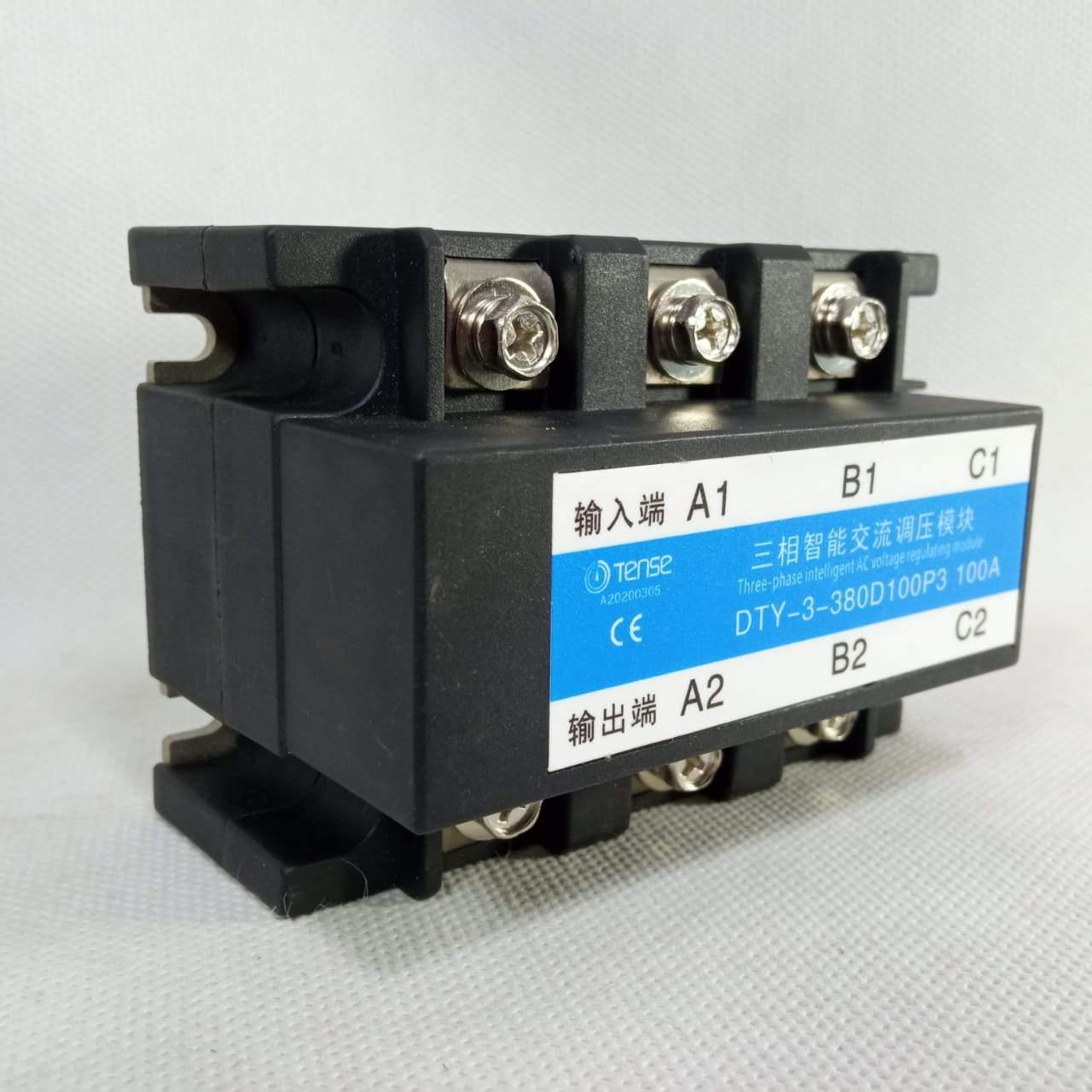

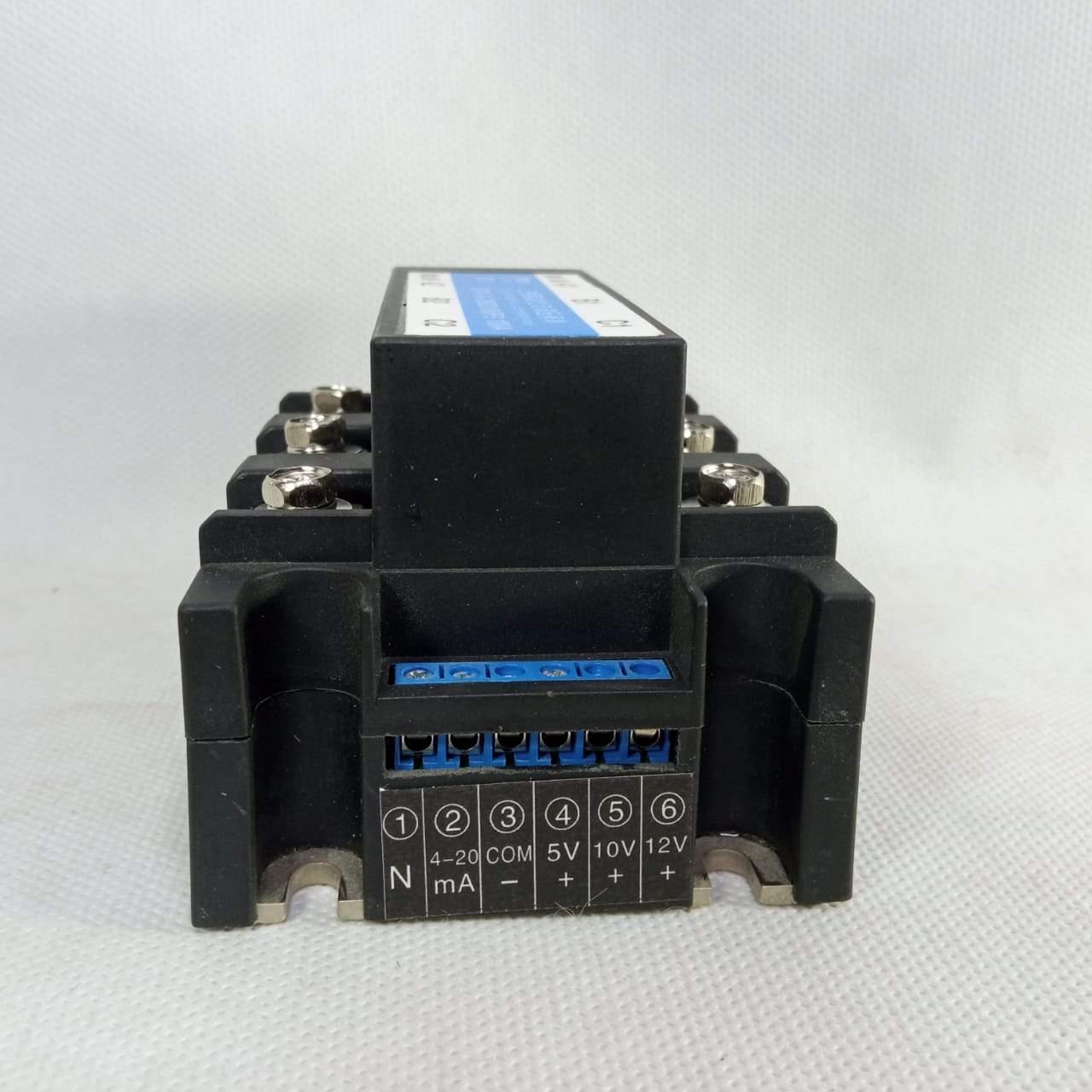

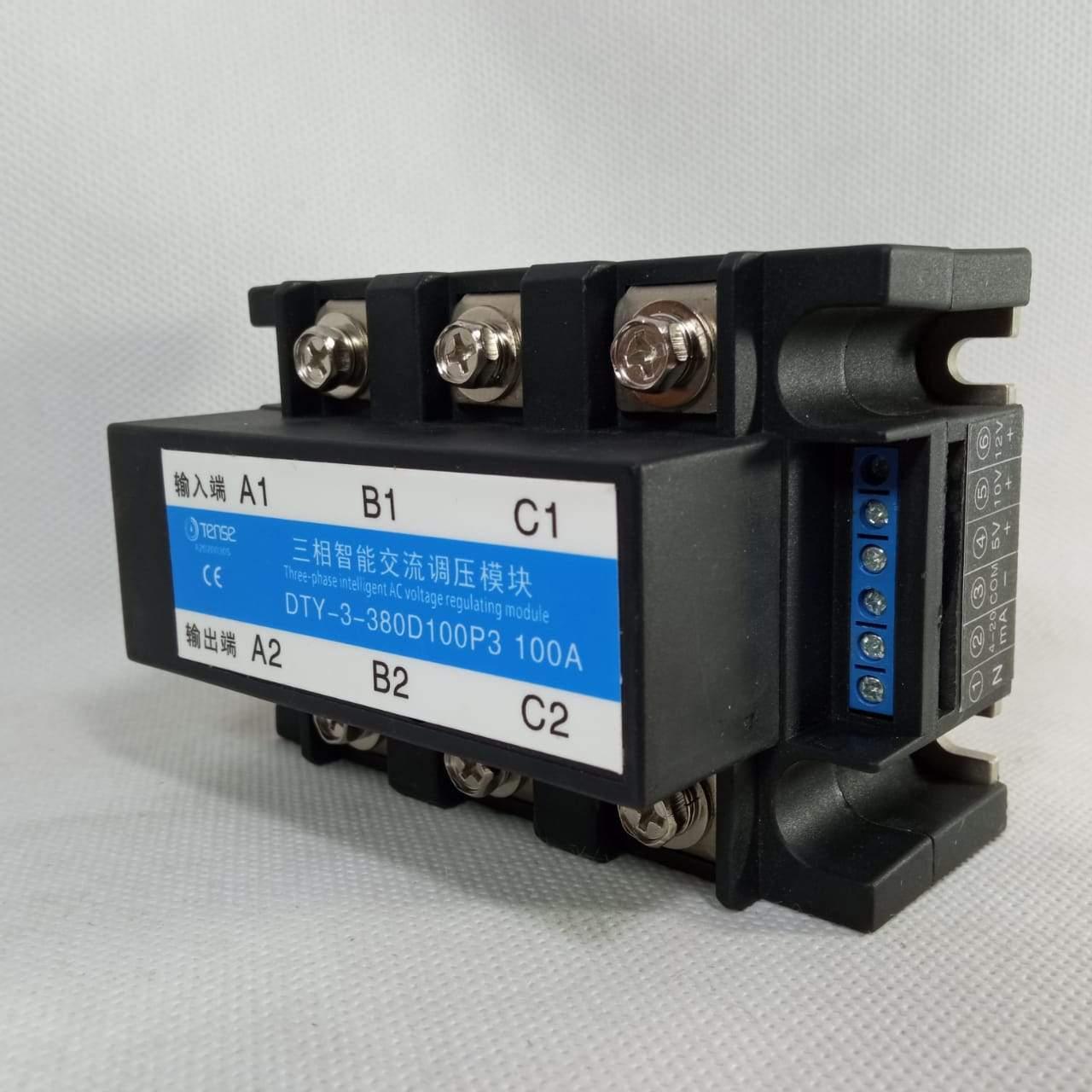

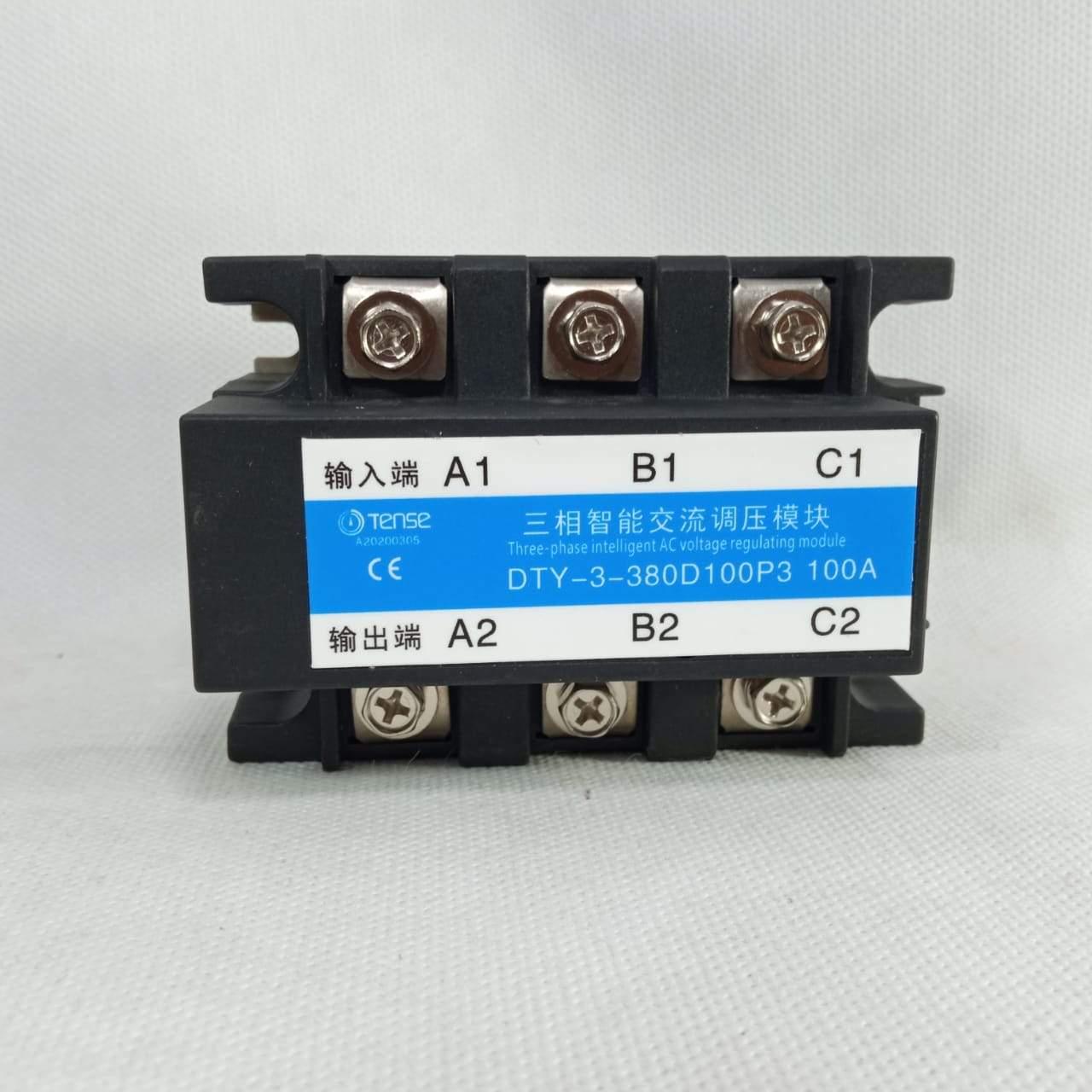

Three Phase Intelligent AC Voltage Regulating Module DTY-3-380D100P3 in Pakistan

SKU:BR9100A

Regular price Rs 25,000
Regular price Rs 25,500 Sale price Rs 25,000
Sale Sold out
Ampere

AC Voltage Regulators. The ac voltage regulator is a static circuit that accepts a variable ac voltage input and produces a regulated ac voltage output. The output voltage is maintained for changes in input voltage, output loads current, and load power factor.

Features:

  1. No external synchronous transformer is required, and no external input 12V DC power supply is required. It is very easy to use.
  2. fully support 4-20mA, 0-5Vdc, 0-10Vdc, 1-5Vdc, O-10mA, and other input automatic control modes can also be manually controlled. The input adjustment range is wide, the output adjustment precision is high, the three-phase symmetry is good, and the anti-interference ability is strong.
  3. There is a phase loss protection function. When the module is out of phase due to three-phase electrical input or the voltage is unstable, the module will immediately turn off the three-phase output to avoid load damage, so as to avoid production loss.
  4. there is an overheat protection function, when the module is due to poor heat dissipation, the bottom plate temperature exceeds 75 degrees, and immediately turn off the thyristor output to avoid module damage.
  5. The module adopts the original single-chip linear compensation circuit, and the output characteristic curve is close to the ideal straight line when the resistive load is connected. The input control has a wider adjustment range, a finer signal resolution, and a higher output voltage regulation accuracy.

Specifications:

  • OriginCN(Origin)
  • Condition: New
  • Type: Logic ICS

Package Includes:

1 x Three Phase Intelligent AC Voltage Regulating Module DTY-3-380D100P3 100A

Industryparts.pk is the Best Online Shopping website for Three Phase Intelligent AC Voltage Regulating Module DTY-3-380D100P3 100A. Here you get Three Phase Intelligent AC Voltage Regulating Module DTY-3-380D100P3 100A at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

View full details

Description

AC Voltage Regulators. The ac voltage regulator is a static circuit that accepts a variable ac voltage input and produces a regulated ac voltage output. The output voltage is maintained for changes in input voltage, output loads current, and load power factor.

Features:

  1. No external synchronous transformer is required, and no external input 12V DC power supply is required. It is very easy to use.
  2. fully support 4-20mA, 0-5Vdc, 0-10Vdc, 1-5Vdc, O-10mA, and other input automatic control modes can also be manually controlled. The input adjustment range is wide, the output adjustment precision is high, the three-phase symmetry is good, and the anti-interference ability is strong.
  3. There is a phase loss protection function. When the module is out of phase due to three-phase electrical input or the voltage is unstable, the module will immediately turn off the three-phase output to avoid load damage, so as to avoid production loss.
  4. there is an overheat protection function, when the module is due to poor heat dissipation, the bottom plate temperature exceeds 75 degrees, and immediately turn off the thyristor output to avoid module damage.
  5. The module adopts the original single-chip linear compensation circuit, and the output characteristic curve is close to the ideal straight line when the resistive load is connected. The input control has a wider adjustment range, a finer signal resolution, and a higher output voltage regulation accuracy.

Specifications:

  • OriginCN(Origin)
  • Condition: New
  • Type: Logic ICS

Package Includes:

1 x Three Phase Intelligent AC Voltage Regulating Module DTY-3-380D100P3 100A

Industryparts.pk is the Best Online Shopping website for Three Phase Intelligent AC Voltage Regulating Module DTY-3-380D100P3 100A. Here you get Three Phase Intelligent AC Voltage Regulating Module DTY-3-380D100P3 100A at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
